1. Įvadas
Thank you for choosing the KERDOM Electric Wheelchair. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new electric wheelchair. Please read this manual thoroughly before using the product to ensure proper function and safety.

Figure 1: KERDOM Electric Wheelchair (Orange-15 Miles Range)
The KERDOM Electric Wheelchair is designed for adults and seniors, offering mobility with its foldable, motorized design. It features a robust dual-motor system, a travel range of up to 15 miles, and a weight capacity of 350 lbs, suitable for various terrains.
2. Saugos informacija
Jūsų saugumas yra svarbiausias. Visada laikykitės šių saugos nurodymų:
- Elektromagnetiniai stabdžiai: The wheelchair is equipped with electromagnetic brakes that provide reliable stopping power, even on inclines. Always ensure the brakes are functioning correctly before use.
- Anti-Tip Wheels: Integrated anti-tip wheels reduce the risk of tipping, especially on uneven surfaces or when navigating inclines.
- Saugos diržas: Always fasten the safety belt securely before operating the wheelchair to ensure you remain safely seated.
- Šlaito veikimas: The wheelchair can handle slopes up to 12 degrees. Exercise caution on steeper inclines.
- Aplinkosauginis sąmoningumas: Be aware of your surroundings. Avoid operating the wheelchair in heavy rain, snow, or extreme temperatures.

Figure 2: Safety Features (Intelligent Joystick, Brake, Anti-skid Wheel, Seat Belt)
3. Sąranka ir surinkimas
The KERDOM Electric Wheelchair is designed for quick setup and portability.
3.1 Neįgaliojo vežimėlio išskleidimas
- Sulankstytą neįgaliojo vežimėlį pastatykite ant lygaus, stabilaus paviršiaus.
- Gently pull the backrest upwards until it locks into place.
- Push down on the seat frame until it is fully extended and flat.
- Prieš naudodami įsitikinkite, kad visi fiksavimo mechanizmai yra įjungti.
3.2 Folding the Wheelchair for Transport/Storage
To fold the wheelchair, reverse the unfolding steps:
- Ensure the wheelchair is powered off.
- Lift the seat from the center to initiate the folding action.
- Push the backrest forward until the wheelchair is fully collapsed.
- Secure any straps or latches if present to keep it folded.

Figure 3: Quickly Foldable Design for Easy Transport and Storage

4 pav.: Gaminio matmenys ir keliamoji galia
4. Naudojimo instrukcijos
The KERDOM Electric Wheelchair offers intuitive control for a smooth user experience.
4.1 Įjungimas / išjungimas
- To power on, press the 'Wheelchair power start switch' on the joystick.
- To power off, press and hold the 'Wheelchair power start switch' until the unit shuts down.
4.2 Vairasvirtės valdymas
The 360-degree intelligent joystick allows for flexible and precise maneuvering. It can be mounted on either the left or right side to suit user preference.
- Judėjimas: Gently push the control lever in the desired direction (forward, backward, left, right).
- Sustojimas: Release the control lever, and the electromagnetic brakes will automatically engage, bringing the wheelchair to a stop.
4.3 Joystick Functions

Figure 5: 360° Flexible Control Joystick Functions
- Wheelchair Power Start Switch: Įjungia / išjungia įrenginį.
- Deceleration Adjustment Switch: Decreases the wheelchair's speed.
- Nutildymo jungiklis: Mutes audible alerts.
- Baterijos lygio rodymas: Rodo dabartinį akumuliatoriaus įkrovą.
- Ragas: Suaktyvina ragą.
- Greitis: Displays current speed setting.
- Acceleration Adjustment Switch: Increases the wheelchair's speed.
- SOS: Emergency alert button.
- Valdymo svirtis: For directional movement.
4.4 Travel Range and Terrain
The wheelchair is equipped with two 12AH lead-acid batteries, providing a travel range of up to 15 miles on a single charge. It is designed to handle various terrains, including meadows, cobbled roads, unpaved roads, speed bumps, and snowy roads.

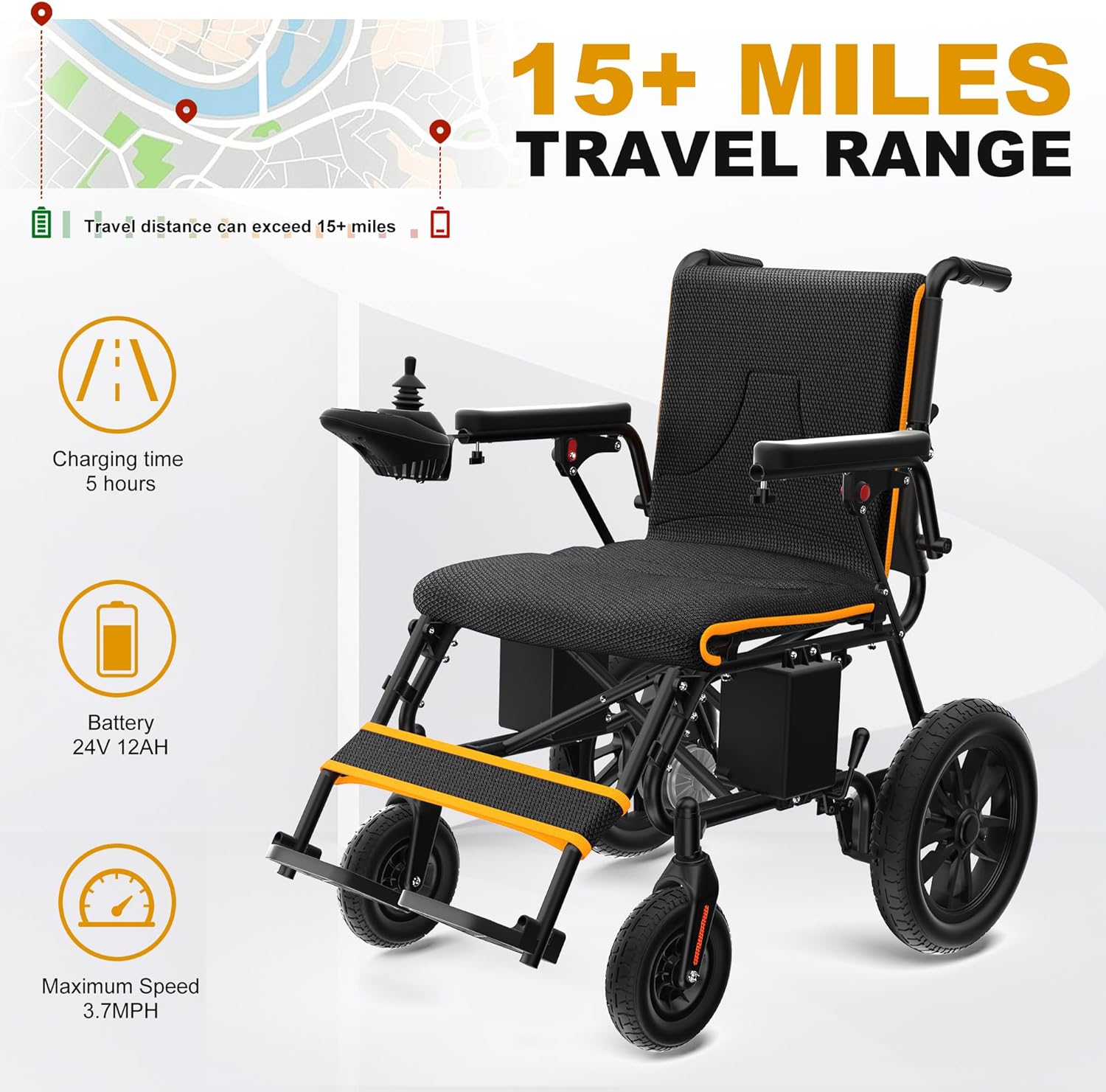

Figure 6: Travel Range and Battery Information

Figure 7: All-Terrain Capability
5. Priežiūra
Regular maintenance ensures the longevity and optimal performance of your KERDOM Electric Wheelchair.
5.1 Valymas
- Nuvalykite rėmą ir sėdynę reklamine priemoneamp audinys. Nenaudokite abrazyvinių valiklių ar tirpiklių.
- Keep the joystick and electrical components dry.
5.2 Akumuliatoriaus priežiūra
- Charge the batteries fully after each use.
- Visiškas įkrovimas paprastai trunka 5 valandas.
- Do not allow batteries to fully discharge for extended periods.
- Store the wheelchair in a cool, dry place if not in use for a long time, and ensure batteries are charged periodically.
5.3 Padangų patikra
- Regularly check tires for wear and tear.
- Ensure tires are free from punctures or damage.
6. Problemų sprendimas
Šiame skyriuje aptariamos dažniausiai pasitaikančios problemos, su kuriomis galite susidurti.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Neįgaliojo vežimėlis neįsijungia. | Baterija išsikrovusi arba neprijungta. | Check battery connection and charge the battery fully. |
| Wheelchair moves slowly or erratically. | Low battery, speed setting too low, or motor issue. | Charge battery, adjust speed setting on joystick. If problem persists, contact support. |
| Stabdžiai netinkamai įsijungia. | Obstruction or electrical issue. | Ensure no obstructions around wheels. If issue continues, contact support immediately. |
If you encounter an issue not listed here or if the suggested solutions do not resolve the problem, please contact customer support.
7. Specifikacijos
Key specifications for the KERDOM Electric Wheelchair, Model Orange-15 Miles Range:
- Prekinis ženklas: KERDOM
- Modelis: Orange-15 Miles Range
- Gaminio matmenys (išskleisto): 36.19 "D x 24.8" P x 33.4" A
- Medžiaga: High hardness steel (Frame), Iron
- Svorio talpa: 350 svaro
- Baterija: Two 12AH Lead-Acid Batteries (24V)
- Kelionės diapazonas: Iki 15 mylių
- Įkrovimo laikas: Maždaug 5 val
- Maksimalus greitis: 3.7 mylių per valandą
- Climbing Gradient: 12 laipsnių
8. Garantija ir palaikymas
KERDOM offers comprehensive after-sales protection for your peace of mind. If you encounter any issues after purchasing your power wheelchair, please do not hesitate to contact us at any time.
- Our dedicated after-sales team aims to respond within 12 hours.
- We are committed to providing prompt assistance to resolve your concerns.
For support, please refer to the contact information provided with your purchase documentation or visit the official KERDOM websvetainę.
