ANDELI MIG-145 AIR 4-in-1 Multiprocess Welder Instruction Manual

1. Produktas baigtasview

The ANDELI MIG-145 AIR is a versatile 145Amp 4-in-1 multiprocess welder designed for various welding tasks. It supports 110V/220V dual voltage input, making it suitable for both home DIY projects and professional applications. This machine integrates Gas MIG, Gasless MIG (Flux Core), Lift TIG, and MMA (Stick) welding capabilities. It features an intuitive LED digital display and IGBT inverter technology for stable performance and precise control.

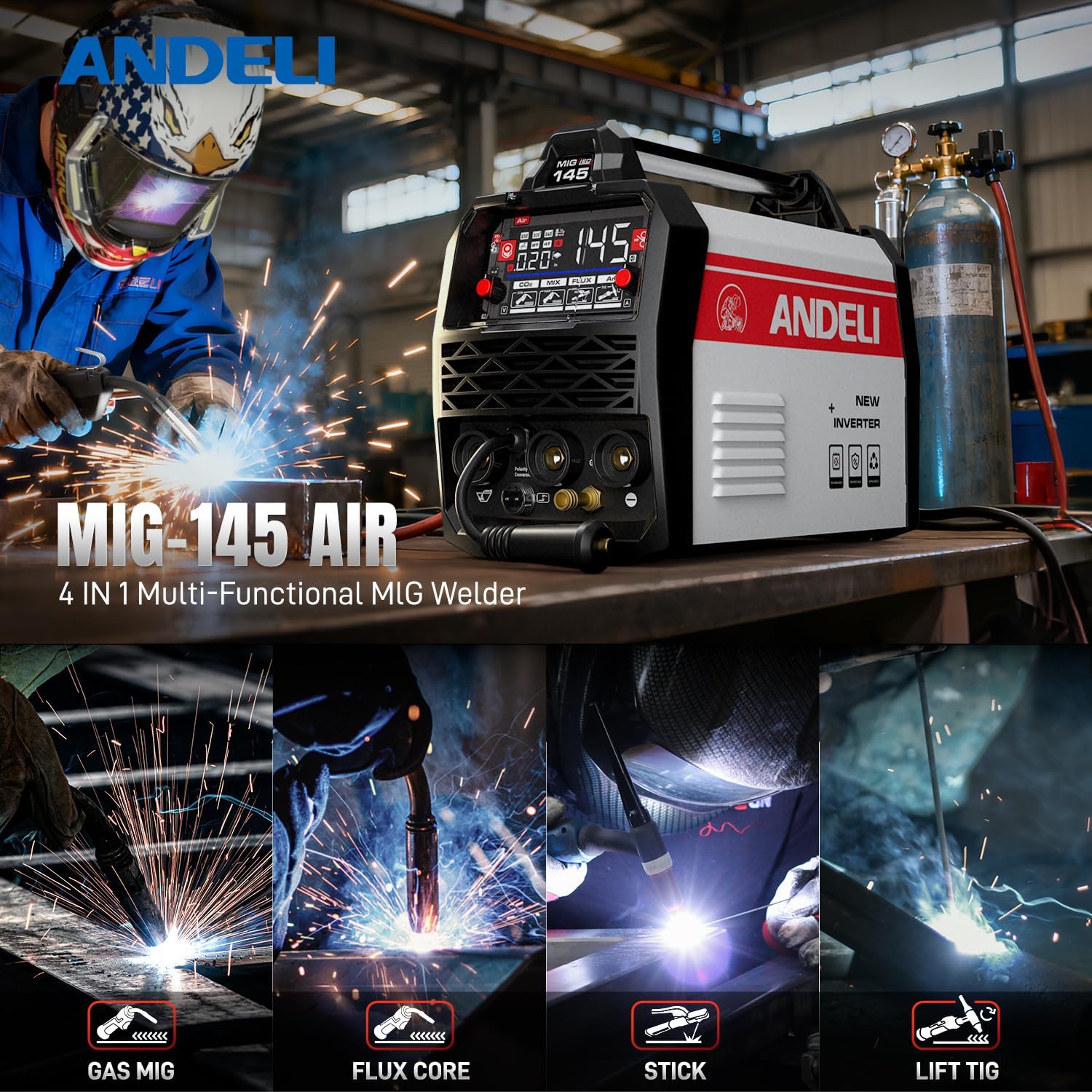

Image: The ANDELI MIG-145 AIR welder, showcasing its four primary welding functions: Gas MIG, Flux Core, Stick, and Lift TIG.

2. Saugos informacija

Always prioritize safety when operating welding equipment. Read and understand all safety warnings and instructions before use. Failure to follow safety guidelines can result in serious injury or death.

• Wear appropriate Personal Protective Equipment (PPE), including a welding helmet with proper shade, welding gloves, protective clothing, and safety shoes.
• Užtikrinkite tinkamą vėdinimą, kad neįkvėptumėte suvirinimo dūmų.
• Keep a fire extinguisher nearby and be aware of fire hazards in the work area.
• Nenaudokite suvirinimo aparato damp arba drėgnomis sąlygomis.
• Užtikrinkite tinkamą suvirinimo aparato įžeminimą.
• Venkite liesti įtampingąsias elektros dalis.
• Prieš atlikdami bet kokią techninę priežiūrą ar keisdami priedus, atjunkite maitinimą.

Image: The ANDELI MIG-145 AIR welder highlighting its safety features, including overheat, overcurrent, overvoltage protection, and a fan cooling system.

3. Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:

• MIG-145 Plus Welder x1
• MIG Wire x1
• Flux Core Wire x1
• MIG Torch & Tips
• Electrode Holder x1
• 220V to 110V Adapter x1
• Gas Hose x1
• Gruntas Clamp x1

Image: A visual representation of the ANDELI MIG-145 AIR welder and all its included accessories, such as the MIG torch, wires, electrode holder, adapter, gas hose, and ground clamp.

4. Sąranka

4.1 Wire Installation (MIG/Flux Core)

To install the welding wire for MIG or Flux Core welding:

1. Atidarykite suvirinimo aparato šoninį skydelį.
2. Place the wire spool onto the spindle and secure it.
3. Feed the wire through the wire feeder mechanism, ensuring it passes through the correct groove for the wire diameter.
4. Close the wire feeder tension arm and adjust the tension appropriately.
5. Thread the wire through the MIG torch liner until it emerges from the contact tip.

4.2 Connecting Welding Cables (MMA/Stick, Lift TIG)

For MMA (Stick) or Lift TIG welding, connect the electrode holder and ground clamp to the appropriate terminals on the front panel of the welder. Ensure connections are secure.

4.3 Dujų prijungimas (dujinis MIG)

For Gas MIG welding, connect the gas hose from your shielding gas cylinder (e.g., CO2 or Argon/CO2 mix) to the gas inlet on the back of the welder. Ensure all connections are tight and leak-free. Adjust the gas flow rate using the regulator on your cylinder.

4.4 Maitinimo jungtis

The ANDELI MIG-145 AIR supports dual voltage (110V/220V). Use the appropriate power cord and adapter for your power supply. Ensure the power source matches the welder's requirements.

Image: The ANDELI MIG-145 AIR welder illustrating its 110V/220V dual voltage capability, providing flexibility for various power sources.

5. Veikimo režimai

The welder features a 4.1-inch LED digital display for clear visibility and control. It offers both Automatic and Adjustment modes for ease of use and precision.

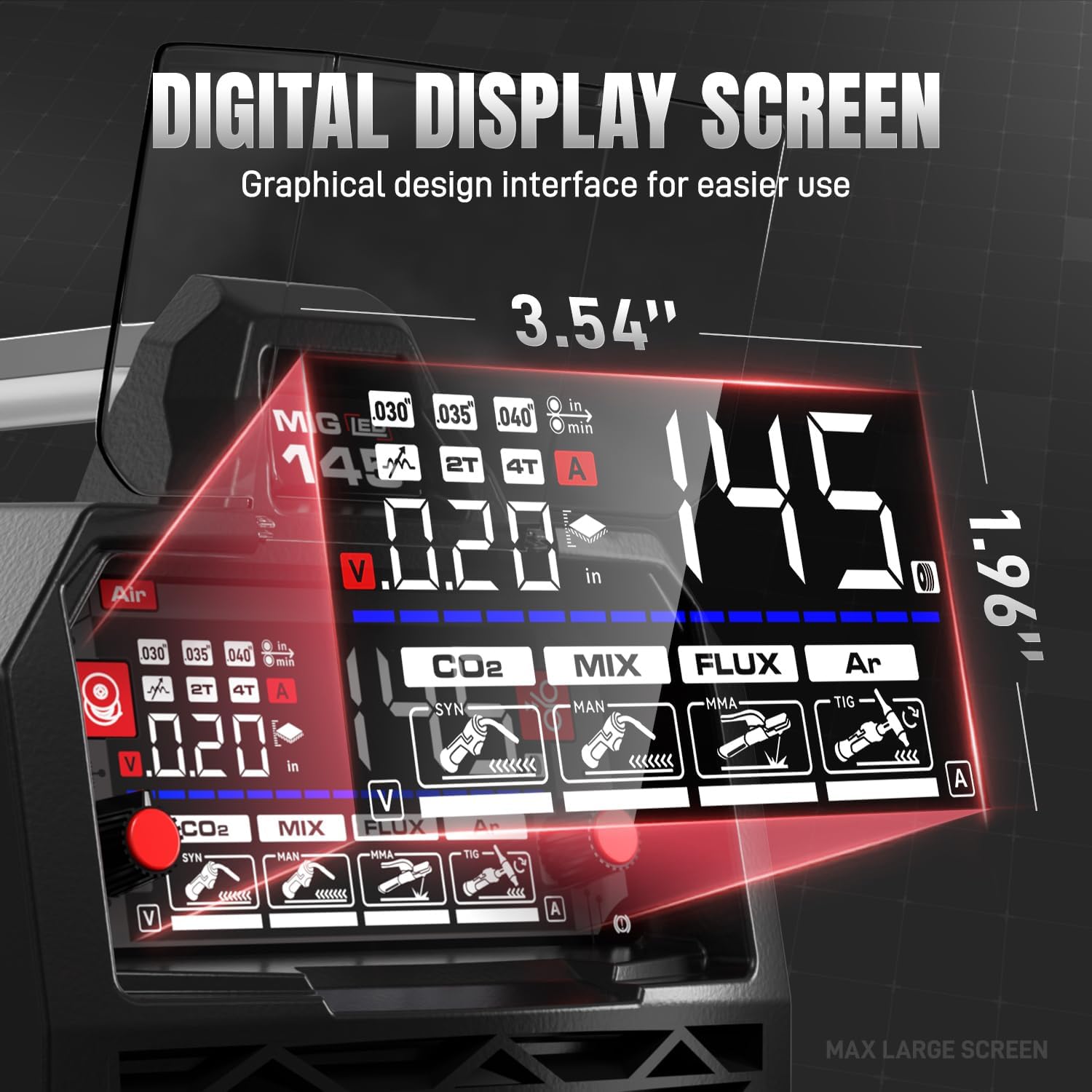

Paveikslėlis: detalus view of the ANDELI MIG-145 AIR's 4.1-inch digital display, showing various welding parameters and settings.

Image: The welder's display illustrating the choice between Automatic Mode (recommended for beginners) and Adjustment Mode (for skilled workers).

5.1 Režimo pasirinkimas

Use the control panel to select your desired welding mode: Gas MIG, Flux MIG, Lift TIG, or MMA. The LED display will show the selected mode and relevant parameters.

5.2 Synergic Control Technology

In Synergic Control mode, simply adjust the amperage or welding wire diameter, and the system will automatically optimize voltage and wire feed speed for optimal results. This feature simplifies setup and ensures precision.

5.3 2T/4T Settings

The welder offers 2T (Two-Touch) and 4T (Four-Touch) trigger settings:

• 2T (dviejų prisilietimų): Press and hold the trigger to weld; release to stop. Ideal for short welds and precise control.
• 4T (keturių prisilietimų): Press the trigger once to start welding, release, and the arc will maintain. Press again to stop. Perfect for long welds without hand fatigue.

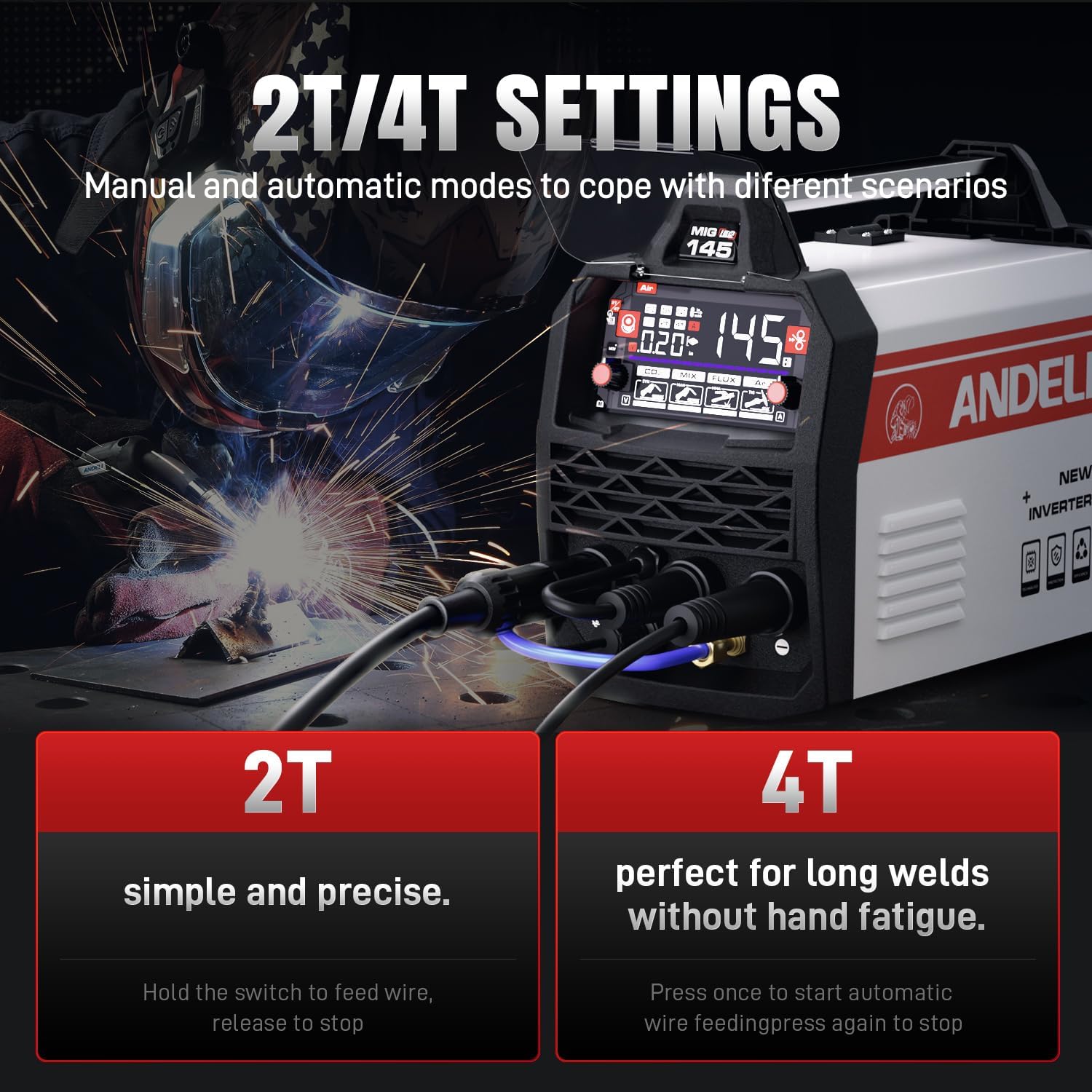

Image: The welder's control panel displaying the 2T and 4T settings, explaining their functions for different welding scenarios.

6. Specifikacijos

7. Priežiūra

Regular maintenance ensures the longevity and optimal performance of your ANDELI MIG-145 AIR welder.

• Valymas: Periodiškai valykite suvirinimo aparato išorę ir ventiliacijos angas, kad nesikauptų dulkės ir šiukšlės. Jei reikia, vidinius komponentus išvalykite suslėgtu oru, įsitikindami, kad aparatas yra atjungtas nuo elektros tinklo.
• Kabelio apžiūra: Reguliariai tikrinkite visus suvirinimo kabelius, degiklį ir įžeminimo laidusamp for damage, fraying, or loose connections. Replace any damaged components immediately.
• Contact Tip & Nozzle: For MIG welding, frequently check and clean the contact tip and nozzle. Replace the contact tip when it becomes worn or clogged to ensure consistent wire feeding and arc stability.
• Vielos tiektuvas: Keep the wire feeder rollers clean and ensure proper tension. Check for any obstructions in the wire liner.
• Saugykla: Store the welder in a clean, dry environment away from excessive dust, moisture, and extreme temperatures.

8. Problemų sprendimas

If you encounter issues with your welder, refer to the following common troubleshooting steps:

• Nėra galios: Check the power cord connection, wall outlet, and circuit breaker. Ensure the welder's power switch is ON.
• Be lanko: Patikrinkite, ar įžeminimasamp is securely attached to the workpiece and that the electrode/torch is making proper contact. Check for correct mode selection and parameter settings.
• Prasta suvirinimo kokybė: Sureguliuoti ttage, amperage, and wire feed speed according to the material thickness and welding process. Ensure the workpiece is clean and free of rust or paint. Check for proper gas flow (for Gas MIG) or correct wire type (for Flux Core).
• Vielos tiekimo problemos: Check wire spool installation, wire feeder tension, and ensure the contact tip is not clogged. Inspect the wire liner for kinks or blockages.
• Apsauga nuo perkaitimo: If the welder stops and displays an overheat warning, allow it to cool down. Ensure adequate ventilation around the machine.

For persistent issues, contact ANDELI customer support or a qualified technician.

9. Garantija ir palaikymas

The ANDELI MIG-145 AIR welder comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including coverage duration and claim procedures. For technical assistance, spare parts, or any other inquiries, please contact ANDELI customer support through the contact information provided in your product documentation or on the official ANDELI websvetainę.
