OUPES Exodus 2400 Portable Power Station & 240W Solar Panel User Manual

1. Įvadas

Thank you for choosing the OUPES Exodus 2400 Portable Power Station with 240W Solar Panel. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

The OUPES Exodus 2400 is a high-capacity portable power station designed to provide reliable power for various applications, including RVs, home backup during outages, and professional outdoor use. It features a 2232Wh capacity, 2400W AC output (2600W boost, 4500W peak), APP control, and an Uninterruptible Power Supply (UPS) function.

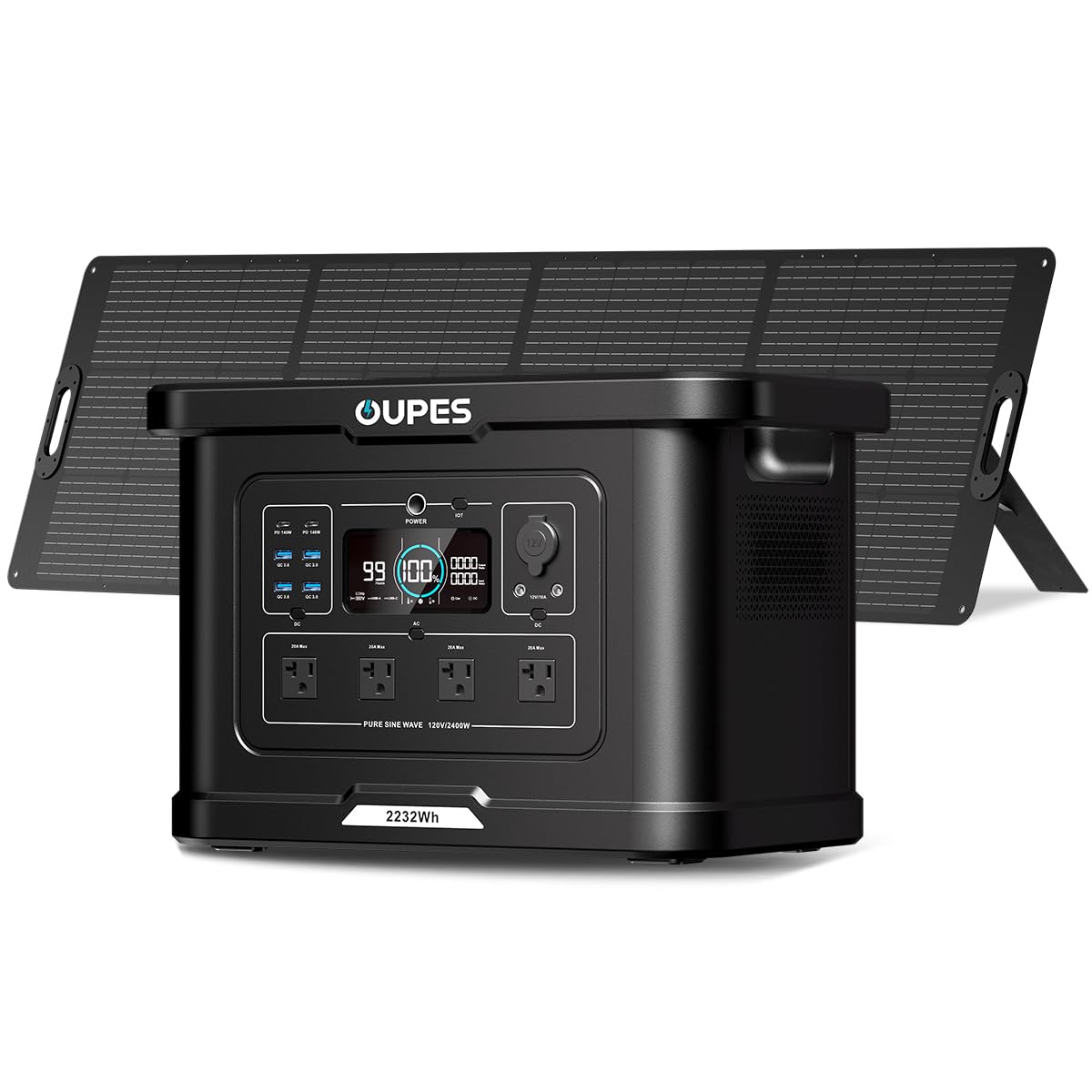

Image 1.1: OUPES Exodus 2400 Portable Power Station with 240W Solar Panel.

2. Saugos instrukcijos

Norėdami užtikrinti saugų darbą, visada laikykitės šių nurodymų:

• Neišardykite, neremontuokite ir nekeiskite įrenginio.
• Laikykite įrenginį atokiau nuo ugnies, šilumos šaltinių ir tiesioginių saulės spindulių.
• Avoid exposure to water, rain, or high humidity.
• Naudokite tik originalius arba sertifikuotus priedus.
• Naudojimo ir įkrovimo metu užtikrinkite tinkamą vėdinimą.
• Laikyti vaikams ir naminiams gyvūnėliams nepasiekiamoje vietoje.
• Gaisro atveju naudokite miltelinį gesintuvą.

3. Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:

• 1x OUPES Exodus 2400 Portable Power Station
• 1x 240W Foldable Solar Panel
• 1x kintamosios srovės įkrovimo laidas
• 1x automobilio įkrovimo laidas
• 1x vartotojo vadovas

4. Produktas baigtasview

4.1. Ports and Interface

The Exodus 2400 offers a variety of output ports to power multiple devices simultaneously:

• AC lizdai: 4x Pure Sine Wave 120V/2400W (Max 2600W, Surge 4500W)
• USB-C prievadai: 2x PD 140W
• USB-A prievadai: 4x QC3.0 (18W)
• DC išėjimas: 3x DC 12V/10A
• Automobilio išvestis: 1x 12V/10A

4.1 vaizdas: Baigtaview of the OUPES Exodus 2400 output ports.

4.2. Smart Display

The integrated smart display provides real-time information about the power station's status, including remaining runtime, battery level, input/output power, and warning indicators.

Image 4.2: The smart display provides comprehensive operational data.

5. Sąranka ir įkrovimas

5.1. Pradinė sąranka

Before first use, fully charge the power station. Connect the AC charging cable to the power station's input port and then to a wall outlet. The display will indicate charging status.

5.2. Įkrovimas kintamąja srove

The Exodus 2400 supports 1400W fast AC charging, reaching 0-80% in approximately 1.2 hours. A 700W slow charge option is also available to reduce heat buildup and extend battery lifespan.

Image 5.1: AC charging of the power station.

5.3. Saulės įkrovimas

Connect the 240W foldable solar panel to the power station's solar input port. Position the solar panel in direct sunlight for optimal charging. The power station supports up to 800W MPPT solar input, allowing 0-80% charge in 2-4 hours under ideal conditions.

Image 5.2: Solar panel charging setup.

5.4. Automobilio įkrovimas

Use the provided car charging cable to charge the power station from your vehicle's 12V outlet. This method is suitable for on-the-go recharging.

6. Operacija

6.1. Įjungimas/Išjungimas

Press and hold the main POWER button to turn the unit on or off. Individual AC and DC output buttons can be pressed to activate or deactivate specific output groups.

6.2. Prietaisų prijungimas

Plug your devices into the appropriate AC, USB, or DC ports. Ensure the total power consumption does not exceed the power station's rated output of 2400W (2600W boost, 4500W peak).

6.3. UPS funkcija

The Exodus 2400 features an Uninterruptible Power Supply (UPS) function with a switching time of less than 20ms. Connect the power station to a wall outlet and then plug your sensitive devices (e.g., computers, CPAP machines, refrigerators) into the power station's AC outlets. In case of a power outage, the power station will automatically switch to battery power, providing seamless operation.

Image 6.1: Illustrating the UPS function for uninterrupted power.

6.4. APP valdymas

Download the OUPES app to monitor and control your power station remotely via Wi-Fi or Bluetooth. The app allows you to check real-time power status, customize output settings, set AC timeout, and adjust AC recharging speed (fast or slow).

Image 6.2: OUPES app interface for smart control.

7. Priežiūra ir sandėliavimas

Proper maintenance ensures the longevity and performance of your power station:

• Clean the unit with a dry, soft cloth. Avoid using harsh chemicals.
• Jėgos stotelę laikykite vėsioje, sausoje vietoje, toliau nuo tiesioginių saulės spindulių ir ekstremalių temperatūrų.
• Ilgalaikio sandėliavimo metu įkraukite įrenginį iki 50–80 % kas 3–6 mėnesius, kad išlaikytumėte akumuliatoriaus veikimo laiką.
• The LiFePO4 battery is designed for over 3500 cycles and has a 10-year lifespan.

Image 7.1: Internal structure highlighting the LiFePO4 battery.

7.1. Akumuliatoriaus valdymo sistema (BMS)

The built-in BMS protects the battery from overcharging, overheating, deep discharges, over-voltage, over-current, and short circuits, ensuring optimal performance and safety.

Image 7.2: The Battery Management System (BMS) ensures safety and longevity.

8. Problemų sprendimas

Jei kyla problemų, žr. toliau pateiktas dažniausiai pasitaikančias problemas ir sprendimus:

For issues not listed here, please contact OUPES customer support.

9. Specifikacijos

10. Garantija ir palaikymas

The OUPES Exodus 2400 Portable Power Station comes with a 5 metų garantija, užtikrinant ramybę dėl jūsų investicijos.

For technical support, warranty claims, or any questions regarding your product, please contact OUPES customer service through the official websvetainėje arba jūsų pardavėjui.

Internetiniai ištekliai: Aplankykite OUPES Store on Amazon dėl papildomos informacijos apie gaminį ir pagalbos.
