Cecotec Conga M100 X-Treme Robot Vacuum and Mop User Manual

1. Įvadas

Thank you for choosing the Cecotec Conga M100 X-Treme Robot Vacuum and Mop. This device is designed to provide efficient and intelligent cleaning for your home, combining powerful vacuuming with effective mopping. Please read this manual thoroughly before using the product to ensure proper operation, maintenance, and safety.

2. Saugos instrukcijos

• Prieš naudodami pirmą kartą įsitikinkite, kad robotas yra visiškai įkrautas.
• Nenaudokite roboto drėgnoje aplinkoje arba šalia vandens šaltinių.
• Veikiant robotui, laikykite vaikus ir naminius gyvūnus atokiau nuo jo.
• Remove any loose cables, small objects, or fragile items from the cleaning area to prevent entanglement or damage.
• Use only the original charging base and power adapter provided by Cecotec.
• Do not attempt to repair or modify the robot yourself. Contact authorized service personnel.
• Clean the robot's sensors and brushes regularly to maintain optimal performance.

3. Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi komponentai:

• 1 x Cecotec Conga M100 X-Treme Robot Vacuum and Mop
• 1 x įkrovimo bazė
• 1x maitinimo adapteris
• 1 x naudojimo instrukcija
• Additional accessories (e.g., side brushes, mop cloths, cleaning tool) may be included depending on the specific model variant.

4. Produktas baigtasview

The Conga M100 X-Treme features advanced technology for comprehensive cleaning.

Pagrindinės funkcijos:

• Artificial Intelligence (AI) Navigation: Enables precise navigation, object avoidance, and obstacle detection for efficient and safe cleaning.
• Ekstremali siurbimo galia: Up to 20,000 Pa suction for deep cleaning on various surfaces, including high-pile carpets.
• Anti-Tangle Silicone Brush: Designed to prevent hair entanglement, making it ideal for homes with pets.
• Rotating Spin Mops: Two rotating mops effectively remove stubborn stains.
• Spin Up System: Automatically lifts the mops when detecting carpets to prevent wetting.
• Long-Range Autonomy: Cleans up to 220 m² on a single charge (3200mAh battery).
• Bendras paviršius 3.0: Returns to the charging base to recharge and resumes cleaning from where it left off.
• App Control (APP 3.0): Allows defining zones, restricting areas, setting cleaning order, and adjusting water flow for different floor types via your mobile device.

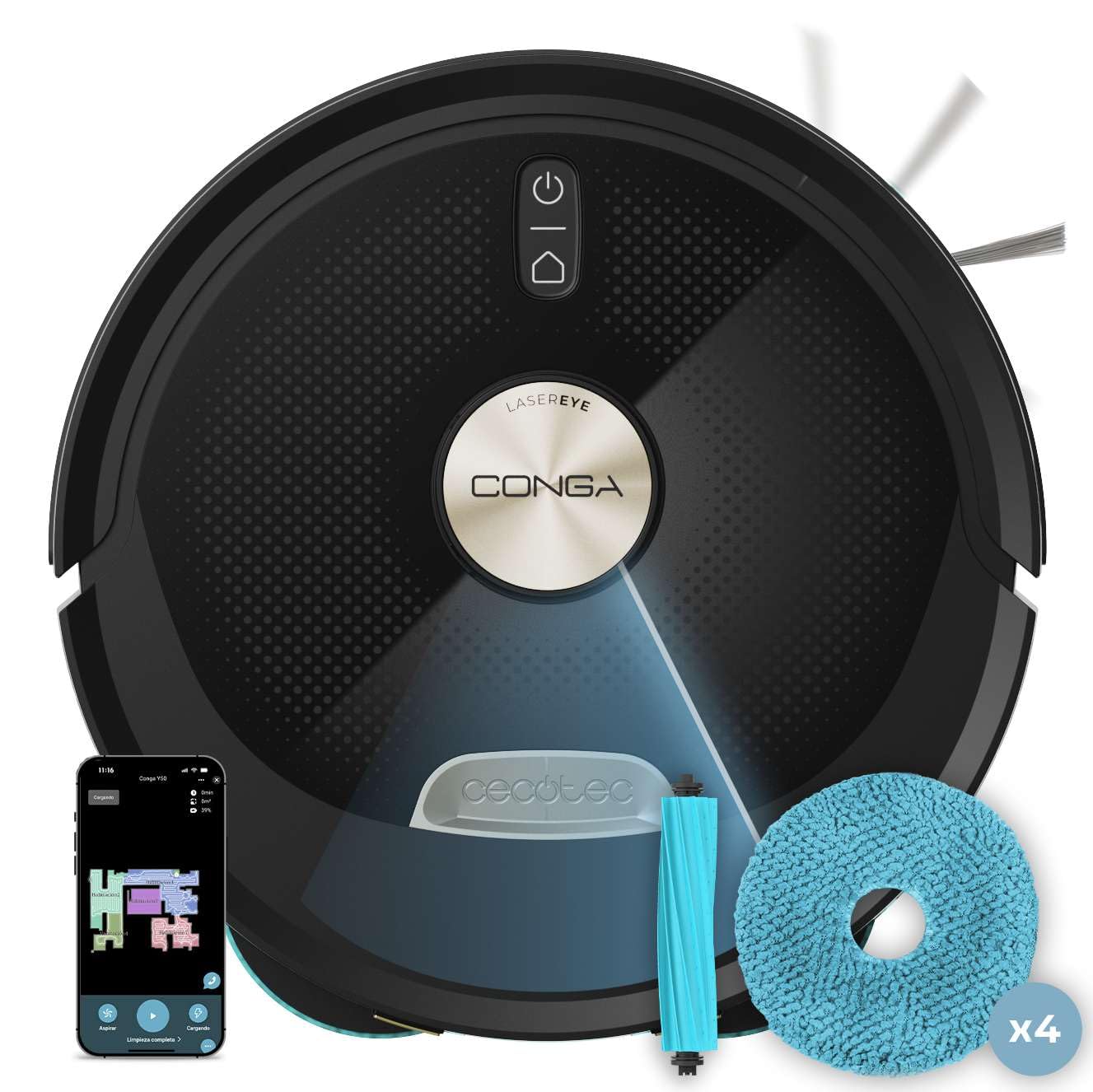

1 pav.: Viršus view of the Cecotec Conga M100 X-Treme robot vacuum and mop.

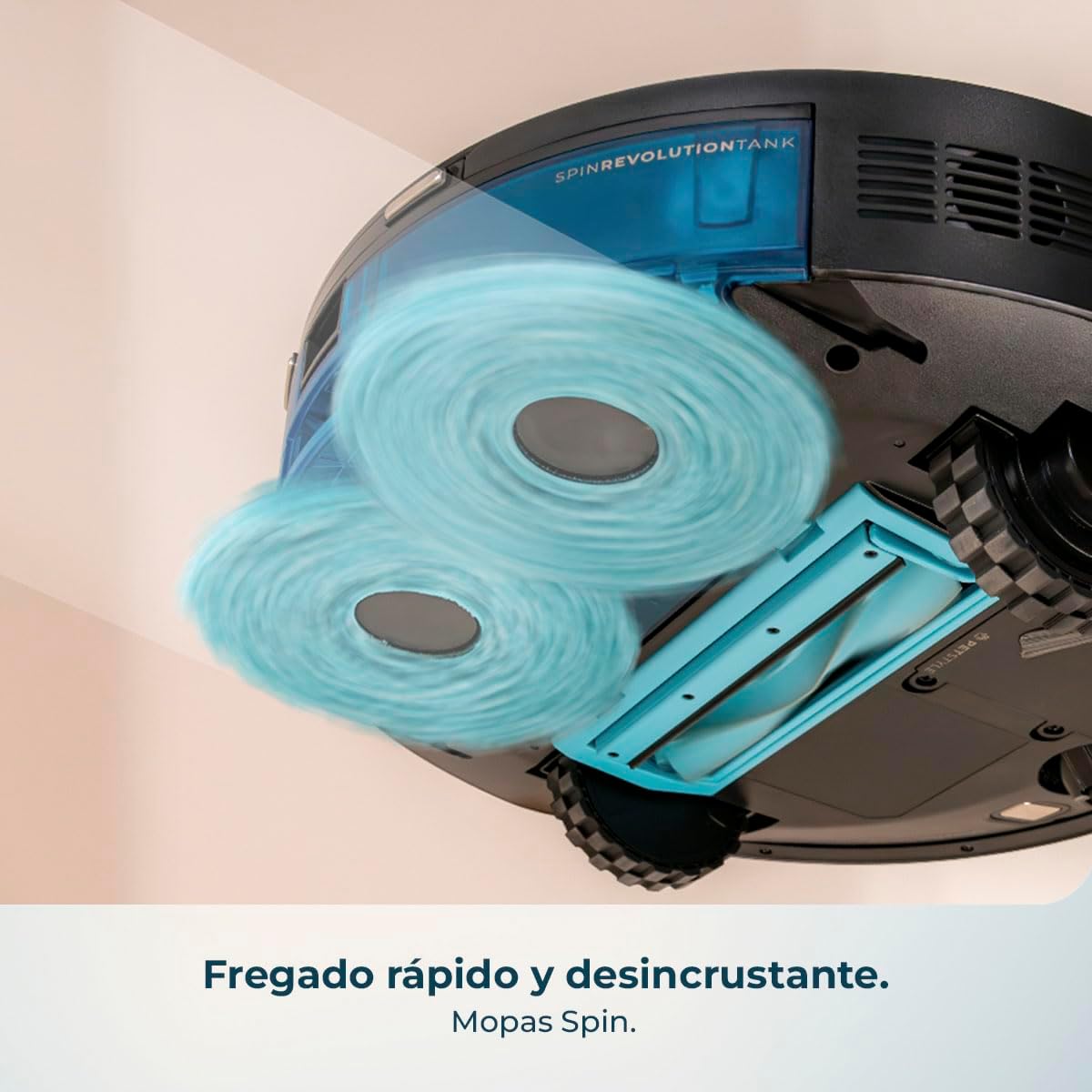

2 pav.: Apatinė pusė view of the robot, highlighting the anti-tangle silicone brush and rotating mops.

Image 3: The robot's AI and LaserEye technology detecting and navigating around objects like toys and power strips.

5. Sąranka

5.1 Įkrovimo stotelės išdėstymas

• Įkrovimo stotelę pastatykite prie sienos atviroje vietoje, palikdami bent 1 metro laisvos vietos iš abiejų pusių ir 2 metrus priekyje.
• Prijunkite maitinimo adapterį prie įkrovimo pagrindo ir įjunkite jį į maitinimo lizdą.
• Ensure the charging base is placed on a hard, flat surface and not on carpet.

Image 4: The robot returning to its charging base.

5.2 Pradinis įkrovimas

Place the robot on the charging base. The indicator light on the robot will show its charging status. For first use, allow the robot to charge completely, which may take several hours.

5.3 Programėlės diegimas ir susiejimas

• Download the official Cecotec APP 3.0 from your smartphone's app store (iOS or Android).
• Follow the in-app instructions to create an account and pair your Conga M100 X-Treme robot. This typically involves connecting to the robot's Wi-Fi network and then to your home Wi-Fi (2.4 GHz network required).
• The app allows for easy and quick linking via Bluetooth and Wi-Fi.

Image 5: Easy and fast pairing of the robot with the mobile app.

6. Naudojimo instrukcijos

6.1 Valymo pradžia ir pabaiga

• Rankinis paleidimas: Norėdami pradėti bendrą valymo ciklą, vieną kartą paspauskite roboto maitinimo mygtuką.
• Programėlės paleidimas: Open the APP 3.0 and select the desired cleaning mode or area to start cleaning.
• Pristabdyti / sustabdyti: Press the power button again or use the app to pause or stop the cleaning cycle.

6.2 Using the APP 3.0

The APP 3.0 provides comprehensive control over your robot:

• Define Cleaning Zones: Create specific areas for the robot to clean or avoid.
• Set Restricted Areas: Mark virtual walls or no-go zones where the robot should not enter.
• Sureguliuokite siurbimo galią: Choose between Silent, Normal, Turbo, or Max suction levels.
• Vandens srauto valdymas: Adjust the water flow for mopping (Low, Medium, High) based on floor type.
• Valymo tvarkaraštis: Nustatykite kasdienius arba savaitinius valymo grafikus.
• View Valymo žemėlapis: Monitor the robot's progress and cleaning map in real-time.

Image 6: The mobile app interface for defining cleaning zones and adjusting settings.

6.3 Automatinis grįžimas į bazę

When the battery is low or a cleaning cycle is complete, the robot will automatically return to its charging base. Thanks to Total Surface 3.0, if the battery runs low during a cleaning cycle, the robot will recharge and then resume cleaning from where it left off.

Image 7: The robot ensures the cleaning plan is always completed by returning to its base for recharging.

6.4 Kilimų aptikimas ir šluostės pakėlimas

The robot is equipped with a Spin Up system that detects carpets and automatically lifts the rotating mops to prevent them from getting wet, ensuring only vacuuming occurs on carpeted surfaces.

Image 8: The Spin Up system lifts the mops to protect carpets from moisture.

Image 9: The robot effectively cleans carpets with its powerful suction.

Image 10: The robot is capable of cleaning large areas up to 220 m² without interruption.

7. Priežiūra

Reguliarus roboto aptarnavimas užtikrina jo ilgaamžiškumą ir optimalų veikimą.

7.1 Dulkių surinktuvo ir filtro valymas

• Po kiekvieno valymo ciklo ištuštinkite šiukšliadėžę.
• Clean the primary filter and HEPA filter regularly with the provided cleaning tool. Do not wash HEPA filters with water.

7.2 Pagrindinis ir šoniniai šepečiai

• Remove the main anti-tangle silicone brush and clean any hair or debris wrapped around it using the cleaning tool.
• Check and clean the side brushes for tangled hair or debris. Replace them if they are worn or damaged.

Image 11: The anti-tangle silicone brush effectively collects debris without getting tangled.

7.3 Rotating Mops

• Remove the rotating mops after each mopping session.
• Wash the mops with water and mild detergent. Allow them to air dry completely before reattaching.

Image 12: The rotating mops provide powerful and thorough scrubbing for effective stain removal.

Image 13: The robot offers tailored mopping with 3 levels of water flow for various floor types.

7.4 Jutikliai ir įkrovimo kontaktai

• Wipe the cliff sensors, object detection sensors, and charging contacts on both the robot and the charging base with a dry, soft cloth.

8. Problemų sprendimas

9. Specifikacijos

10. Oficialus produkto vaizdo įrašas

11. Garantija ir palaikymas

Your Cecotec Conga M100 X-Treme comes with a standard manufacturer's warranty. For detailed warranty information, product support, or service inquiries, please refer to the warranty card included in your package or visit the official Cecotec websvetainėje. Išsaugokite pirkimo kvitą kaip pirkimo įrodymą garantiniams reikalavimams.
