DUCO AG01 AI Smart Sunglasses User Manual

1. Įvadas

Thank you for choosing the DUCO AG01 AI Smart Sunglasses. These innovative glasses integrate advanced technology to enhance your daily experiences, offering features such as a 4K HD camera, AI assistant, real-time translation, and Bluetooth connectivity. This manual provides essential information for the proper setup, operation, and maintenance of your new smart sunglasses.

2. Pakuotės turinys

Įsitikinkite, kad jūsų siuntinyje yra visi daiktai:

• DUCO AG01 AI Smart Sunglasses
• Akinių dėklas
• Mikropluošto valymo šluostė
• Magnetinis įkrovimo laidas
• Vartotojo vadovas

Figure 2.1: DUCO AG01 Package Contents

3. Produkto ypatybės

• 8MP 4K HD Camera: Capture high-resolution photos and videos with AI-powered stabilization and an ultra-wide perspective.
• AI Assistant & Translation: Access an AI assistant and real-time translation for 163 languages, breaking language barriers.
• Open-Ear Audio & Stereo Sound: Enjoy immersive audio without blocking ambient sounds, featuring dual microphones with noise reduction for clear calls.
• Bluetooth 5.3 ryšys: Seamlessly connect to your smartphone for calls, music, and data transfer.
• Išmanusis jutiklinis valdymas: Manage calls, music playback, and camera functions with intuitive touch and button controls.
• Ilgas baterijos veikimo laikas: Powered by a 410mAh high-capacity battery, offering up to 8 hours of active use (translation/calls/music) and 15 days of standby time.
• UV400 apsauga: Lenses provide essential UV protection for your eyes.

Figure 3.1: Key Features of DUCO AG01 Smart Sunglasses

Figure 3.2: 4K HD 8MP Camera System

Figure 3.3: Open Hi-Fi Sound & ENC Clear Calls

Figure 3.4: 8-Hour Continuous Use Battery

4. Sąranka

4.1 Įjungimas / išjungimas

To power on the DUCO AG01 Smart Sunglasses, locate the power switch on the right temple and slide it forward. To power off, slide the switch backward.

4.2 Programėlės atsisiuntimas ir įdiegimas

Download the companion app by scanning the QR code provided in the included user manual or searching for "HeyCyan" in your device's app store. Install the app on your smartphone.

Figure 4.1: App Download and Interface

4.3 Bluetooth poravimas

1. Ensure your DUCO AG01 Smart Sunglasses are powered on.
2. Open the "HeyCyan" app on your smartphone.
3. Įjunkite „Bluetooth“ savo išmaniajame telefone.
4. In the app, search for available devices. The glasses should appear as "AG01_A16E".
5. Select the device to pair. A successful connection will be indicated in the app.

5. Naudojimo instrukcijos

5.1 Kameros ir vaizdo įrašymo funkcijos

The DUCO AG01 Smart Sunglasses feature a camera on the right temple for hands-free capture.

• Nufotografuoti: Single-click the top-right button on the temple.
• Pradėti vaizdo įrašymą: Long-press the top-right button on the temple.
• Vaizdo įrašo užbaigimas: Press the top-right button once while recording.

Figure 5.1: Real-Time Translation Feature

5.2 Garso įrašymas

To start audio recording, double-click the top-right button on the temple. To end recording, click the button once.

5.3 Skambučių valdymas

Manage your calls directly from your smart sunglasses:

• Atsiliepti / Baigti skambutį: Click the top-right button once.
• Atmesti skambutį: Long-press the top-right button for 2 seconds.

5.4 Muzikos atkūrimo valdymas

Control your music using the touch panel on the right temple:

• Leisti / pristabdyti muziką: Double-tap the right touch panel.
• Kita daina: Triple-tap the right touch panel.
• Padidinti garsumą: Swipe forward on the right touch panel.
• Sumažinti garsumą: Swipe backward on the right touch panel.

Figure 5.2: Intelligent Touch Control Overview

5.5 Dirbtinio intelekto balso asistentas

Activate your AI voice assistant by saying "HeyCyan" or by long-pressing the designated button (refer to Figure 5.2 for button location). This allows for hands-free commands and information retrieval.

Figure 5.3: Activating Voice Assistant

6. Įkrovimas

To charge your DUCO AG01 Smart Sunglasses, connect the magnetic charging cable to the charging port located on the left temple. Connect the other end of the USB cable to a compatible power source (e.g., computer USB port, wall adapter).

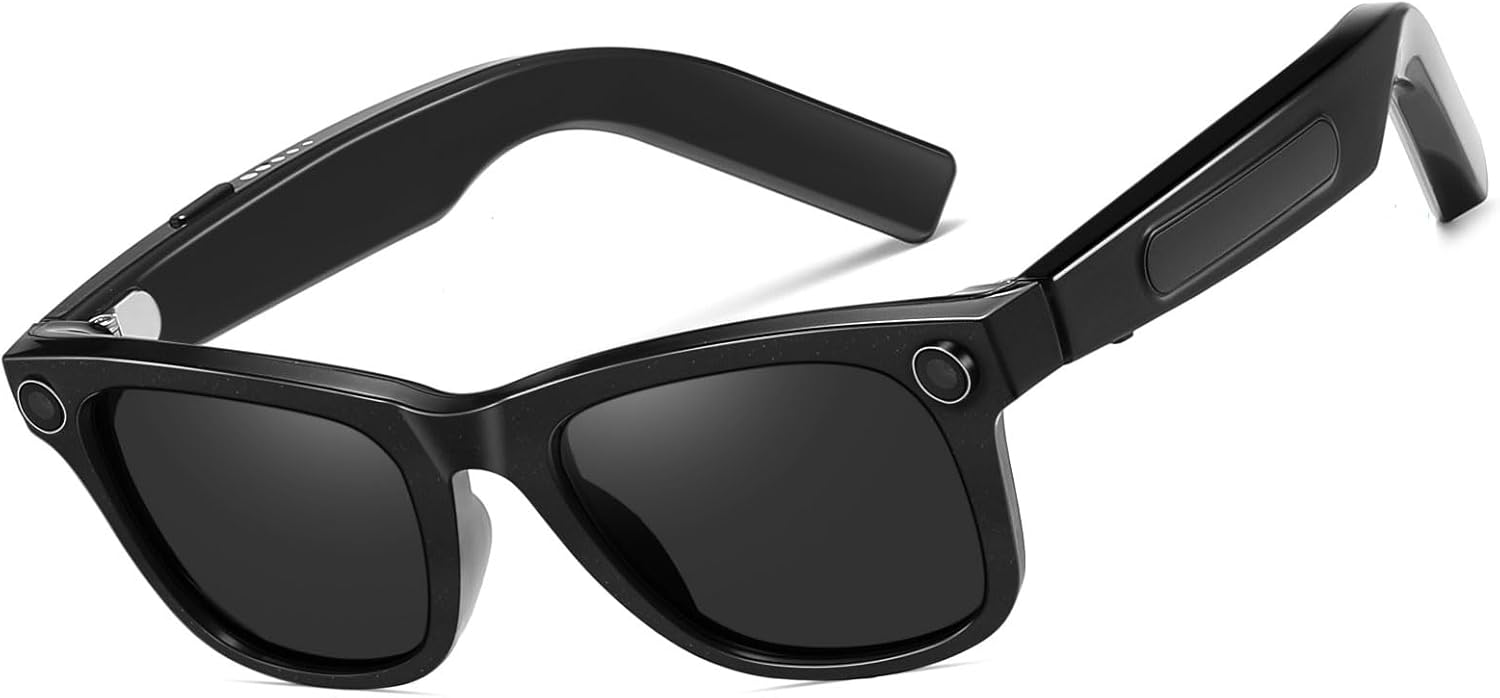

6.1 pav.: Įkrovimo prievado vieta

7. Priežiūra

• Valymas: Use the provided microfiber cleaning cloth to gently wipe the lenses and frame. Avoid using harsh chemicals or abrasive materials.
• Saugykla: Kai nenaudojate, laikykite akinius nuo saulės apsauginiame dėkle, kad išvengtumėte įbrėžimų ir pažeidimų.
• Atsparumas vandeniui: The glasses are designed for everyday use but are not fully waterproof. Avoid prolonged exposure to water or submersion.
• Temperatūra: Do not expose the sunglasses to extreme temperatures, as this may affect battery life and electronic components.

8. Problemų sprendimas

If you encounter issues with your DUCO AG01 Smart Sunglasses, please refer to the following common solutions:

• Neįmanoma įjungti: Ensure the glasses are fully charged. Connect them to the charging cable and allow sufficient time to charge.
• „Bluetooth“ ryšio problemos: Make sure Bluetooth is enabled on your smartphone and the glasses are within range. Try restarting both the glasses and your phone. If issues persist, unpair and re-pair the device.
• Programėlė neatsako: Close and restart the "HeyCyan" app. Ensure the app is updated to the latest version.
• Prasta garso kokybė: Check the volume settings on both the glasses and your connected device. Ensure the speakers are not obstructed.
• Kamera / vaizdo įrašas neveikia: Verify that the glasses are powered on and connected to the app. Check if there is sufficient storage space for new recordings.

For further assistance, please contact DUCO customer support.

9. Specifikacijos

9.1 pav.: Gaminio matmenys

10. Garantija ir palaikymas

The DUCO AG01 AI Smart Sunglasses come with a 3 metų gamintojo garantija. For warranty claims, technical support, or any product-related inquiries, please contact DUCO customer service through the official websvetainėje arba jūsų pirkimo platformoje.
