ATOMSTACK Swift 7W Laser Engraver Instruction Manual

1. Įvadas

The ATOMSTACK Swift 7W Laser Engraver is a high-precision laser cutting and engraving machine designed for various materials. It features advanced spot compression technology, enabling detailed engraving and efficient cutting. This manual provides essential information for safe operation, assembly, usage, and maintenance of your device.

2. Saugos gairės

• Akių apsauga: Always wear the provided safety glasses during operation. The magnetic filter cover blocks 97% of intense light, but direct exposure to the laser beam can cause severe eye damage.
• Vėdinimas: Operate the machine in a well-ventilated area to dissipate smoke and fumes produced during engraving and cutting.
• Medžiagų suderinamumas: Graviruokite arba pjaustykite tik tas medžiagas, kurios nurodytos kaip saugios lazeriniam apdorojimui. Venkite labai atspindinčių, degių ar nežinomų medžiagų.
• Priežiūra: Do not leave the machine running unattended. Monitor the engraving/cutting process closely.
• Avarinis sustojimas: Susipažinkite su avarinio stabdymo procedūra.
• Liepsnos aptikimas: The device includes a flame detector and gyroscope for enhanced safety, triggering an alarm in case of unexpected events.

3. Pakuotės turinys

Įsitikinkite, kad pakuotėje yra visi komponentai:

Vaizdas: Išsamus view of all components included in the ATOMSTACK Swift 7W Laser Engraver package, laid out on a table.

• Priekinės X ašies mazgas (su trosu)
• Galinės X ašies mazgas
• X ašies surinkimas
• Kairiosios Y ašies mazgas (su varikliu)
• Dešinysis Y ašies mazgas
• Optinis velenas
• Lazerinis modulis
• Maitinimo adapteris
• USB kabelis
• Gaminio vadovas
• Paskirstymo diržas
• H2/H2.5/H3 L-shaped Allen wrench set
• Veržliaraktis
• M5×8 Screws (x6)

4. Surinkimo instrukcijos

The ATOMSTACK Swift 7W Laser Engraver is designed for quick and easy assembly. Follow the steps below:

1. Sujungti mazgus: Align and connect the five main frame assemblies as shown in the video. Ensure the X-axis assembly's belt faces downward and the Y-axis assembly with the motor is on the left side.
2. Pritvirtinkite varžtais: Use the provided M5×8 screws to securely fasten all connected assemblies.
3. Optinio veleno montavimas: Insert the optical shaft onto the X-axis assembly.
4. Priveržkite jungties ir paskirstymo skriemulį: Push the X-axis toward the front X-axis assembly, ensuring it is fully inserted and aligned parallel. Then, tighten the coupling and the timing pulley.
5. Įdiekite lazerinį modulį: Carefully install the laser module onto the X-axis assembly and tighten the thumb screw to secure it.
6. Prijunkite kabelius: Connect the motor cable, limit switch cables, and the laser module cable to their respective ports.
7. Adjust Eccentric Nut: Use an open-end wrench to adjust the eccentric nut until the X-axis can slide down smoothly when the machine is tilted at 45°. This ensures proper movement and stability.

Image: Illustration of the modular design of the ATOMSTACK Swift 7W Laser Engraver, highlighting its quick assembly process.

5. Naudojimo vadovas

5.1. Fokusavimo metodas

To ensure optimal engraving and cutting results, proper focusing is essential. Place your workpiece on the working area, then adjust the focus by turning the side knob on the laser module until the laser spot is at its smallest and sharpest point on the material surface. If the hand-tightened screw interferes with the optical shaft, pull out the black part, rotate it outward, and then release it.

5.2. Programinė įranga ir jungiamumas

The ATOMSTACK Swift 7W Laser Engraver supports multiple software options and connectivity methods:

• Programinė įranga: Compatible with LightBurn, LaserGRBL, and ATOMSTACK's proprietary PC software (AtomStack Studio) and mobile app.
• Ryšys: Connect via Type-C USB cable, standard USB cable, or wirelessly via WiFi/hotspot.
• Palaikomos sistemos: „Windows“, „macOS“, „Android“ ir „iOS“.
• File Formatai: JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF.

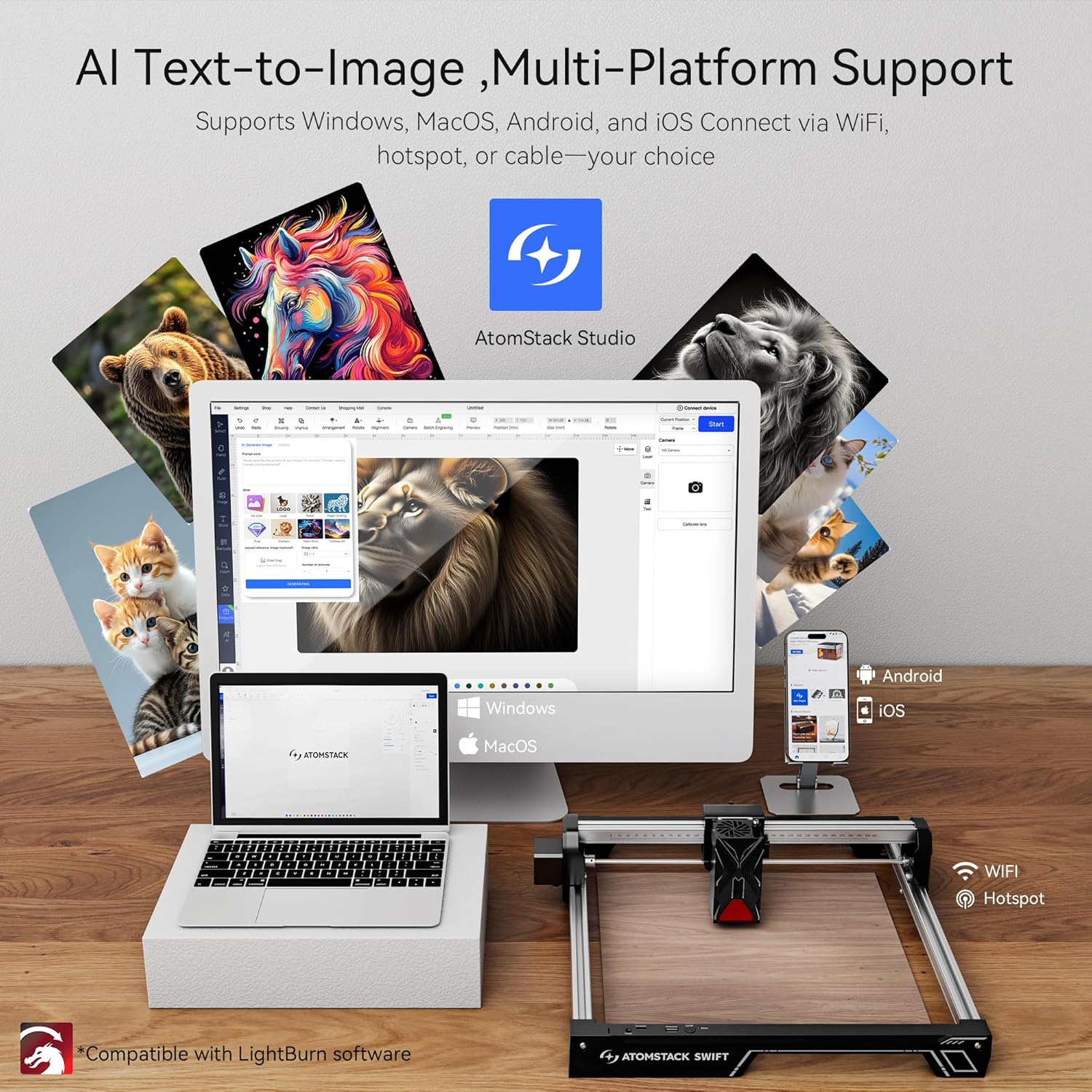

Image: Displays the ATOMSTACK Studio software interface on various devices (laptop, tablet, phone) and highlights the multiple connectivity options including WiFi and USB.

5.3. Graviravimo ir pjovimo galimybės

The ATOMSTACK Swift 7W features a 7W laser power with a unique point compression technology, achieving a spot size of 0.06 x 0.08 mm for high precision. It combines high-energy cutting with precise engraving, reaching speeds of up to 400 mm/s (10000 mm/min). The engraving area is 300 x 300 mm, which can be expanded.

Image: Illustrates the precision engraving and powerful cutting capabilities of the ATOMSTACK Swift 7W, showing examples of cutting 4mm black acrylic and 8mm basswood plywood.

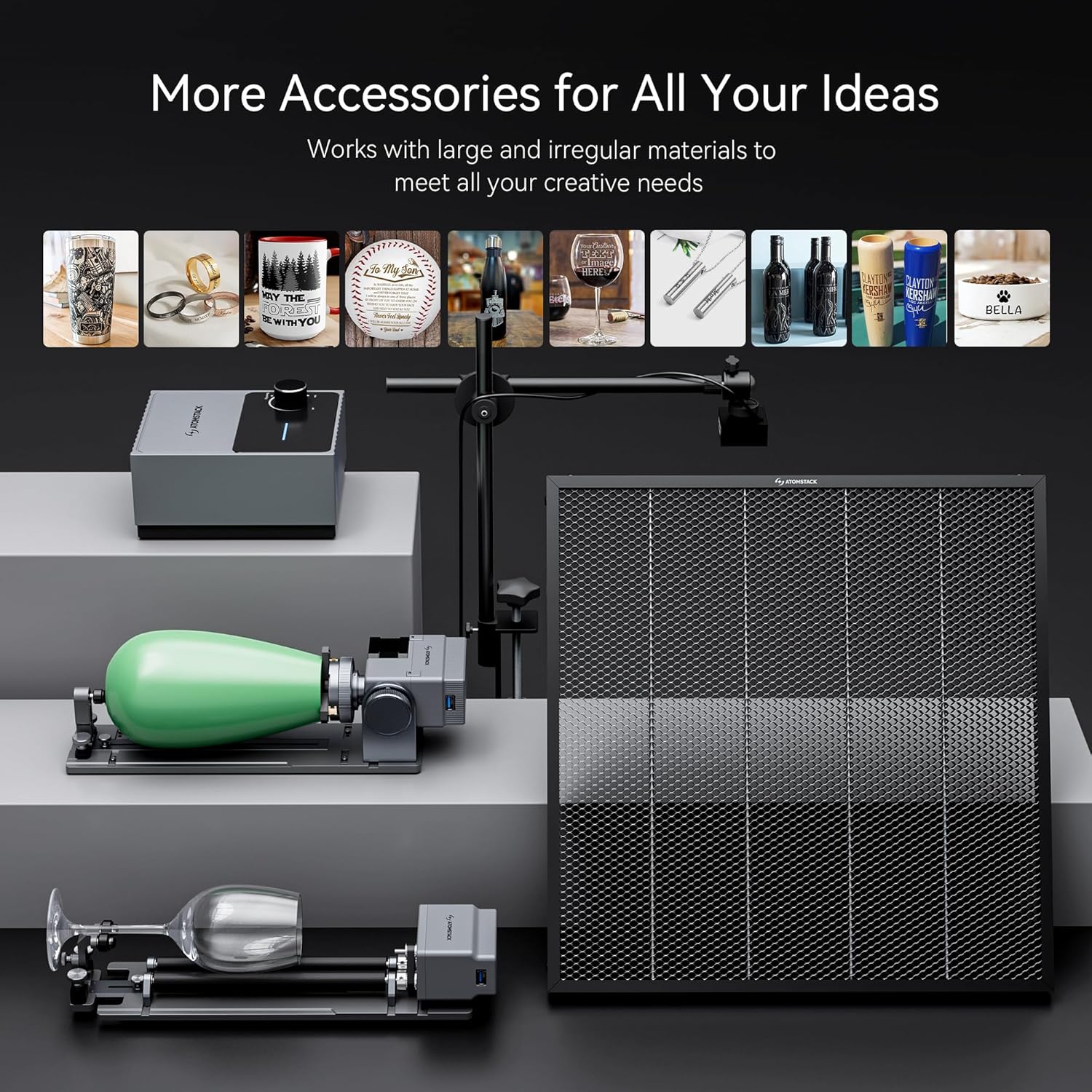

5.4. Expandability and Accessories

The engraving area can be expanded to accommodate larger projects. Various accessories are available to enhance functionality and meet diverse creative needs.

Image: Shows the large working area of the ATOMSTACK Swift 7W Laser Engraver, measuring 461.9mm x 459.1mm (18.1in x 18in).

Image: Highlights the safety features of the ATOMSTACK Swift 7W Laser Engraver, including a flame detector and gyroscope for secure operation.

6. Priežiūra

• Valymas: Regularly clean the laser lens and the working area to prevent debris buildup, which can affect performance and accuracy. Use a soft, lint-free cloth and appropriate cleaning solutions.
• Tepimas: Periodically lubricate the moving parts, such as the guide rails and lead screws, to ensure smooth operation.
• Kabelio apžiūra: Check all cables for any signs of wear or damage. Replace damaged cables immediately to prevent electrical hazards.

7. Problemų sprendimas

• Mašina neįsijungia: Ensure the power adapter is securely connected to both the machine and a working power outlet. Check the power button.
• Lazeris neveikia / silpnas spindulys: Verify the laser module is correctly installed and the thumb screw is tightened. Check the focus adjustment. Ensure the laser module cable is properly connected.
• Engraving/Cutting Inaccurate: Check the tightness of all screws and ensure the optical shaft is properly installed. Adjust the eccentric nut if the X-axis movement is not smooth. Ensure the workpiece is stable and not moving during operation.
• Programinės įrangos ryšio problemos: Confirm that the USB cable is properly connected or that the WiFi/hotspot connection is stable. Restart the software and the machine if necessary.

8. Techninės specifikacijos

9. Garantija ir palaikymas

ATOMSTACK provides a 365-day warranty from the date of product receipt. Customer support is available 24/7. For any issues or inquiries, please contact the ATOMSTACK team directly via the Amazon platform for a solution within 24 hours.
