darkFlash AIR NOVA Full Tower E-ATX PC Case Instruction Manual

1. Įvadas

The darkFlash AIR NOVA is a full tower E-ATX PC case designed for optimal airflow and component compatibility. This manual provides essential information for the proper installation, operation, and maintenance of your new PC case. Please read through these instructions carefully before beginning assembly.

1 pav.: Išorė view of the darkFlash AIR NOVA PC Case.

2. Pagrindinės savybės

• Full-Mesh Airflow System: Six-sided ventilation design maximizes airflow and cooling performance, ensuring stable system temperatures.
• E-ATX Compatibility & Dual Radiator Support: Supports E-ATX, ATX, and M-ATX motherboards. Accommodates two 360 mm radiators (top and front) for cooling flexibility.
• Vertical GPU Installation Ready: Includes a dedicated vertical GPU mount and reinforced metal support bracket to prevent GPU sag.
• Back-Connect Motherboard Compatible: Supports next-generation back-connect motherboards for a cleaner cable layout and improved airflow.
• Flexible Storage & Spacious PSU Chamber: Features an adjustable HDD cage for flexible positioning and larger PSU installation. The extended PSU chamber provides ample room for cables.
• Iš anksto įdiegti ventiliatoriai: Comes with 7 x PWM ARGB fans included for immediate cooling performance.

Figure 2: Optimized airflow system for efficient cooling.

3. Sąranka ir diegimas

3.1 Komponentas baigtasview

Familiarize yourself with the case layout and included components before starting assembly.

Figure 3: Internal layout with pre-installed fans and key dimensions.

3.2 Pagrindinės plokštės montavimas

The AIR NOVA supports E-ATX, ATX, and M-ATX motherboards. Install standoffs as required for your motherboard size. For back-connect motherboards, ensure proper alignment with the case's cutouts.

Figure 4: Back-connect motherboard support areas for a cleaner build.

3.3 Maitinimo šaltinio ir saugyklos įrengimas

Install your ATX power supply in the dedicated chamber. The adjustable HDD cage allows for flexible positioning to accommodate larger PSUs or optimize cable routing.

Figure 5: Power supply and adjustable hard disk bay positions.

3.4 Vaizdo plokštės diegimas

The case supports both standard horizontal and vertical GPU mounting. A dedicated vertical GPU mount and reinforced metal support bracket are included to prevent sag.

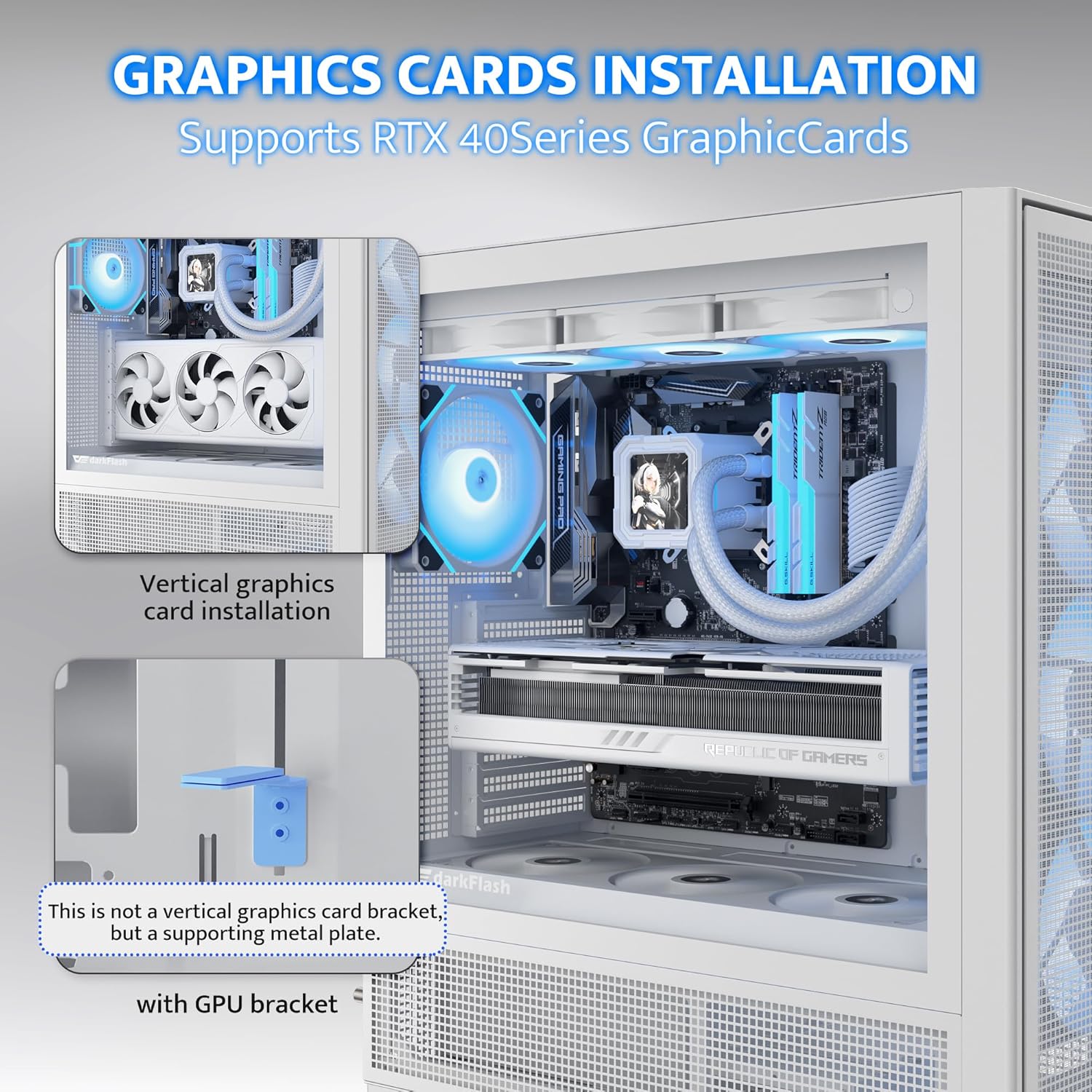

Figure 6: Vertical graphics card installation with supporting bracket.

3.5 Aušinimo sistemos įrengimas

The case supports up to two 360mm radiators (top and front). Ensure proper fan orientation for optimal airflow (intake/exhaust). The case comes with 7 pre-installed PWM ARGB fans.

3.6 Kabelių valdymas

Utilize the movable and raised cable cover panel, offset fan mounting, and lowered bottom fan design for efficient cable routing. Velcro straps and cable clips are provided to secure cables.

Figure 7: Cable management features including clips and straps.

3.7 Surinkimas baigtasview Vaizdo įrašas

Watch this video for a visual guide on the darkFlash AIR NOVA PC case features and assembly process.

4. Operacija

4.1 Įjungimas

Once all components are securely installed and connected, press the power button located on the top I/O panel to start your system.

4.2 Priekinis įvesties / išvesties skydelis

Priekinis įvesties / išvesties skydelis suteikia patogią prieigą prie svarbiausių prievadų:

• Maitinimo mygtukas
• Atkūrimo mygtukas
• USB 3.0 prievadai (x 2)
• HD Audio Jacks
• Type-C Port (1280MB/s)

Figure 8: Front I/O panel layout and connections.

4.3 Ventiliatoriaus valdymas

The pre-installed PWM ARGB fans can be controlled via your motherboard's fan headers and compatible software for speed and lighting adjustments. Refer to your motherboard manual for specific instructions.

5. Priežiūra

5.1 Dulkių filtro valymas

Regularly clean the dust filters to maintain optimal airflow and prevent dust buildup inside the case. The AIR NOVA features easily removable dust filters on multiple sides.

• Viršutinis filtras: Gently slide out the magnetic filter from the top panel.
• Priekinis filtras: The front panel grid has a non-removable metal dust mesh. Use compressed air or a soft brush to clean.
• Apatinis filtras: Slide out the filter located at the bottom of the case.
• Side Filters: The side panels feature mesh designs. Clean with compressed air or a soft brush.

Figure 9: Locations of various dust filters for easy maintenance.

5.2 Išorės valymas

Išorinius paviršius nuvalykite minkšta, damp šluoste. Venkite abrazyvinių valiklių ar tirpiklių, kurie gali pažeisti apdailą.

6. Problemų sprendimas

6.1 Sistema neįsijungia

• Įsitikinkite, kad maitinimo šaltinis tinkamai prijungtas prie sieninio lizdo, o maitinimo jungiklis ant PSU yra „ĮJUNGTA“ padėtyje.
• Verify all power cables (24-pin ATX, CPU, GPU) are securely connected to the motherboard and components.
• Patikrinkite, ar priekinio skydelio maitinimo jungiklio kabelis tinkamai prijungtas prie pagrindinės plokštės priekinio skydelio jungties.

6.2 Ventiliatoriai nesisuka arba neveikia RGB

• Confirm that all fan power cables are connected to appropriate fan headers on the motherboard or a fan controller.
• Ensure ARGB cables are correctly connected to 3-pin 5V ARGB headers on the motherboard (do not connect to 4-pin 12V RGB headers).
• Check motherboard BIOS/UEFI settings or fan control software for fan speed and RGB settings.

6.3 Komponentų tinkamumo problemos

• Pagrindinė plokštė: While the case supports E-ATX, ATX, and M-ATX, always double-check your specific motherboard dimensions against the case's internal clearances.
• GPU: The case supports GPUs up to 395mm. Ensure your graphics card length is within this limit.
• Vertical GPU Mount: The case is designed to support vertical GPU installation and includes a bracket. If you encounter issues, ensure the bracket is correctly installed and compatible with your GPU.
• Radiatoriai: The case supports two 360mm radiators. Verify radiator thickness and fan configurations do not interfere with other components.

7. Specifikacijos

Figure 10: Internal component clearance and fan/radiator support.

8. Garantija ir palaikymas

8.1 Product Assurance

darkFlash provides a 1-year assurance for this computer case. This warranty covers manufacturing defects and ensures product quality for a professional user experience.

8.2 Susisiekite su palaikymo tarnyba

For technical assistance, warranty claims, or any questions regarding your darkFlash AIR NOVA PC case, please contact darkFlash customer support through their official websvetainėje arba mažmenininke, iš kurio įsigijote produktą. Kreipdamiesi į palaikymo tarnybą, turėkite po ranka pirkimo įrodymą ir produkto modelio numerį.
