Jectse 5G Mobile Hotspot User Manual

Įvadas

This manual provides detailed instructions for the setup, operation, and maintenance of your Jectse 5G Mobile Hotspot. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your user experience. Keep this manual for future reference.

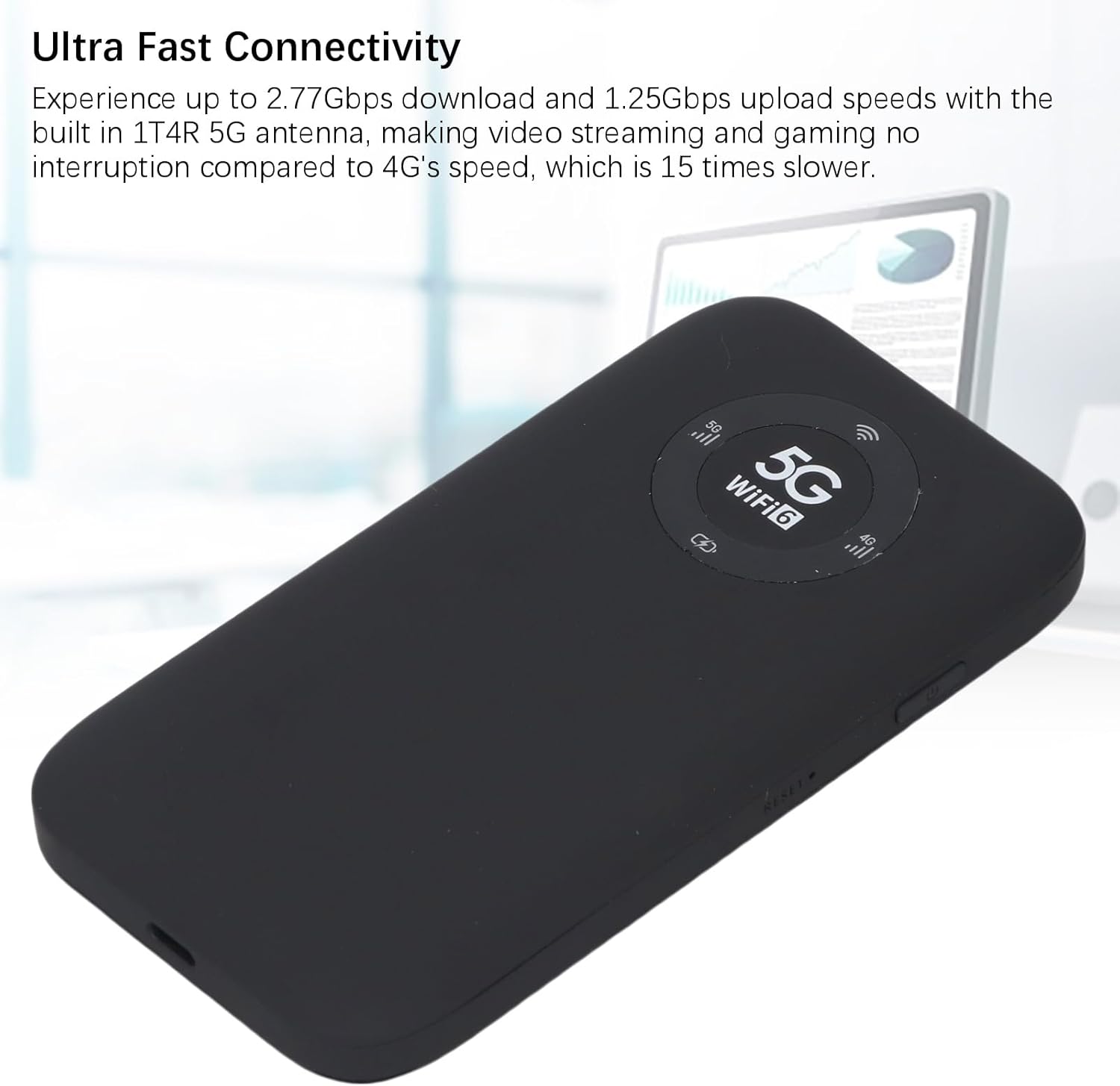

Image: The Jectse 5G Mobile Hotspot, a compact and portable device designed for high-speed 5G and WiFi 6 connectivity.

Produktas baigtasview

Pagrindinės savybės

• Ultra-Fast 5G Connectivity: Supports up to 2.77Gbps download and 1.25Gbps upload speeds with a built-in 1T4R 5G antenna.
• Extensive Network Band Support: Compatible with multiple 5G NR bands (FDD: N1, N3, N28; TDD: N41, N78) and 4G bands (TDD LTE: B34, 38, 39, 40, 41; FDD LTE: B1, B3, B5, B8), and 3G band B1.
• Dviejų dažnių „WiFi 6“: Offers 2.4GHz and 5.8GHz WiFi connectivity (802.11 a/b/g/n/ac/ax protocols) for up to 16 devices simultaneously.
• Ilgai veikianti baterija: Equipped with a 7100mAh Li-Ion battery for extended use.
• Tvirtas dizainas: Features an IP67 rating, making it drop-proof, dust-proof, and rain-proof.
• User-Friendly LED Display: Provides information on data usage, signal strength, WiFi credentials, and device settings.
• SIM kortelės lizdas: Supports SIM card compatibility for ease of setup (SIM card not included).

Pakuotės turinys

Produkto paketą sudaro:

• 1 x Jectse 5G Mobile Hotspot
• 1 x USB laidas (C tipo)
• 1 x Naudotojo vadovas (šis dokumentas)
• 1 x SIM Card Eject Pin

Image: The Jectse 5G Mobile Hotspot device shown alongside its included USB-C charging cable and a SIM card eject pin.

Sąrankos vadovas

1. SIM kortelės montavimas

1. Įsitikinkite, kad įrenginys išjungtas.
2. Locate the SIM card slot on the side of the hotspot.
3. Insert the provided SIM eject pin into the small hole next to the SIM card tray. Press gently until the tray pops out.
4. Place your activated Nano-SIM card into the tray with the gold contacts facing down and the notched corner aligned correctly.
5. Carefully push the SIM card tray back into the slot until it clicks into place.

2. Įrenginio įkrovimas

1. Connect the USB-C cable to the charging port on the hotspot.
2. Kitą USB laido galą prijunkite prie suderinamo USB maitinimo adapterio (nepridedamas) arba kompiuterio USB prievado.
3. The LED indicator on the device will show charging status. A full charge is recommended before first use.

3. Įjungimas/išjungimas

• Norėdami įjungti: Press and hold the Power button (usually located on the side) for a few seconds until the screen or LED indicators light up.
• Norėdami išjungti: Press and hold the Power button until the device prompts you to power off or the indicators turn off.

Naudojimo instrukcijos

1. Įrenginių prijungimas prie interneto prieigos taško

1. Ensure the Jectse 5G Mobile Hotspot is powered on.
2. On your WiFi-enabled device (smartphone, laptop, tablet), open the WiFi settings.
3. Scan for available WiFi networks.
4. Select the network name (SSID) displayed on your hotspot's screen or indicated in the manual.
5. Enter the WiFi password (Key) displayed on the hotspot's screen or in the manual.
6. Once connected, your device will have internet access through the hotspot. Up to 16 devices can be connected simultaneously.

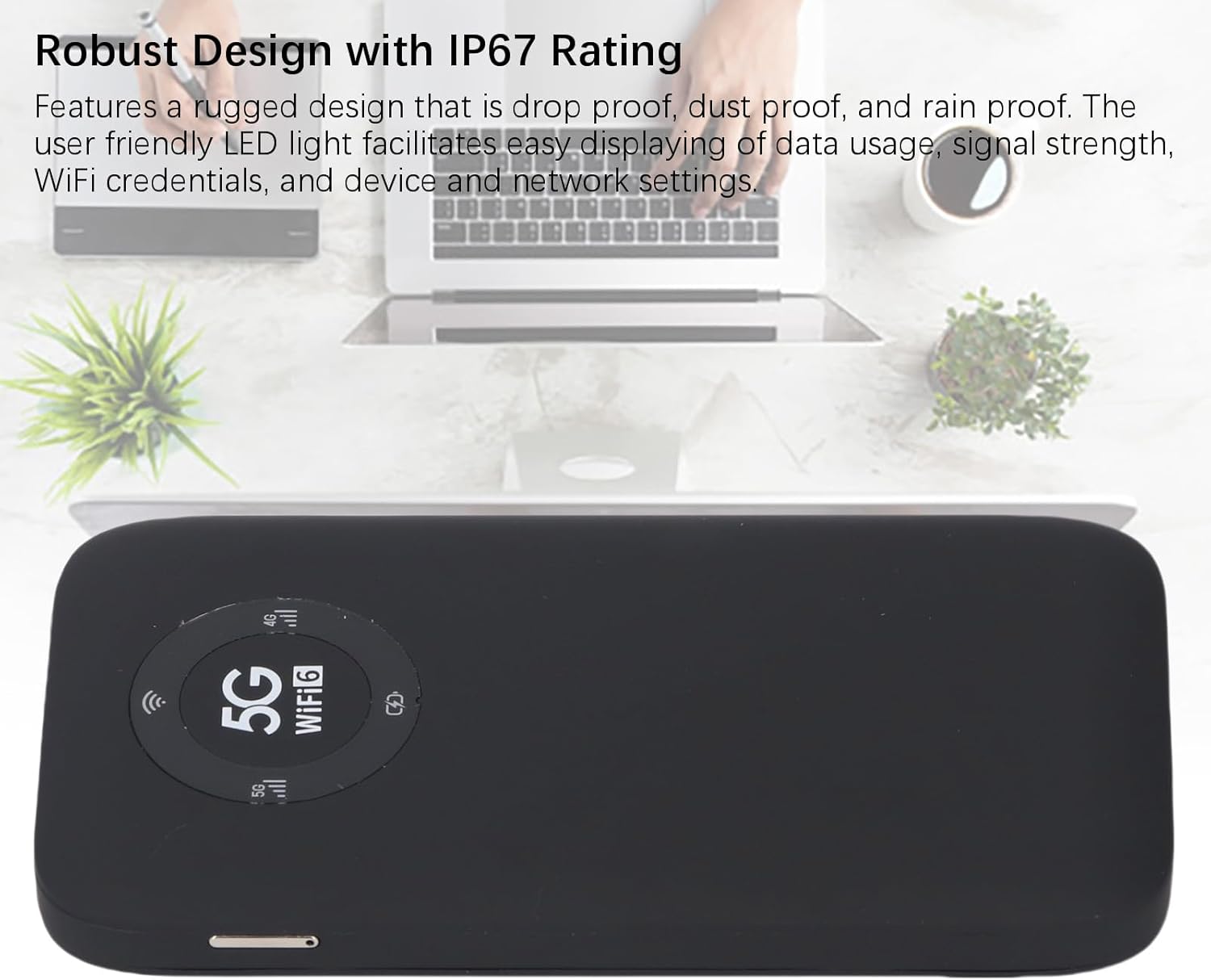

Image: The Jectse 5G Mobile Hotspot showing its display with 5G and WiFi 6 indicators, ready for device connection.

2. LED indikatorių supratimas

The device features an LED light display that provides essential information:

• Signalo stiprumas: Indicates the strength of the 5G/4G cellular signal.
• Baterijos lygis: Rodo dabartinę akumuliatoriaus įkrovos būseną.
• WiFi būsena: Confirms if WiFi is active and broadcasting.
• Duomenų naudojimas: May display current data consumption (check device interface for details).
• Tinklo tipas: Indicates whether the device is connected to a 5G or 4G network.

Image: A close-up of the Jectse 5G Mobile Hotspot's LED display, highlighting the 5G and WiFi 6 indicators, along with signal and battery icons.

3. Prieiga Web Management Interface (if applicable)

For advanced settings and configuration, you may access the device's web valdymo sąsaja:

1. Connect your computer or smartphone to the hotspot's WiFi network.
2. Atidarykite a web browser and enter the default IP address (e.g., 192.168.0.1 or 192.168.1.1). This address is usually found on a sticker inside the SIM card slot or in the quick start guide.
3. Enter the default username and password (also typically found on the device sticker or in documentation).
4. Iš web interface, you can manage WiFi settings, change passwords, view connected devices, and monitor data usage.

Priežiūra

Akumuliatoriaus priežiūra

• Venkite prietaiso laikymo ekstremaliose temperatūrose (žemesnėje nei 0 °C arba aukštesnėje nei 45 °C).
• Nepalikite prietaiso ilgam laikui visiškai išsikrovusio.
• Ilgalaikiam laikymui įkraukite akumuliatorių maždaug iki 50–70 %.
• Įkrovimui naudokite tik pateiktą USB laidą.

Valymas

• Nuvalykite įrenginį minkštu, sausu, nepūkuotu skudurėliu.
• Nenaudokite skystų valiklių, aerozolių ar tirpiklių.
• Įsitikinkite, kad visuose prievaduose nėra dulkių ir šiukšlių.

Trikčių šalinimas

Specifikacijos

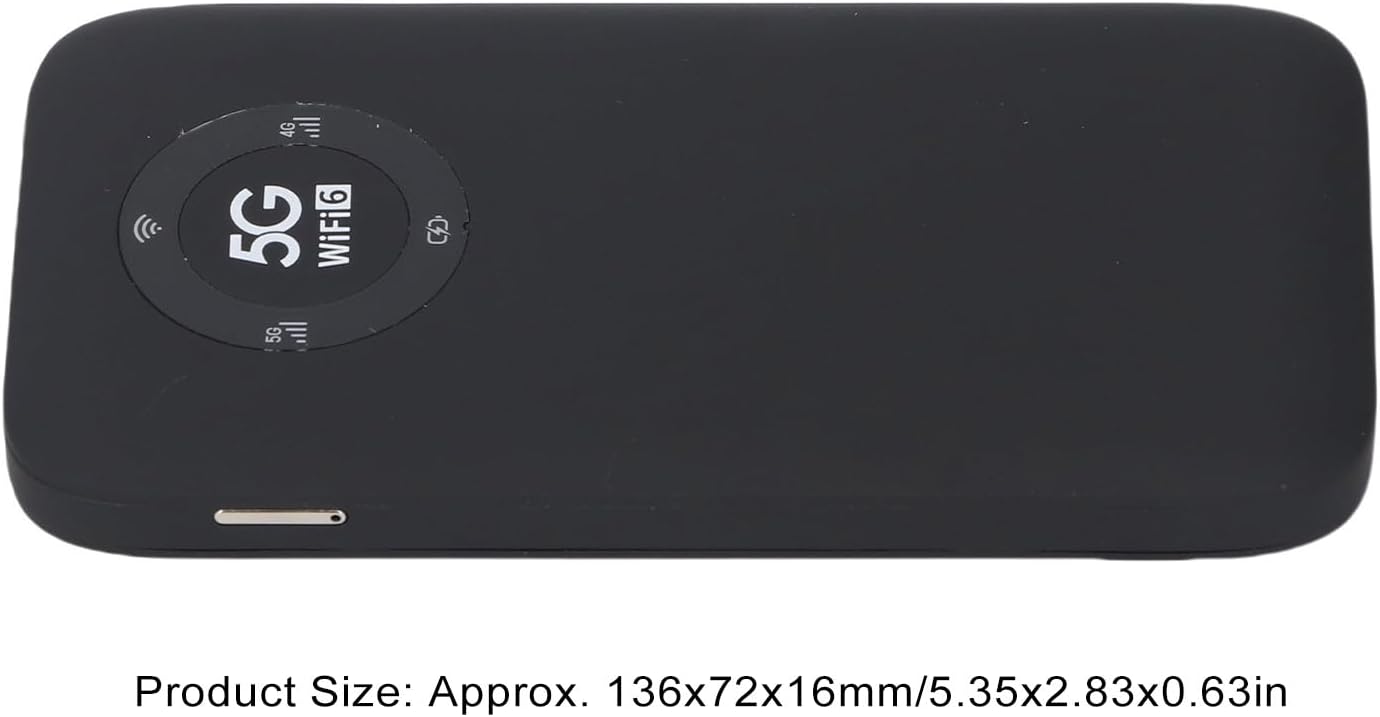

Image: The Jectse 5G Mobile Hotspot, illustrating its compact size with approximate dimensions of 136x72x16mm.

Svarbios pastabos

• Prieš pirkimąasing, ensure that your local network signal frequency band and the SIM card frequency band are compatible with the supported frequency bands of this product.
• This product does not support use in South America, Japan, and South Korea regions.

Garantija ir palaikymas

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Jectse customer service through their official channels. Specific warranty terms may vary by region and retailer.

Galite aplankyti Jectse Store on Amazon Norėdami gauti daugiau informacijos arba susisiekti su palaikymo tarnyba.
