BUUBO VC6243+ skaitmeninio išmaniojo LCR tiltinio matuoklio naudotojo vadovas

1. Įvadas

This manual provides comprehensive instructions for the safe and effective operation of the BUUBO VC6243+ Digital Intelligent LCR Bridge Meter. This handheld device is designed for precise measurement of inductance (L), capacitance (C), and resistance (R) in various electronic components. Please read this manual thoroughly before use and retain it for future reference.

1 pav.: priekis view of the BUUBO VC6243+ Digital LCR Bridge Meter, showing its display and controls.

2. Saugos informacija

To ensure safe operation and prevent damage to the meter or injury, observe the following safety precautions:

• Prieš naudodami visada patikrinkite, ar matuoklis ir bandymo laidai nėra pažeisti. Nenaudokite, jei pažeisti.
• Netaikyti ttage to the input terminals. This meter is designed for measuring passive components (L, C, R) and is not intended for live circuit measurements.
• Ensure capacitors are fully discharged before measuring capacitance. The VC6243+ features an automatic discharge function, but manual discharge is recommended for high-voltage or large capacitors.
• Do not operate the meter in environments with explosive gas, vapor, or dust.
• Replace the battery promptly when the low battery indicator appears to maintain measurement accuracy.
• Use only the specified replacement parts and accessories.

3. Produktas baigtasview

Familiarize yourself with the components of your BUUBO VC6243+ LCR Bridge Meter.

Figure 2: Labeled diagram of the VC6243+ meter's external components.

1. LCD ekranas: Displays measurement values, units, and indicators.
2. Maitinimo jungiklis: Turns the meter ON or OFF.
3. Zero Knob (ADJ): Used for manual zero adjustment before measurement.
4. Range Selection Switch: Rotary switch to select measurement function (L, C) and range.
5. Įvesties lizdas: Terminals for connecting test leads.
6. Pakabinimo anga: For convenient storage or temporary hanging.
7. Apvalkalas: Protective rubber casing.
8. Pagalbinis rėmas: Kickstand for angled viewing.
9. Baterijų skyrius: Talpina akumuliatorių.

3 pav. Baigtaview of key features including automatic discharge, zero adjustment, and auto power off.

4. Sąranka

4.1 Akumuliatoriaus įdėjimas

1. Ensure the meter is powered OFF.
2. Raskite baterijų skyrių matuoklio gale.
3. Atidarykite akumuliatoriaus skyriaus dangtelį.
4. Insert a new 9V battery, observing the correct polarity.
5. Saugiai uždarykite akumuliatoriaus skyriaus dangtelį.

4.2 Bandymo laidų prijungimas

Figure 4: The VC6243+ meter with its red and black test leads.

The meter typically comes with TL-13 test leads. Ensure they are properly connected.

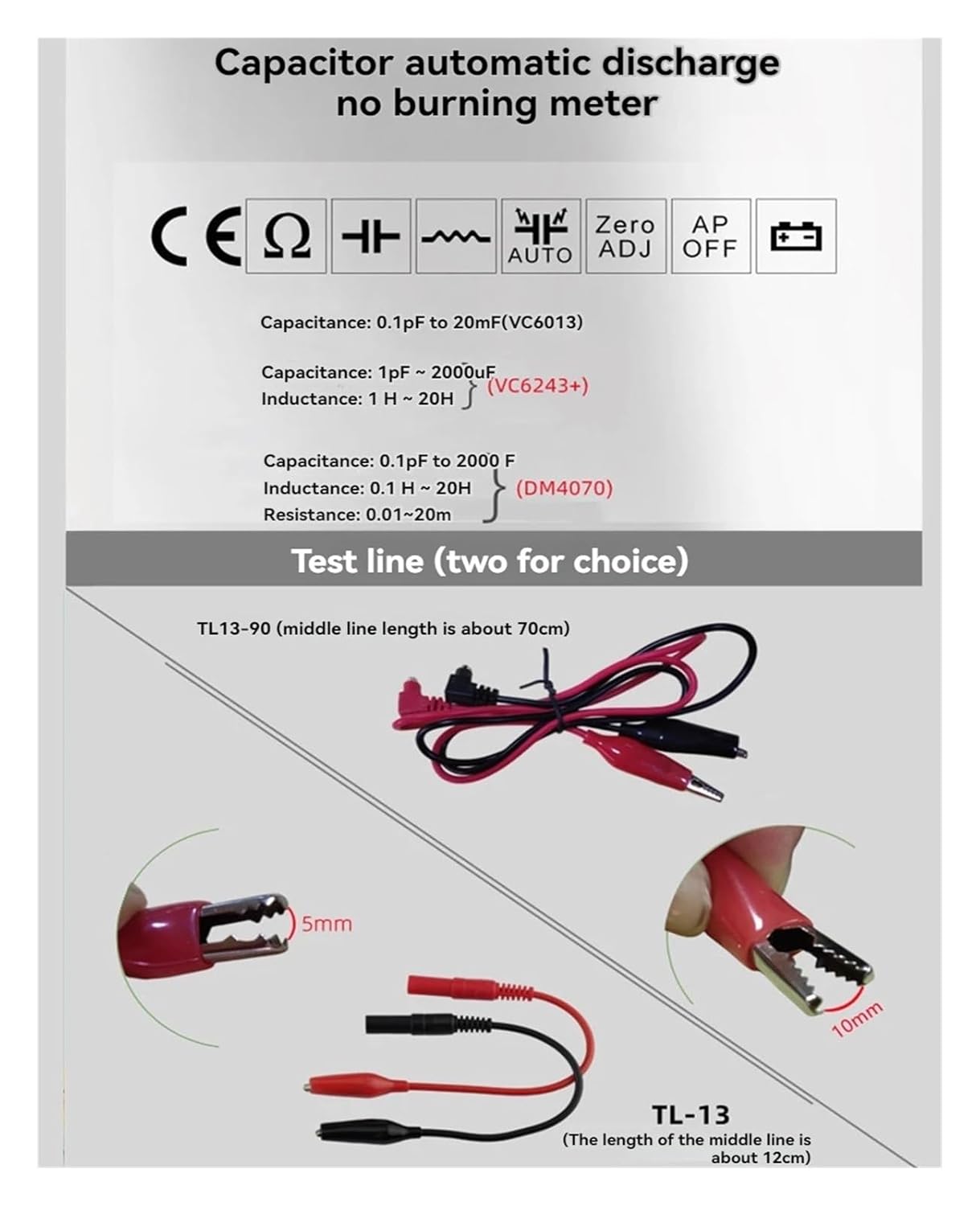

Figure 5: Different test lead options, TL13-90 (longer) and TL-13 (shorter).

1. Insert the red test lead's banana plug into the '+' input socket.
2. Insert the black test lead's banana plug into the '-' input socket.
3. Ensure the connections are firm.

5. Naudojimo instrukcijos

5.1 Įjungimas / išjungimas

• To power ON, press the 'POWER' button.
• To power OFF, press the 'POWER' button again. The meter also features an automatic power-off function to save battery.

5.2 Nulinis reguliavimas

Before making a measurement, especially for capacitance, it is crucial to perform a zero adjustment to eliminate stray capacitance or inductance from the test leads.

1. Ensure the test leads are not connected to any component and are open-circuited for inductance or short-circuited for capacitance.
2. Rotate the 'ADJ' knob until the display reads '000' or as close to zero as possible for the selected range.

5.3 Measuring Capacitance (C)

Figure 6: The meter's automatic capacitor discharge feature and capacitance measurement range.

The VC6243+ supports capacitance measurements from 1pF to 2000uF.

1. Iškrovimo kondensatorius: Ensure the capacitor to be measured is fully discharged. The meter has an automatic discharge function, but for safety, manually discharge large capacitors.
2. Pasirinkite diapazoną: Rotate the Range Selection Switch to the desired 'C' (Capacitance) range (e.g., 200pF, 2nF, 20nF, 200nF, 2uF, 20uF, 200uF, 2000uF). Start with a higher range if the capacitance value is unknown.
3. Nulinis reguliavimas: Perform zero adjustment as described in Section 5.2.
4. Connect Component: Connect the capacitor to the test leads.
5. Skaitykite matavimą: The capacitance value will be displayed on the LCD screen. Adjust the range if necessary for optimal reading.

5.4 Measuring Inductance (L)

The VC6243+ supports inductance measurements from 1uH to 20H.

1. Pasirinkite diapazoną: Rotate the Range Selection Switch to the desired 'L' (Inductance) range (e.g., 2mH, 20mH, 200mH, 2H, 20H). Start with a higher range if the inductance value is unknown.
2. Nulinis reguliavimas: Perform zero adjustment as described in Section 5.2.
3. Connect Component: Connect the inductor to the test leads.
4. Skaitykite matavimą: The inductance value will be displayed on the LCD screen. Adjust the range if necessary for optimal reading.

5.5 Measuring Resistance (R)

While the primary focus of the VC6243+ is L and C, it is an LCR bridge meter, implying resistance measurement capability. Refer to the specific resistance ranges on the rotary switch if available, or consult the detailed specifications for resistance measurement procedures.

6. Priežiūra

6.1 Valymas

• Nuvalykite skaitiklio casing su reklamaamp skudurėliu ir švelniu plovikliu. Nenaudokite abrazyvinių valiklių ar tirpiklių.
• Ensure no moisture enters the meter's internal components.

6.2 Akumuliatoriaus keitimas

Replace the battery when the low battery indicator appears on the LCD. Refer to Section 4.1 for battery installation instructions.

7. Problemų sprendimas

• Matuoklis neįsijungia: Check battery installation and ensure the battery has sufficient charge.
• Netikslūs rodmenys: Perform zero adjustment. Ensure test leads are properly connected. Verify the component is fully discharged (for capacitors). Select the appropriate measurement range.
• Nėra ekrano: Check battery. If the issue persists, contact support.
• 'OL' or 'OVER' displayed: The measured value exceeds the selected range. Switch to a higher range.

8. Specifikacijos

Figure 7: Physical dimensions and various views of the VC6243+ meter.

9. Garantija ir palaikymas

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the retailer/manufacturer directly. Keep your purchase receipt as proof of purchase.
