Bellemave Twin Over Twin Over Twin Bunk Bed with Storage Stairs Instruction Manual

Svarbi saugos informacija

Please read all instructions carefully before assembly and use. Failure to follow these instructions can result in serious injury.

• Always assemble and secure the bed to the wall using the provided Anti-Tipping Nails to prevent tipping and ensure safety.
• Do not exceed the maximum weight capacity of 300 lbs (approximately 136 kg) per bed.
• Ensure all connections are securely tightened before use and check periodically.
• Only use mattresses that comply with the recommended dimensions for twin beds.
• Viršutinė dviaukštė lova netinka vaikams iki 6 metų amžiaus.
• Always use the provided guardrails on the upper bunks.
• Neleiskite šokinėti ant lovos.

Produktas baigtasview

The Bellemave Twin Over Twin Over Twin Bunk Bed with Storage Stairs is a heavy-duty metal bed frame designed to maximize space in multi-child households or for accommodating guests. This triple bunk bed features a robust steel construction with a powder-coated finish for durability. It includes integrated storage stairs for easy access to the upper bunks and additional storage, along with a shelf on the upper bed for convenience. The design eliminates the need for a box spring, providing strong support for mattresses.

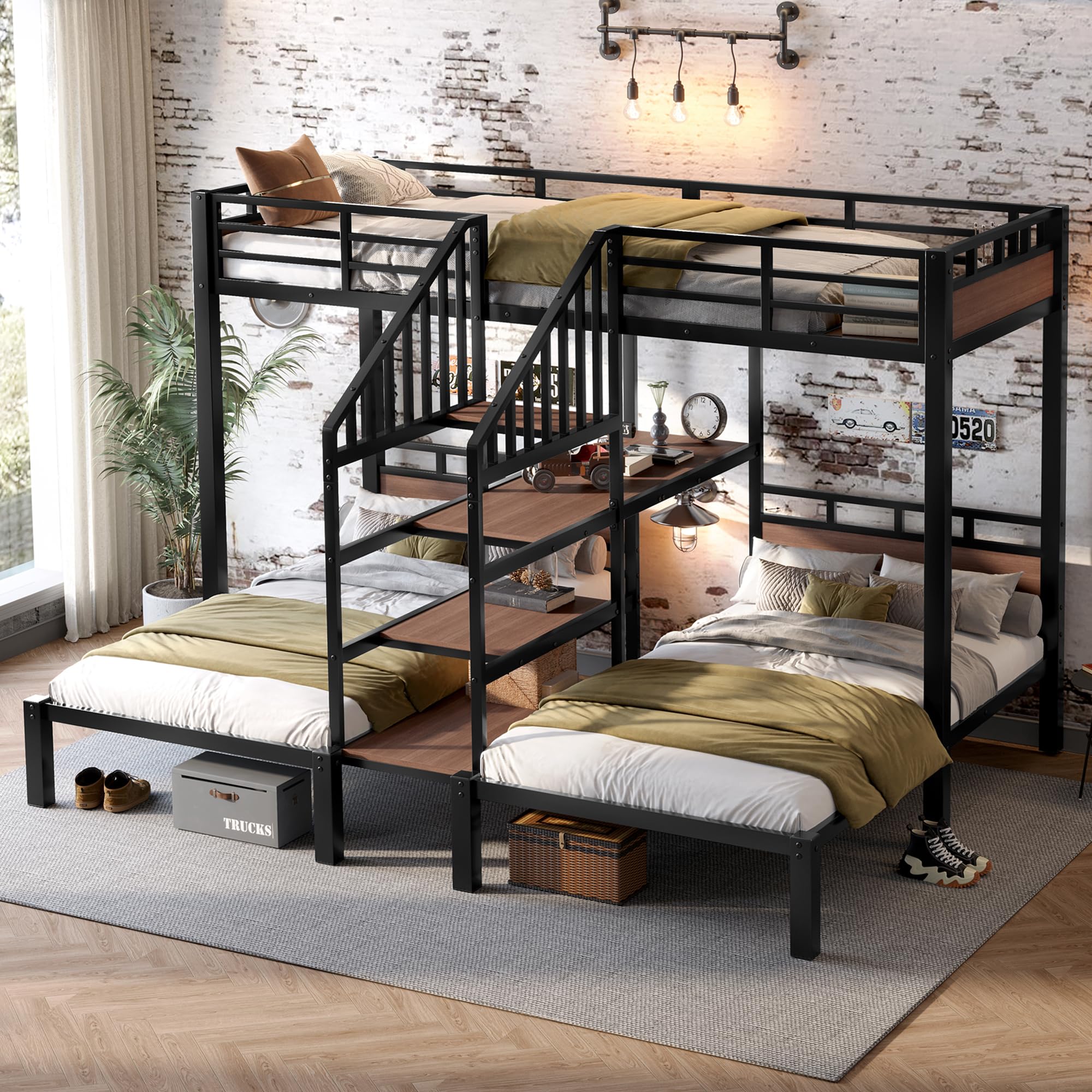

Figure 1: Fully assembled Bellemave Twin Over Twin Over Twin Bunk Bed with Storage Stairs.

Gaminio matmenys

Refer to the diagram below for detailed product dimensions to ensure proper fit within your space.

Figure 2: Product dimensions (Length: 97", Width: 77.5", Height: 65.5").

Surinkimo instrukcijos

This bunk bed requires assembly. It is recommended that two adults assemble this product. Ensure all parts are present and undamaged before beginning. Tools for assembly are included. The assembly process is detailed in the video below.

Žingsnis po žingsnio surinkimo vadovas:

1. Paruoškite komponentus: Unpack all components and verify against the parts list in your included manual. Ensure you have all necessary hardware.
2. Assemble Lower Bed Frames: Begin by assembling the headboards and footboards for the two lower twin beds. Attach the side rails and then install the metal slats to form the mattress support. (Refer to video: 0:00 - 0:23)
3. Connect Lower Beds: Connect the two lower bed frames using the central support beams and the wooden panel that forms the base of the storage stairs. Secure all connections with the provided bolts. (Refer to video: 0:24 - 0:30)
4. Vertikalių atramų įrengimas: Attach the vertical support posts to the corners of the lower bed frames to prepare for the upper bunks. (Refer to video: 0:31 - 0:36)
5. Assemble Upper Bed Frames: Attach the upper bed frames to the vertical support posts. Ensure these are securely fastened. Install the metal slats for the upper bunks. (Refer to video: 0:37 - 1:02)
6. Construct Storage Stairs: Assemble the frame for the storage stairs. Attach the stair railings and then install the wooden steps, which also serve as storage shelves. (Refer to video: 1:03 - 1:27)
7. Attach Storage Stairs and Upper Shelf: Securely attach the completed storage stairs unit to the main bed frame. Install the small shelf on the upper bunk. (Refer to video: 1:28 - 1:46)
8. Final Tightening and Wall Anchoring: Once all components are in place, re-check and tighten all bolts. Finally, use the provided anti-tipping nails to securely fasten the bed frame to the wall.

Naudojimo gairės

• Čiužinių suderinamumas: This bed is designed for twin-size mattresses. Ensure your mattresses fit within the frame dimensions and do not exceed the recommended thickness for the upper bunks to maintain guardrail effectiveness.
• Svorio talpa: Each bed has a maximum weight capacity of 300 lbs. Do not exceed this limit.
• Prieiga: Always use the provided stairs for accessing the upper bunks. Do not climb on the frame or guardrails.
• Saugykla: The storage stairs are designed for lightweight items such as books, toys, or clothing. Do not overload the shelves.

Priežiūra

• Valymas: Nuvalykite metalinį rėmą reklamaamp cloth and mild detergent. Avoid abrasive cleaners. The wooden panels can be cleaned with a dry or slightly damp audinys.
• Aparatinės įrangos patikrinimas: Periodiškai patikrinkite visus varžtus ir sraigtus, kad jie būtų tvirtai priveržti. Prireikus priveržkite, kad išlaikytumėte stabilumą ir saugumą.
• Struktūrinis vientisumas: Inspect the bed frame regularly for any signs of damage, wear, or loose components. Discontinue use if any structural damage is found and contact customer support.

Trikčių šalinimas

Specifikacijos

Garantija ir palaikymas

For warranty information, missing parts, or technical support, please refer to your purchase documentation or contact Bellemave customer service directly. Keep your proof of purchase for any warranty claims.
