Įvadas
The AVAPOW 8000A Portable Battery Jumper Starter is a versatile device designed to jump-start 12V vehicles, including cars, trucks, SUVs, RVs, motorcycles, and boats. It features a high peak current for quick starts, smart clamps with multiple safety protections, a 4-inch HD display for real-time feedback, and dual-way fast charging capabilities. This manual provides essential information for safe and effective use, maintenance, and troubleshooting.
Produkto savybės
- Real 8000A Peak Current: Capable of starting 12V vehicles in just 3 seconds, suitable for all gas engines and diesel engines up to 10L. Built with top-grade ternary lithium cells and a durable ABS+PC casing for extreme conditions.
- Safe & Easy Smart Clamps: Features exclusive built-in jump clamps and an advanced Battery Management System (BMS) with 12 layers of protection, including overcurrent, short-circuit, and reverse polarity.
- 4" Smart HD Display: Provides real-time feedback on battery level, charging status, clamp status, and error alerts for clear operation.
- PD 30W Dual-Way Fast Charging: Offers quick charging for the unit itself and can power external devices via USB-C and USB-A outputs.
- Integruota LED lemputė: Includes an LED light for illumination during nighttime or low-light situations.
Pakuotės turinys
The AVAPOW 8000A Jumper Starter package typically includes the following items:
- AVAPOW 8000A Jumper Starter Unit
- Smart Jumper Clamps
- USB-C įkrovimo laidas
- 12V DC Output Adapter (Cigarette Lighter Socket)
- Vartotojo vadovas
- Sandėliavimo dėklas
The image above displays the complete package contents, including the main jumper starter unit, the smart jumper clamps, a USB-C charging cable, a 12V DC output adapter, and a protective carrying case. The user manual is also included for detailed instructions.
Produktas baigtasview

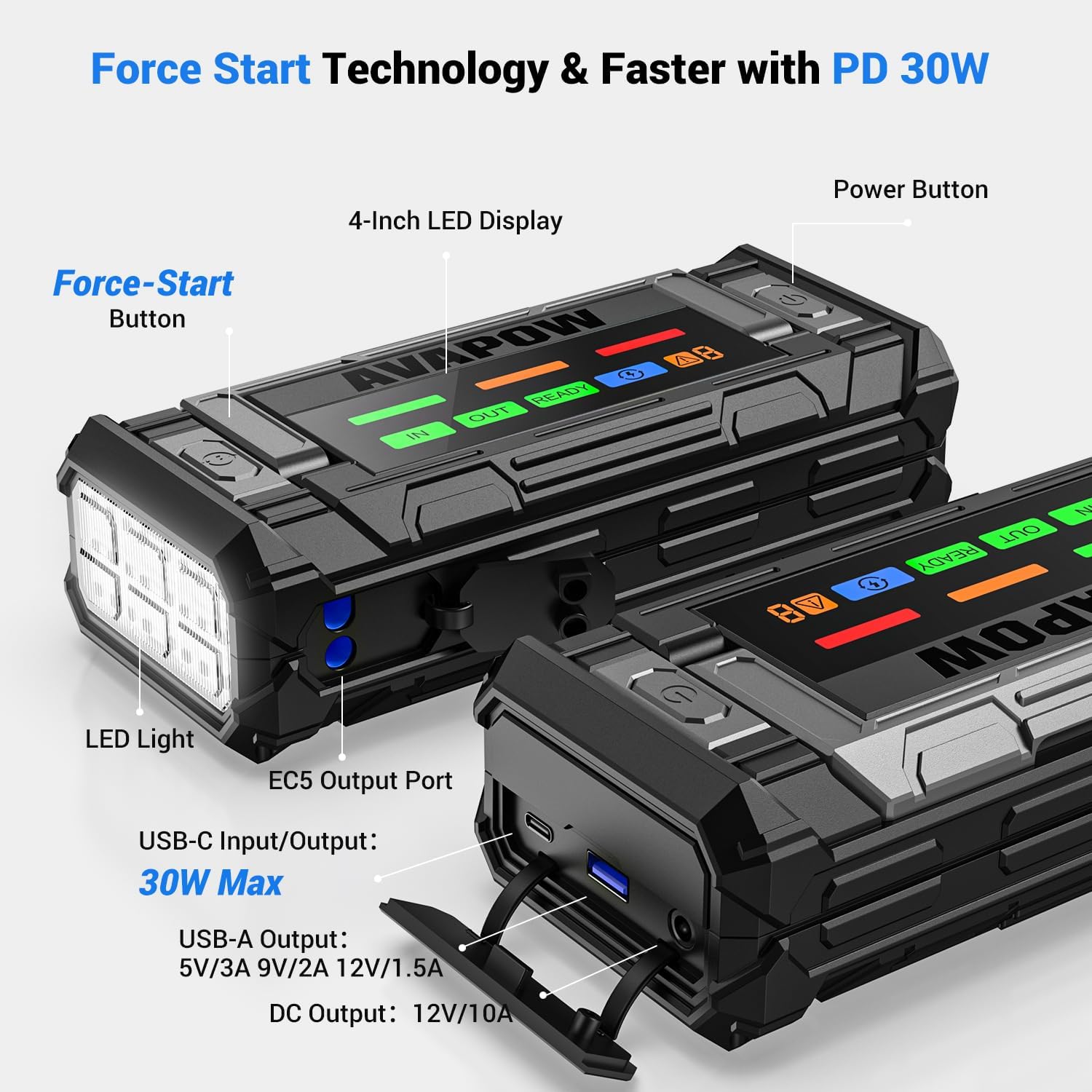

Familiarize yourself with the various components and ports of your AVAPOW 8000A Jumper Starter.
- Maitinimo mygtukas: Used to turn the unit on/off and activate the LED light.
- USB-C Input/Output (PD 30W Max): For charging the jumper starter and for fast charging compatible external devices.
- USB-A Output (5V/3A, 9V/2A, 12V/1.5A): Skirta išmaniesiems telefonams, planšetiniams kompiuteriams ir kitiems įrenginiams, maitinamiems per USB, įkrauti.
- Nuolatinės srovės išvestis (12 V / 10 A): For powering 12V accessories using the provided adapter.
- EC5 išvesties prievadas: Connects to the smart jumper clamps transporto priemonės užvedimui.
- LED šviesa: Provides illumination with multiple modes (steady, SOS, strobe).
- 4-Inch Smart Display: Rodo akumuliatoriaus procentątage, charging status, clamp status, and error indicators.
The smart display features color-coded indicators for battery level (Green: 100%-60%, Orange: 60%-20%, Red: 20%-0%), charging (IN), powering external devices (OUT), activation start (READY), forced start, and fault detection.
Sąranka ir įkrovimas
Before first use, fully charge the AVAPOW 8000A Jumper Starter. It is recommended to keep the unit charged above 50% for optimal performance and longevity.
- Connect the USB-C charging cable to the USB-C Input/Output port on the jumper starter.
- Connect the other end of the USB-C cable to a compatible PD 30W wall adapter (not always included) or a car charger.
- The 4-inch smart display will show "IN" and the battery level will increase as it charges.
- Charging time is approximately 3-6 hours with a 5V/3A Type-C input.
Ensure the device is charged to at least 50% before attempting to jump-start a vehicle.
Naudojimo instrukcijos
1. Normal Jump Start Procedure
- Ensure the jumper starter unit is charged above 50%.
- Įkiškite išmanųjį trumpiklį clamps into the EC5 output port on the jumper starter. The display will show a blue light indicating standby.
- Prijunkite RAUDONA clamp prie teigiamo (+) automobilio akumuliatoriaus gnybto.
- Prijunkite JUODAS clamp prie neigiamo (-) automobilio akumuliatoriaus gnybto.
- Once connected correctly, the smart display will show a green light ("READY"), indicating it's safe to start the vehicle.
- Užveskite savo transporto priemonės variklį.
- After the vehicle starts, immediately remove the smart jumper clamps from the vehicle battery, then disconnect them from the jumper starter unit.
2. Force Start Procedure (for completely dead batteries)
If the vehicle battery is completely dead (voltage below 2V) and the "READY" indicator does not light up, you may need to use the Force Start function.
- Follow steps 1-4 of the Normal Jump Start Procedure to connect the clamps to the battery and the jumper starter.
- Long-press the "Force Start" button on the smart clamps for 3 seconds until the middle indicator light turns green.
- Užveskite savo automobilio variklį per 30 sekundžių.
- After the vehicle starts, immediately remove the smart jumper clamps from the vehicle battery, then disconnect them from the jumper starter unit.
3. LED lemputės naudojimas
The integrated LED light can be used for illumination or as a signal in emergencies.
- Įjungti/išjungti: Long-press the power button on the jumper starter for 3 seconds.
- Keisti režimus: Short-press the power button to cycle through modes: Steady On, SOS, Strobe.
Priežiūra
- Reguliarus įkrovimas: Įkraukite įrenginį kas 3–6 mėnesius, net jei jo nenaudojate, kad palaikytumėte akumuliatoriaus veikimo laiką.
- Saugykla: Store the jumper starter in a cool, dry place, away from direct sunlight and extreme temperatures.
- Valymas: Įrenginiui valyti naudokite minkštą, sausą šluostę. Nenaudokite stiprių cheminių medžiagų ar abrazyvinių medžiagų.
- Baterijos lygis: Always ensure the device is at least 50% charged before use.
Trikčių šalinimas
The smart display and clamps provide indicators for common issues:
| Rodiklis | Problema | Sprendimas |
|---|---|---|
| Red Light (LC) | Mažos talpos | Please charge the jumper starter. |
| Red Light (RC) | Atvirkštinis ryšys | Exchange positive and negative poles of the jumper clamp. |
| Red Light (HT) | Aukšta temperatūra | Please wait 5 minutes before starting the car. |
| No Output / Alarm Sound | Trumpojo jungimo apsauga | Ensure correct connection and check for any short circuits. |
| Blue Light (LED) stays on for >40s | Paleiskite apsaugą nuo skirtojo laiko | Atjunkite ir vėl prijunkite clamps, tada bandykite dar kartą. |
If the above solutions do not resolve the issue, please contact AVAPOW customer support.
Specifikacijos
- Modelis: TJ58 (8000A Peak Current)
- Pradėti Voltage: 12 V
- Didžiausia srovė: 8000A
- Suderinamumas su varikliu: All Gas Engines, up to 10L Diesel Engines
- USB-C įvestis / išvestis: PD 30W (5V/3A, 9V/2A, 12V/1.5A)
- USB-A išėjimas: 5V/3A, 9V/2A, 12V/1.5A)
- DC išėjimas: 12V/10A
- LED šviesa: 1W Balta
- Darbinė temperatūra: -10°C iki +60°C
- Laikymo temperatūra: -10°C iki +60°C
- Ciklo trukmė: >1000 kartų
Saugos informacija
- Do NOT start any engines that exceed the maximum displacement the jump starter can bear.
- Do NOT crank the engine for more than 3 seconds.
- Allow the jump starter to cool down for at least 1 minute between each starter attempt.
- Ensure the device is at least 50% charged before use.
- Do NOT attempt to jump start vehicles with a higher battery rating or different voltage nei 12V.
- NENAUDOKITE CLamps in an environment full of flammable gas.
- Laikyti vaikams nepasiekiamoje vietoje.
- Avoid disassembling the unit.
Garantija ir palaikymas
For warranty information, technical support, or any inquiries regarding your AVAPOW 8000A Jumper Starter, please refer to the contact details provided in your product packaging or visit the official AVAPOW websvetainę. Išsaugokite pirkimo čekį garantiniams reikalavimams.
