1. Įvadas
Thank you for choosing the V-Guard VIC01 V2 Induction Cook-top. This appliance is designed for efficient and convenient cooking with its 1200 Watt power, digital display, and soft switch controls. Please read this manual thoroughly before operating the cook-top to ensure safe and optimal performance. Keep this manual for future reference.

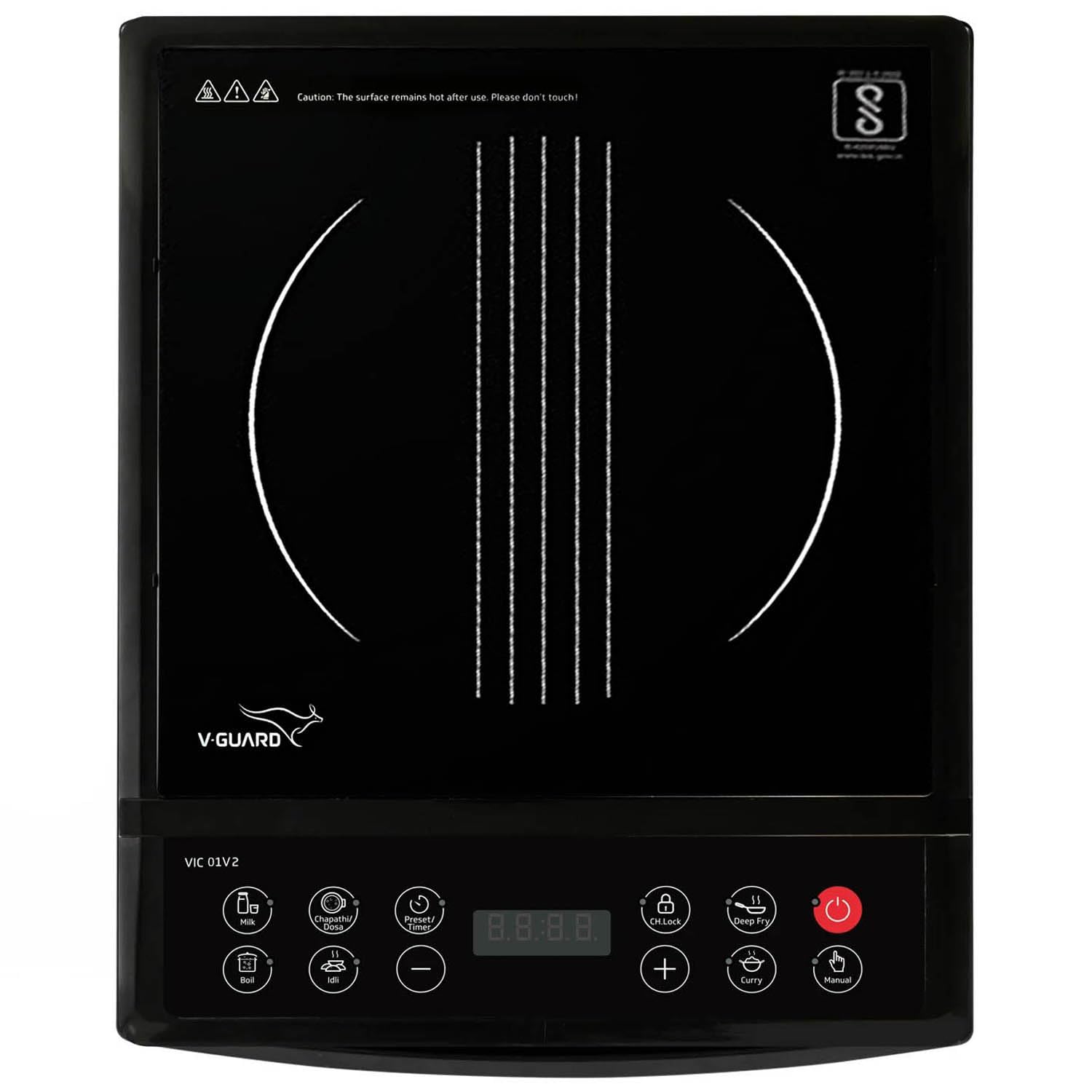

Image: The V-Guard VIC01 V2 Induction Cook-top, showcasindėl savo elegantiško juodo dizaino ir valdymo skydelio.
2. Svarbios saugos instrukcijos
Siekiant sumažinti gaisro, elektros smūgio, sužalojimo asmenims ar prietaiso sugadinimo riziką, visada reikia laikytis pagrindinių saugos priemonių, įskaitant šias:
- Prieš naudodami prietaisą, atidžiai perskaitykite visas instrukcijas.
- Nelieskite karštų paviršių. Naudokite rankenas arba rankenėles.
- Kad apsisaugotumėte nuo elektros smūgio, nemerkite laido, kištukų ar prietaiso į vandenį ar kitą skystį.
- Atidžiai prižiūrėti būtina, kai bet kurį prietaisą naudoja vaikai arba jį naudoja šalia vaikų.
- Ištraukite kištuką iš elektros lizdo, kai nenaudojate ir prieš valydami. Prieš uždėdami arba nuimdami dalis, leiskite atvėsti.
- Nenaudokite prietaiso, kurio laidas ar kištukas pažeistas, arba po to, kai prietaisas neveikia arba buvo kaip nors sugadintas.
- Prietaiso gamintojo nerekomenduojamų priedų naudojimas gali susižaloti.
- Nenaudoti lauke.
- Neleiskite laidui kaboti virš stalo ar prekystalio krašto ir neliesti karštų paviršių.
- Nedėkite ant įkaitusios dujinės ar elektrinės viryklės ar šalia jos, taip pat į įkaitintą orkaitę.
- Perkeliant prietaisą, kuriame yra karšto aliejaus ar kitų karštų skysčių, reikia būti ypač atsargiems.
- Visada pirmiausia prijunkite kištuką prie prietaiso, o tada įjunkite laidą į elektros lizdą. Norėdami atjungti, išjunkite bet kurį valdiklį ir ištraukite kištuką iš elektros lizdo.
- Nenaudokite prietaiso ne pagal paskirtį.
- Ensure proper ventilation around the cook-top during operation.
- Naudokite tik indukcinėms viryklėms tinkamus indus.
Image: Visual representation of key safety features including Cool Touch Surface, Automatic Voltage Regulation, and Aerodynamic Cooling System.
Image: Icons highlighting 3KV Surge Protection and 3 Years Induction Coil Coverage for enhanced durability and peace of mind.
3. Produktas baigtasview ir Savybės
The V-Guard VIC01 V2 Induction Cook-top is equipped with advanced features for a superior cooking experience.
Pagrindinės funkcijos:
- 1200 vatų galia: Provides rapid heating for efficient cooking.
- 7 Levels of Power and Temperature Setting: Užtikrina tikslų kepimo intensyvumo valdymą.
- Soft Switch Controls: User-friendly and durable control panel.
- 4 Digit LED Display: Clear indication of settings and status.
- 7 Cook Modes: Pre-programmed settings for various dishes.
- 4 Hour Timer Function: Allows setting cooking duration.
- 24 Hour Preset Function: Schedule cooking to start at a later time.
- Hi-Low Voltage Atjungimas: Apsaugo prietaisą nuo garsotage svyravimai.
- 3 KV Surge Protection: Apsaugos priemonės nuo įtampos šuolių.
- ttage Rodiklis: Rodo dabartinį tūrįtage.
- Cool Touch Surface: Enhances safety during and after cooking.
- Aerodynamic Cooling System: Ensures fast cooling for extended product life and safety.
- Keptuvės jutiklis: Detects suitable cookware and prevents operation without a pan.
- Automatinis išjungimas: Automatically switches off after a period of inactivity or if no pan is detected.
- Easy-to-Clean Glass Top: Supaprastina priežiūrą.
- Stable Anti-Skid Feet: Užtikrina stabilumą naudojimo metu.
Vaizdas: Viršview of smart cooking features including multiple cooking modes, high power, adjustable temperature/power, and pre-set function.
4. Sąranka ir pirmasis naudojimas
Išpakavimas:
- Carefully remove the cook-top from its packaging.
- Patikrinkite, ar transportavimo metu nebuvo pažeista. Jei pažeista, nenaudokite ir susisiekite su klientų aptarnavimo tarnyba.
- Nuimkite nuo prietaiso visas pakavimo medžiagas, lipdukus ir etiketes.
Vieta:
- Place the cook-top on a flat, stable, heat-resistant surface.
- Ensure there is adequate ventilation around the appliance (at least 10-15 cm clearance from walls or other objects).
- Do not place the cook-top near water sources or heat-sensitive materials.
Maitinimo jungtis:
- Prijunkite maitinimo laidą į standartinį 240 V kintamosios srovės elektros lizdą.
- The cook-top will emit a beep, and the display will briefly light up, indicating it is in standby mode.
5. Naudojimo instrukcijos
Valdymo skydelis:
Image: Close-up of the cook-top's control panel, featuring soft push buttons and a digital display for easy operation.
Pagrindinė operacija:
- Place suitable induction-compatible cookware centrally on the cooking zone.
- Paspauskite Maitinimo įjungimas/išjungimas button to activate the cook-top. The display will show default settings or '---'.
- Select a cooking mode or adjust power/temperature manually.
- Norėdami išjungti, paspauskite Maitinimo įjungimas/išjungimas button again. The fan may continue to run for a short period to cool down the appliance.
Temperature and Power Settings:
- After turning on, use the „+“ ir '-' buttons to adjust the power or temperature level.
- The cook-top offers 7 levels of power/temperature, allowing for precise heat control.
Gaminimo režimai:
The V-Guard VIC01 V2 features 7 versatile cooking modes for different culinary needs. Press the 'Function' or specific mode buttons to select.
Image: Diagram illustrating the 7 versatile cooking modes available on the cook-top, including Deep Fry, Manual Mode, Chapathi/Dosa, Curry, Idli, Boil, and Milk.
- Deep Fry: Optimized for deep frying with stable high temperature.
- Rankinis režimas: Allows full manual control over power/temperature settings.
- Chapathi/Dosa: Ideal for flatbreads requiring consistent heat.
- Karis: Suitable for simmering and cooking curries.
- Idli: Designed for steaming idlis.
- Virti: Quick heating to bring liquids to a boil.
- Pienas: Gentle heating to prevent milk from boiling over.
Laikmačio funkcija:
- Paspauskite 'Timer' button to set a cooking duration.
- Naudokite „+“ ir '-' buttons to adjust the time, up to 4 hours.
- The cook-top will automatically switch off once the set time expires.
Iš anksto nustatyta funkcija:
- The 'Preset' function allows you to schedule cooking to start at a later time, up to 24 hours.
- Set your desired cooking mode and duration, then activate the preset function and set the delay time.
Pan Detection and Auto-Off:
- The cook-top will only operate when suitable induction-compatible cookware is placed on the cooking zone.
- If no pan is detected or an unsuitable pan is used, an error code may appear, and the cook-top will not heat.
- Prietaisas pasižymi Automatinis išjungimas function for safety, switching off after a period of inactivity or if the pan is removed.
6. Priežiūra ir priežiūra
Proper care and maintenance will ensure the longevity and optimal performance of your V-Guard Induction Cook-top.
Valymas:
- Always unplug the cook-top from the power outlet and allow it to cool completely before cleaning.
- Nuvalykite stiklo paviršių minkšta,amp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner specifically designed for glass cook-tops.
- Do not use abrasive pads, harsh chemicals, or scouring agents, as these can damage the surface.
- Valdymo skydelį valykite minkšta, damp audiniu. Įsitikinkite, kad į valdymo skydelio sritį nepatenka skysčio.
- Nuvalykite išorinį korpusą skelbimuamp audinys.
- Ensure all parts are thoroughly dry before plugging the appliance back in.
Saugykla:
- Store the cook-top in a cool, dry place when not in use.
- Avoid placing heavy objects on the cook-top surface during storage.
Image: Demonstrating effortless maintenance with the easy-to-clean glass top and stable anti-skid feet for secure placement.
Paveikslėlis: Apatinė pusė view of the cook-top, illustrating the Aerodynamic Cooling System designed for fast cooling and extended product life.
7. Problemų sprendimas
If you encounter any issues with your V-Guard Induction Cook-top, please refer to the following table before contacting customer service.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Cook-top does not turn on. | No power supply; Power cord not plugged in; Main switch off. | Check power outlet; Ensure cord is securely plugged in; Turn on main switch. |
| Cook-top turns on but does not heat. | Unsuitable cookware; No cookware on the cooking zone; Pan not centered. | Use induction-compatible cookware; Place cookware on the cooking zone; Center the pan properly. |
| Ekrane rodomas klaidos kodas. | Various issues (e.g., overheating, voltage fluctuation, sensor error). | Refer to the specific error code in the full manual (if available) or unplug and plug back in after a few minutes. Ensure proper ventilation. |
| Maistas iškeptų netolygiai. | Cookware base is uneven; Incorrect power/temperature setting. | Use cookware with a flat, thick base; Adjust power/temperature as needed. |
| Didelis ventiliatoriaus triukšmas. | Normal operation of cooling fan. | This is normal during and after cooking to cool internal components. |
8. Techninės specifikacijos
| Specifikacija | Detalė |
|---|---|
| Modelio numeris | VIC01 V2 |
| Vattage | 1200 vatų valandos |
| ttage | 240 voltų |
| Šildymo elementai | 1 |
| Valdymo tipas | Push Button, Soft Switch |
| Ypatinga funkcija | Digital Display, Hi-Low Voltage Cut-Off, 3 KV Surge Protection |
| Medžiaga | Akrilnitrilo butadieno stirenas (ABS) |
| Gaminio matmenys | 12 gylio x 5 pločio x 12 aukščio centimetrų |
| Prekės svoris | 500 gramų |
| Rekomenduojami naudojimo būdai | Cooking Small Meals & Fast Recipes |
| Įtraukti komponentai | Vartotojo vadovas |
| Sertifikatai | BIS Certified Product |
9. Garantija ir palaikymas
Informacija apie garantiją:
- 1 Year Product Warranty: The V-Guard VIC01 V2 Induction Cook-top comes with a 1-year warranty covering manufacturing defects from the date of purchase.
- 3 Year Warranty for Induction Coil: The induction coil specifically is covered by a 3-year warranty.
- Prašome išsaugoti pirkimo kvitą kaip pirkimo įrodymą garantiniams reikalavimams.
- The warranty does not cover damage caused by misuse, accident, unauthorized repairs, or normal wear and tear.
Klientų aptarnavimas:
For any queries, service requests, or warranty claims, please contact V-Guard customer support. Refer to the contact information provided in your warranty card or visit the official V-Guard websvetainę.
