HP EliteDesk 800 G9 Mini Desktop User Manual

1. Įvadas

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your HP EliteDesk 800 G9 Mini Desktop. Please read these instructions carefully before using your device to ensure optimal performance and longevity.

Figure 1: HP EliteDesk 800 G9 Mini Desktop

The HP EliteDesk 800 G9 Mini Desktop is a compact and powerful computing solution designed for efficiency. It features an Intel 12th Generation Core i5-12500T (6-Core) processor, 16GB of RAM, and a 256GB PCIe SSD, running on Windows 11 Pro. Integrated Intel WiFi 6 AX211 and Bluetooth provide robust wireless connectivity.

2. Kas yra dėžutėje

Upon unboxing your HP EliteDesk 800 G9 Mini Desktop, verify that all the following components are included:

• HP EliteDesk 800 G9 Mini Desktop PC
• HP OEM 90W Power Adapter
• Laidinė klaviatūra
• Laidinė pelė
• Dokumentacija (greito paleidimo vadovas, saugos informacija)

3. Produktas baigtasview

3.1 Priekinis skydelis

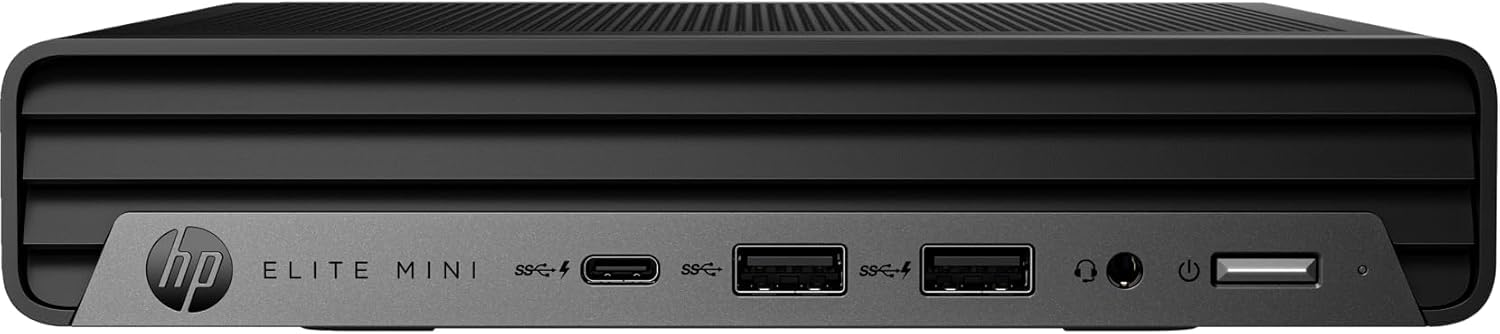

Figure 2: Front Panel Ports and Features

• 1 Laisvų rankų įrangos jungtis
• 1 SuperSpeed ​​USB Type-A 10Gbps signalo perdavimo sparta
• 1 SuperSpeed ​​USB Type-A 10Gbps signalo perdavimo sparta (įkraunama)
• 1 SuperSpeed USB Type-C 20Gbps signaling rate

3.2 Galinis skydelis

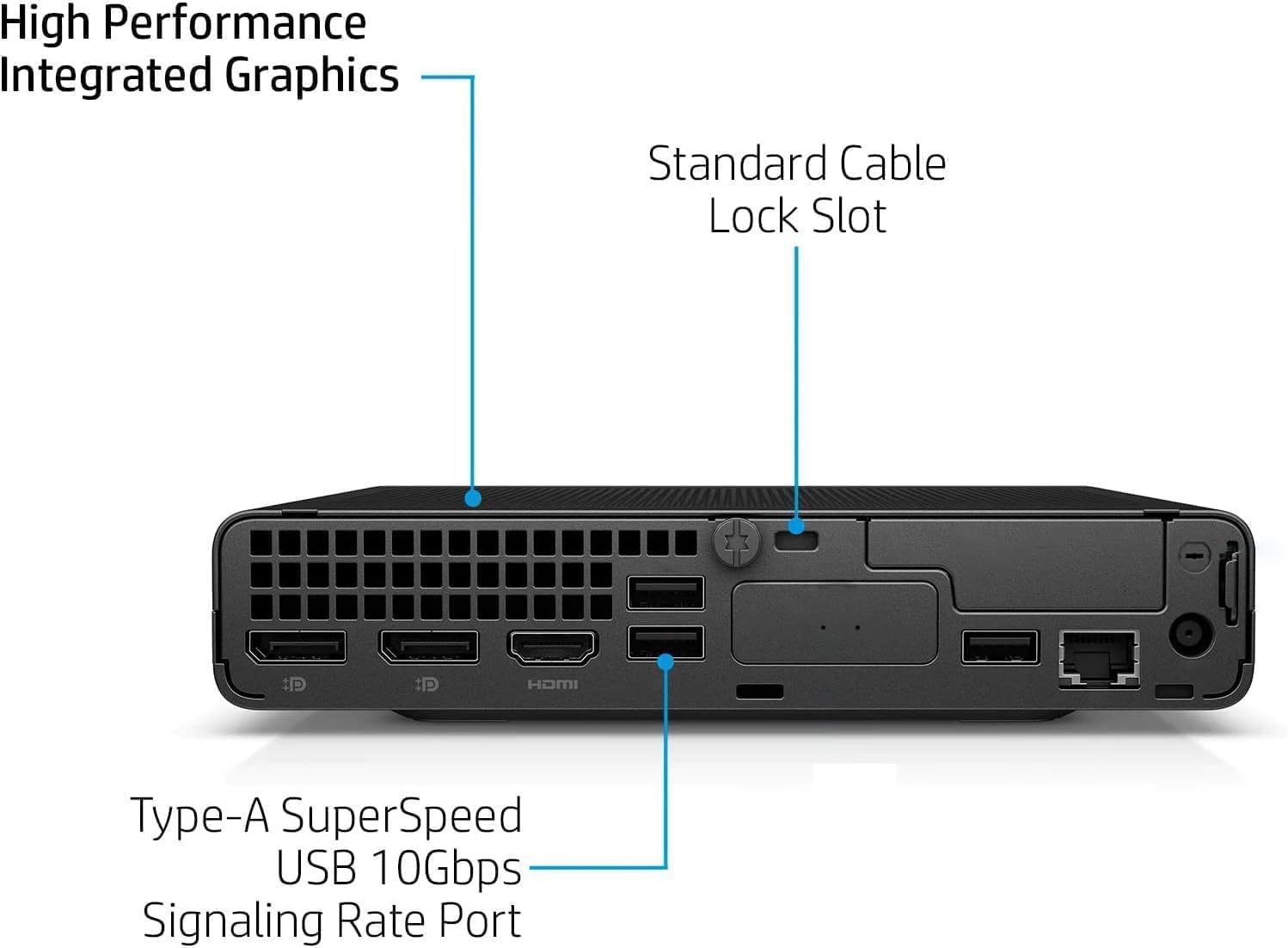

Figure 3: Rear Panel Ports and Features

• 1 External antenna connector
• 1 maitinimo jungtis
• 1 RJ-45 (Ethernet)
• 3 SuperSpeed ​​USB Type-A 10Gbps signalo perdavimo sparta
• 2 DisplayPort 1.4
• 1HDMI 2.1

4. Sąrankos instrukcijos

Follow these steps to set up your HP EliteDesk 800 G9 Mini Desktop:

1. Prijunkite išorinius įrenginius: Connect your monitor(s) to the DisplayPort 1.4 or HDMI 2.1 ports. Connect the wired keyboard and mouse to the available USB Type-A ports.
2. Maitinimo jungtis: Connect the HP OEM 90W Power Adapter to the power connector on the rear panel, then plug the power adapter into a wall outlet.
3. Tinklo ryšys (neprivaloma): For a wired internet connection, connect an Ethernet cable to the RJ-45 port. For wireless, ensure the external antenna is connected (if applicable) and configure Wi-Fi during the initial Windows setup.
4. Maitinimas: Press the power button on the front panel to turn on the Mini Desktop.
5. Pradinė „Windows“ sąranka: Follow the on-screen instructions to complete the Windows 11 Pro setup, including language, region, network, and user account creation.

5. Operacinė sistema

Your HP EliteDesk 800 G9 Mini Desktop comes pre-installed with Windows 11 Pro. This operating system offers a modern interface, enhanced security features, and improved productivity tools. For detailed information on Windows 11 Pro features and usage, refer to the official Microsoft documentation or support websvetainę.

6. Specifikacijos

Below are the key technical specifications for your HP EliteDesk 800 G9 Mini Desktop:

7. Priežiūra

To ensure the longevity and optimal performance of your HP EliteDesk 800 G9 Mini Desktop, regular maintenance is recommended:

• Laikykite švarų: Regularly clean the exterior of the device with a soft, dry cloth. Ensure ventilation openings are free from dust and debris to prevent overheating.
• Programinės įrangos atnaujinimai: Keep your Windows 11 Pro operating system and drivers updated to the latest versions. This ensures security patches and performance improvements.
• Duomenų atsarginė kopija: Reguliariai kurkite svarbių duomenų atsargines kopijas išoriniame diske arba debesies saugykloje, kad išvengtumėte duomenų praradimo.
• Venkite ekstremalių sąlygų: Nelaikykite prietaiso nuo ekstremalių temperatūrų, drėgmės ar tiesioginių saulės spindulių.

8. Problemų sprendimas

If you encounter issues with your Mini Desktop, try the following basic troubleshooting steps:

• Nėra galios: Įsitikinkite, kad maitinimo adapteris yra tvirtai prijungtas tiek prie įrenginio, tiek prie veikiančio maitinimo lizdo. Patikrinkite, ar maitinimo lizdas veikia.
• Nėra ekrano: Verify that your monitor is properly connected to the Mini Desktop and powered on. Try connecting to a different video port or monitor if available.
• Periferinės problemos: If the keyboard or mouse is not responding, ensure they are correctly plugged into the USB ports. Try different USB ports or restart the system.
• Lėtas našumas: Close unnecessary applications, check for malware, and ensure your system has sufficient free storage space. Consider running a disk cleanup.
• Tinklo ryšys: For Wi-Fi issues, restart your router and the Mini Desktop. For wired connections, check the Ethernet cable and router status.

For more advanced troubleshooting or persistent issues, refer to the HP support websvetainėje arba susisiekite su klientų aptarnavimo tarnyba.

9. Garantija ir palaikymas

This HP EliteDesk 800 G9 Mini Desktop is an Amazon Renewed - Certified Refurbished product. It is backed by the Amazon Renewed Guarantee, which provides a replacement or refund within 90 days of receipt if the product does not work as expected. For specific warranty details and support, please refer to the Amazon Renewed program terms and conditions or contact Amazon customer service.

10. Susiję vaizdo įrašai

For additional information regarding Intel processors, you may find the following video helpful:
