Amazon Basics Clamber-Foldable 3-Step Ladder User Manual

Svarbi saugos informacija

Read and understand all instructions before using this ladder. Failure to follow these instructions may result in serious injury or death.

• Didžiausia apkrova: Neviršykite maksimalios leistinos apkrovos 120 kg (264 svaro). This includes the user and any tools or materials.
• Prieš naudodami patikrinkite: Always inspect the ladder for damage, loose fasteners, or missing parts before each use. Do not use a damaged ladder.
• Stabilus paviršius: Ensure the ladder is placed on a firm, level, and non-slippery surface. Do not use on uneven ground or soft surfaces.
• Tinkamas nustatymas: Fully open the ladder and ensure the safety-clutch lock is engaged before climbing.
• Palaikykite tris sąlyčio taškus: Always maintain three points of contact (two hands and one foot, or two feet and one hand) when climbing or descending.
• Veidas į kopėčias: Lipdami aukštyn arba žemyn visada atsigręžkite į kopėčias.
• Nepersistenkite: Laikykite kūną centre tarp šoninių turėklų. Nesilenkite per daug, nes kopėčios gali apvirsti.
• Venkite elektros pavojų: Do not use the ladder near live electrical wires or equipment. Metal ladders conduct electricity.
• Tik vienas asmuo: Šios kopėčios skirtos naudoti vienam asmeniui vienu metu.
• Vaikai ir augintiniai: Keep children and pets away from the ladder during use and storage.

Produktas baigtasview

The Amazon Basics Clamber-Foldable 3-Step Ladder is designed for household tasks, offering stability and ease of use. Constructed from industrial-grade steel, it features ribbed steps for grip, a knee guard for support, and non-marring PVC shoes to protect floors.

Pagrindinės funkcijos:

• Sulankstomas dizainas: Lengva laikyti ir transportuoti.
• Safety-Clutch Lock: Prevents accidental folding and wobbling.
• Ribbed Steps: Provides a secure footing.
• Knee Guard: Offers additional support and safety.
• Non-Marring PVC Shoes: Protects floor surfaces from scratches.
• Patvari konstrukcija: Made from ultra-sturdy, industrial-grade steel.

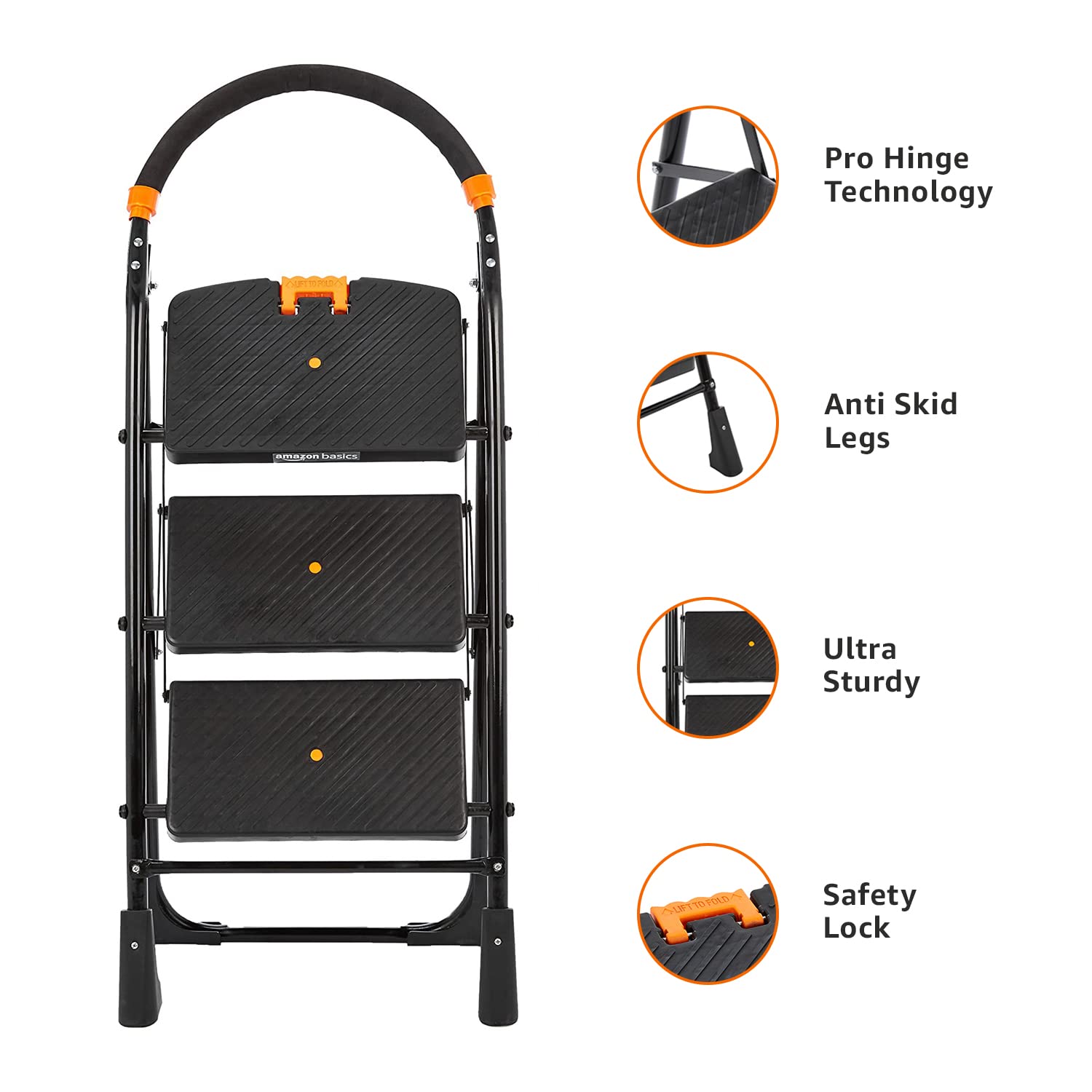

Image: Key features of the Clamber 3-Step Ladder, including Pro Hinge Technology, Anti-Skid Legs, Ultra Sturdy frame, and Safety Lock.

Image: Additional features such as lightweight and foldable design, wobble-free climbing, and dual protection against jiggling.

Sąranka ir išskleidimas

1. Padėkite sulankstytas kopėčias ant lygaus, stabilaus paviršiaus.
2. Grasp the top handle and the top step.
3. Gently pull the front and rear sections of the ladder apart until they are fully extended.
4. Ensure the safety-clutch lock mechanism (located near the top step) is fully engaged and secured. You should hear a click or feel it lock into place.
5. Verify that all four non-marring PVC shoes are firmly on the ground and the ladder is stable before use.

Image: The Amazon Basics Clamber 3-Step Ladder in its fully unfolded position, ready for operation.

Naudojimo instrukcijos

Follow these guidelines for safe and effective use of your step ladder:

• Laipiojimas: Always climb facing the ladder. Use the knee guard for added support.
• Pėdų padėtis: Place your feet firmly on the center of the ribbed steps. The ribbed surface is designed for enhanced grip.
• Apsauginis užraktas: The unique safety-clutch lock prevents the ladder from jiggling or folding while in use. Ensure it is engaged before climbing.
• Darbinis aukštis: Do not stand on the topmost step unless it is specifically designed as a platform. For this 3-step ladder, the top step is the highest safe standing level.
• Pasiekimas: Avoid leaning too far to the sides. If you cannot reach an item comfortably, descend the ladder and reposition it closer to your work area.

Image: Detail of the top step, illustrating the "LIFT TO FOLD" mechanism and the textured, ribbed surface for secure footing.

Vaizdas: Stambus planas view of the precisely ribbed steps, designed to provide a firm, anti-skid grip for user safety.

Sulankstymas ir saugojimas

1. Ensure no one is on the ladder and all tools are removed.
2. Locate the "LIFT TO FOLD" mechanism on the top step.
3. Lift the mechanism to disengage the safety-clutch lock.
4. Gently push the front and rear sections of the ladder together until it is fully folded.
5. Store the folded ladder in a dry, secure location, away from children and pets. Its compact design allows for storage in narrow spaces.

Priežiūra

• Valymas: Wipe the ladder clean with a damp cloth and mild detergent. Avoid abrasive cleaners or solvents that could damage the finish or PVC parts.
• Patikra: Regularly check all rivets, bolts, and hinges for tightness. Ensure the non-marring PVC shoes are intact and not worn. Inspect steps for cracks or damage.
• Tepimas: Periodically apply a small amount of lubricant to the hinge points to ensure smooth folding and unfolding.
• Saugykla: Store the ladder in a dry place to prevent rust, especially since it is made of steel.

Trikčių šalinimas

Kopėčios nestabilios:

Ensure the ladder is fully unfolded and the safety-clutch lock is engaged. Check that all four feet are on a firm, level surface. Inspect for any loose fasteners or damaged components.

Sulankstymo / išskleidimo sunkumai:

Ensure the "LIFT TO FOLD" mechanism is fully actuated. Check for any obstructions in the hinge areas. Apply a small amount of lubricant to the hinges if movement is stiff.

PVC shoes are slipping:

Ensure the floor surface is clean and dry. The non-marring PVC shoes are designed for grip, but extreme conditions or worn shoes can reduce effectiveness. Replace worn shoes if necessary.

Specifikacijos

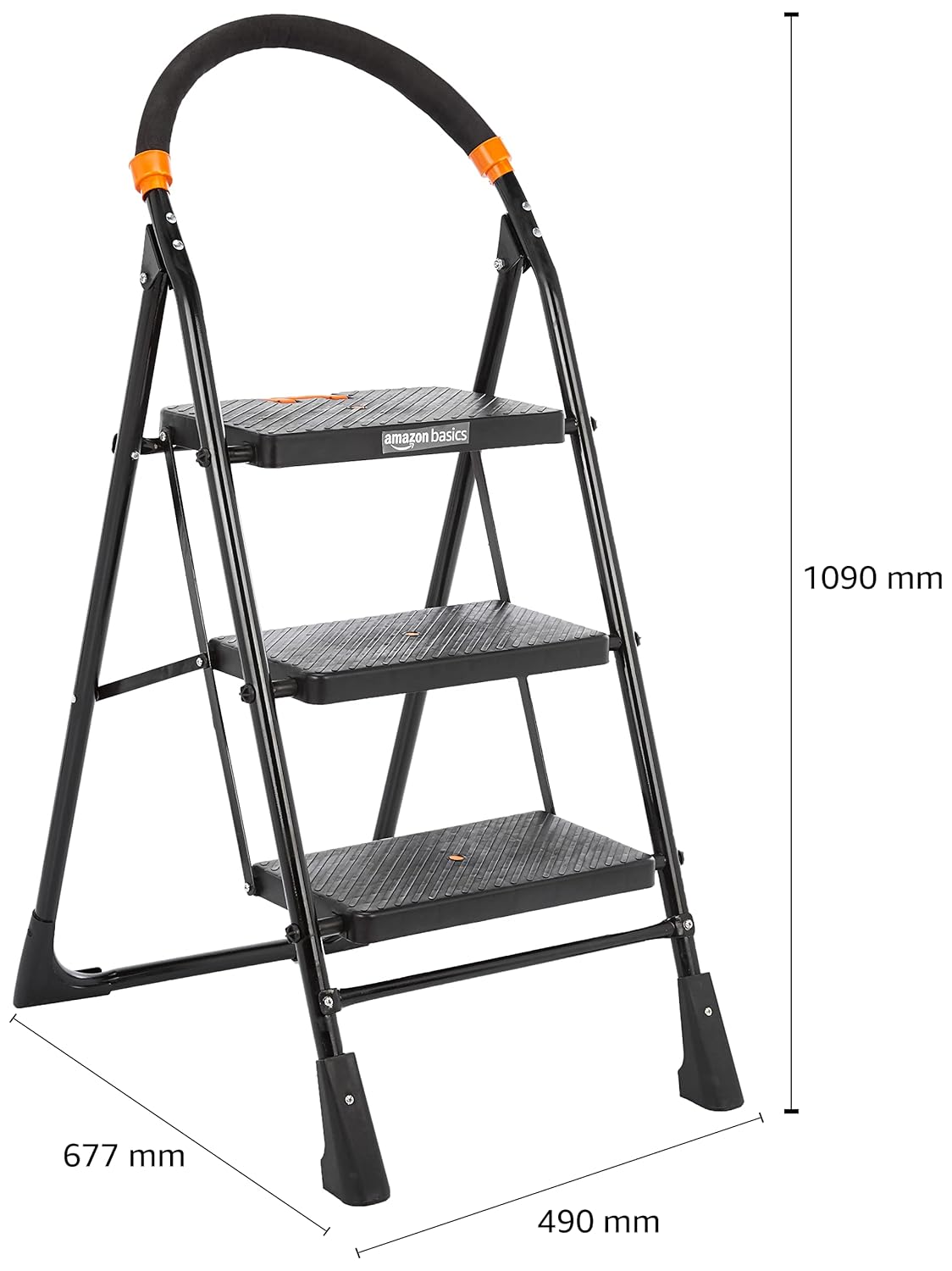

Vaizdas: matmenų perview of the ladder, indicating its width, depth, and overall height when unfolded.

Garantija ir palaikymas

This Amazon Basics product is backed by a limited warranty. For specific warranty details, terms, and conditions, please refer to the documentation included with your purchase or visit the official Amazon Basics support page.

For customer support, technical assistance, or to report any issues, please contact Amazon Basics customer service through your Amazon account or the contact information provided on the Amazon websvetainė jūsų regionui.

Gamintojo kontaktai: Paffy Industries Pvt Ltd, IMT Manesar, Gurgaon, Haryana, 122052, Tel: 1800-123-500-001
