Įvadas
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Amana 12,000 BTU PTAC Heat Pump Air Conditioner. Please read all instructions carefully before use.
Svarbi saugos informacija
Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury. Keep this manual for future reference.
- Įsitikinkite, kad įrenginys tinkamai įžemintas.
- Nenaudokite su pažeistu maitinimo laidu ar kištuku.
- Neužblokuokite oro įleidimo ar išleidimo angų.
- Prieš atlikdami techninę priežiūrą ar valydami, atjunkite maitinimą.
- Refer to qualified personnel for installation and repairs.
Sąranka ir diegimas
The Amana PTAC unit is designed for easy installation and fits a standard 42-inch PTAC sleeve. The sleeve and rear grille are sold separately. The front panel secures with a concealed screw to prevent tamperingas.
Maitinimo prijungimas
This unit includes a 20-amp LCDI power cord for direct connection. Ensure the electrical supply matches the unit's requirements (208-230V).

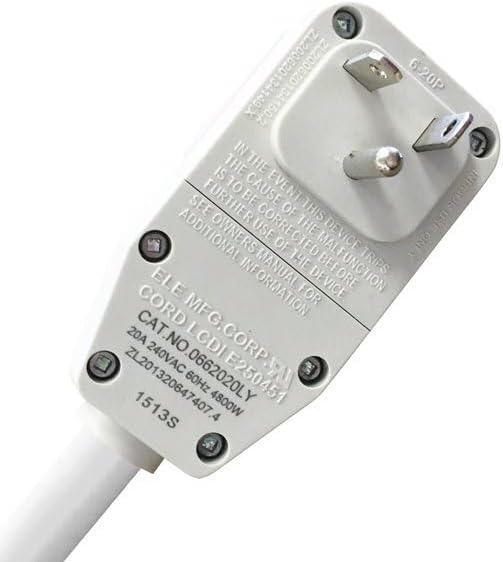

Figure 1: The 20-amp LCDI power cord ensures safe and easy electrical connection.
Sleeve and Grille Assembly
For detailed instructions on assembling the PTAC sleeve and grille, refer to the video below. Proper assembly is crucial for optimal performance and secure installation.
Video 1: Step-by-step guide on how to assemble the PTAC sleeve and grille. This video demonstrates the process for a similar unit, providing general guidance for installation.
Naudojimo instrukcijos
Your Amana PTAC unit offers user-friendly controls for heating, cooling, and fan-only operation. It features a digital display for temperature and various fan speed settings.
Valdymo skydas baigtasview
Figure 2: The control panel is located on the right side of the unit, providing access to all functions.
Režimai ir nustatymai
- Šildymo režimas: Provides 10,500/10,800 BTU heat pump capacity, with a 3.5 kW electric heater (8,900/10,900 BTU backup heat) for colder conditions.
- Vėsus režimas: Delivers 11,800/12,000 BTU cooling capacity.
- Tik ventiliatoriaus režimas: Cirkuliuoja orą be šildymo ar aušinimo.
- Ventiliatoriaus greičiai: Select from 3 fan speeds (Low, Medium, High) or Auto mode for optimized airflow.
- Temperatūros rodymas: Switch between °F and °C.
- Automatic Emergency Heat: Ensures reliable backup heating when needed.
- Wired Thermostat Compatibility: The unit can be integrated with a wired thermostat for external control.
The following videos demonstrate the operation of the Amana PTAC unit's control panel and general usage.
2 vaizdo įrašas: šiame vaizdo įraše pateikiamas bendrasview of the Amana heater and air conditioner, demonstrating its basic functions and control panel. It highlights the ease of use for temperature and mode selection.
Video 3: A demonstration of the Amana PTAC unit's quiet operation and effective cooling/heating capabilities, emphasizing its user-friendly controls.
Priežiūra
Regular maintenance ensures the longevity and efficient operation of your Amana PTAC unit. The unit is designed for low maintenance with easy-to-access components.
Filtrų valymas
The unit features washable front-access filters. Regularly clean these filters to maintain optimal airflow and air quality. Simply pull out the filters, wash them with mild soap and water, and ensure they are completely dry before reinserting.

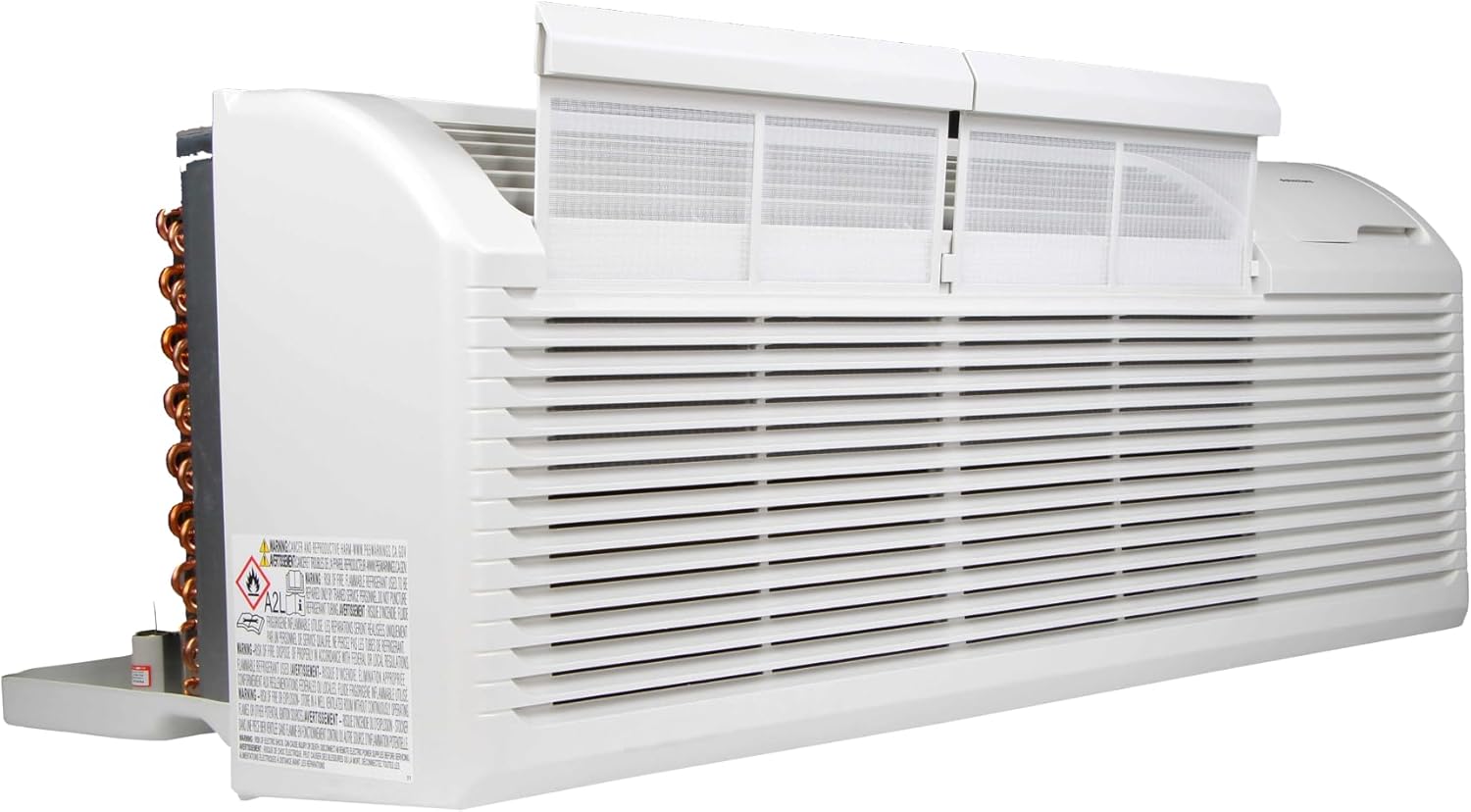

Figure 3: Accessing the washable front filters for routine cleaning.
Condensate Dispersion System
The smart condensate dispersion system evaporates excess moisture directly onto the outdoor coil, boosting cooling efficiency. Ensure the system is free from obstructions.

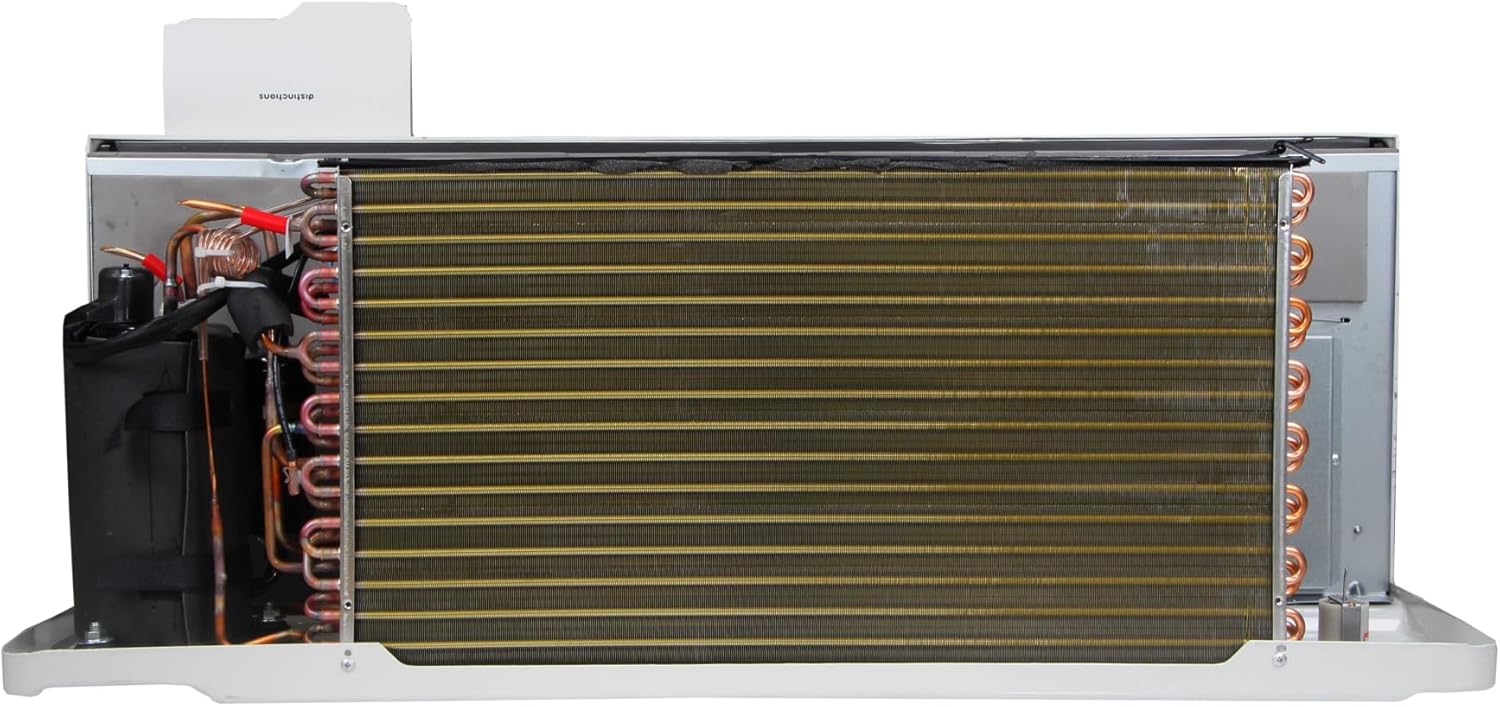

Figure 4: Internal components, including the coils and condensate system, designed for efficient operation.
Trikčių šalinimas
If your unit is not operating as expected, please consult the full product manual for a comprehensive troubleshooting guide. Common issues often relate to power supply, clogged filters, or incorrect mode settings.
- Nėra galios: Patikrinkite maitinimo laido jungtį ir grandinės pertraukiklį.
- Nepakankamas aušinimas / šildymas: Ensure filters are clean and air vents are not blocked. Verify correct temperature and mode settings.
- Neįprastas triukšmas: Inspect for any loose parts or obstructions in the fan area.
Specifikacijos
| Prekinis ženklas: | AMANA |
| Modelio numeris: | DHP123J35BA |
| Aušinimo talpa: | 12,000 XNUMX BTU |
| Heat Pump Capacity: | 10,500 10,800/XNUMX XNUMX BTU |
| Elektrinis šildytuvas: | 3.5 kW (8,900/10,900 BTU backup heat) |
| ttage: | 208-230 voltų |
| Efficiency (EER): | 10.5 |
| Šaltnešis: | R-32 |
| Gaminio matmenys: | 42 x 21 x 16 colio |
| Prekės svoris: | 119 svaro |
| Spalva: | Baltas |
| Medžiagos tipas: | Varis, Plastikas |
| Įtraukti komponentai: | 12,000 BTU Heat Pump PTAC |
| Ypatingos savybės: | Automatic Emergency Heat, Condensate Dispersion System, Easy-Pull Out Filters, Wired Thermostat Compatible |
Informacija apie garantiją
For specific warranty details, please refer to the warranty card included with your product or visit the official Amana websvetainėje. Išsaugokite pirkimo įrodymą garantiniams reikalavimams.
Pagalba klientams
If you require further assistance or have questions not covered in this manual, please contact Amana customer support. Contact information can typically be found on the product packaging or the official brand websvetainę.
