Bewinner 4G Cat 9 LTE Wireless WAN Card (Model L850-GL) Instruction Manual

1. Įvadas

This instruction manual provides essential information for the proper installation, operation, and maintenance of your Bewinner 4G Cat 9 LTE Wireless WAN Card, Model L850-GL. This module is designed to provide high-speed 4G LTE mobile network connectivity for compatible laptops, enhancing your device's internet capabilities. Please read this manual thoroughly before installation and use.

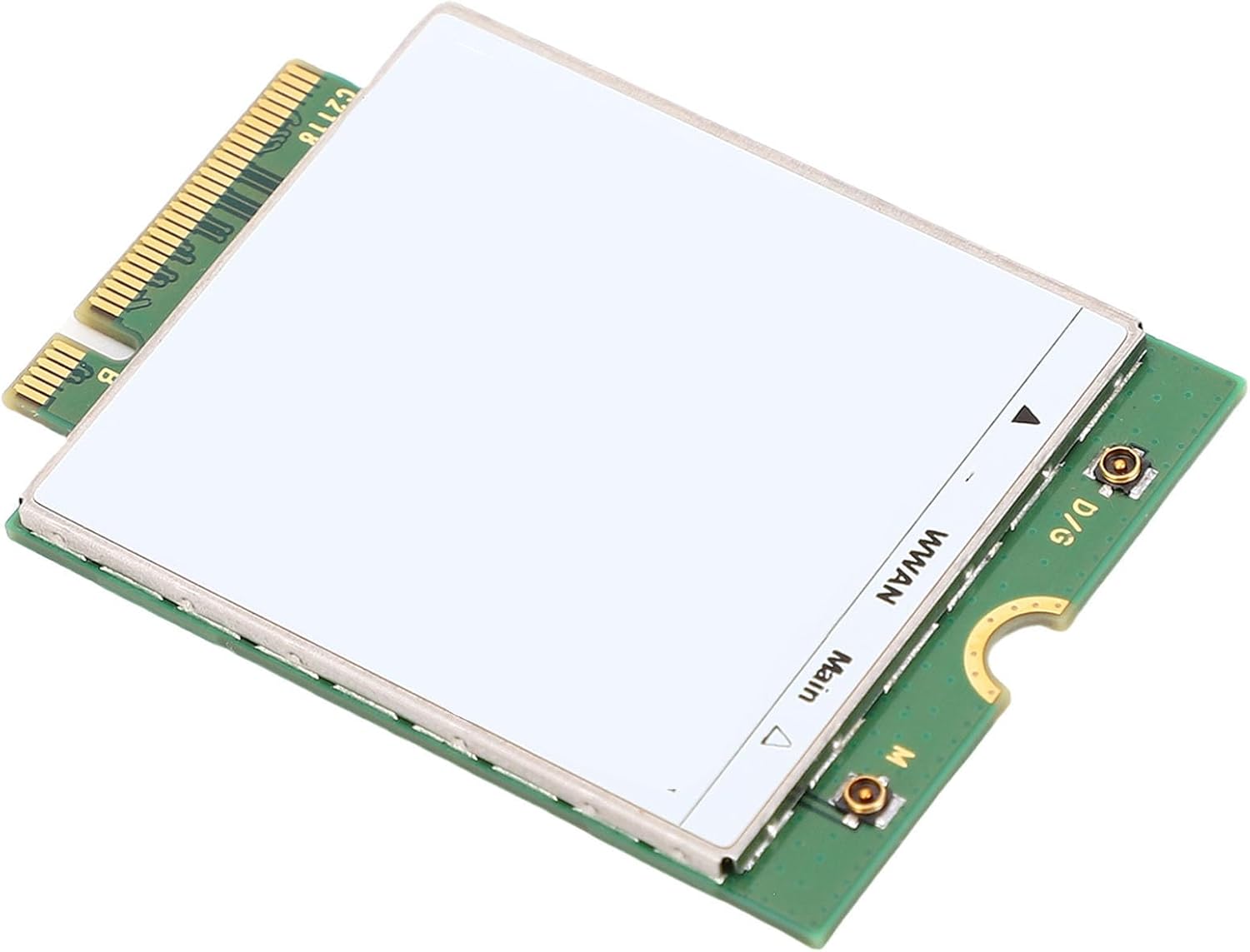

1.1 pav.: Viršus view of the Bewinner 4G Cat 9 LTE Wireless WAN Card. This image shows the M.2 interface card with a white label covering the main components, and two antenna connectors labeled 'WWAN Main' and 'D/G'.

2. Sąranka ir diegimas

The Bewinner 4G Cat 9 LTE Wireless WAN Card is designed for easy installation into compatible laptops. It utilizes an M.2 interface.

2.1 Suderinamumas

This module is compatible with various laptop models, including but not limited to:

• 3540, 3541, 3500
• 5300, 5400, 5401, 5480, 5490, 5500, 5501, 5580, 5590
• 7300, 7390, 7400, 7480

Please verify your laptop's compatibility and ensure it has an available M.2 slot for a WWAN module before proceeding with installation.

2.2 diegimo žingsniai

1. Išjungti: Completely shut down your laptop and disconnect it from all power sources.
2. Prieigos skydelis: Carefully open the laptop's bottom access panel to expose the internal components. Refer to your laptop's specific service manual for instructions on how to do this.
3. Raskite M.2 lizdą: Identify the available M.2 slot designated for WWAN modules.
4. Įterpti modulį: Gently insert the Bewinner 4G Cat 9 LTE Wireless WAN Card into the M.2 slot at an angle.
5. Saugus modulis: Press the module down and secure it with the provided screw (if applicable) or the laptop's existing retention mechanism.
6. Prijunkite antenas: Carefully connect the laptop's internal WWAN antenna cables to the corresponding connectors on the module (Main and D/G). Ensure a secure connection.
7. Uždaryti skydelį: Reattach the laptop's access panel and secure it.
8. Maitinimas: Reconnect power and turn on your laptop.

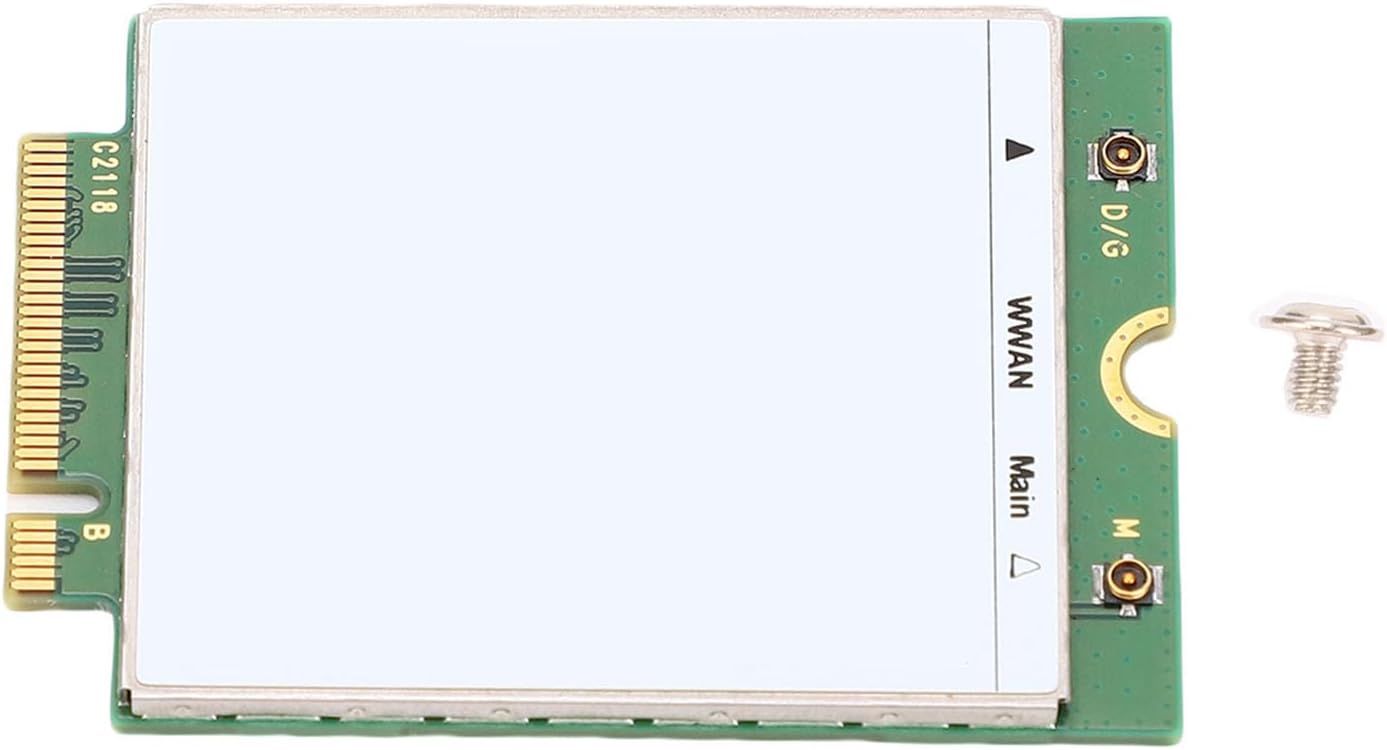

Image 2.1: The Bewinner 4G Cat 9 LTE Wireless WAN Card shown alongside a small screw, typically used for securing the module in an M.2 slot.

After installation, your operating system should detect the new hardware. You may need to install specific drivers provided by your laptop manufacturer or the module manufacturer for full functionality.

3. Naudojimo instrukcijos

Once the Bewinner 4G Cat 9 LTE Wireless WAN Card is successfully installed and recognized by your system, it will enable mobile broadband connectivity.

3.1 SIM Card Insertion (if applicable)

This module requires a compatible SIM card from a mobile network operator to establish a cellular connection. Most laptops with WWAN support have a dedicated SIM card slot.

1. Ensure your laptop is powered off.
2. Locate the SIM card slot on your laptop (often on the side, under the battery, or near the WWAN module).
3. Insert your activated SIM card into the slot according to the orientation indicated.
4. Įjunkite nešiojamąjį kompiuterį.

3.2 Connecting to a Mobile Network

After the SIM card is inserted and the system boots, the WWAN module should be detected.

• „Windows“: Navigate to Network & Internet settings, then "Cellular" or "Mobile Hotspot". You should see options to connect to your mobile network.
• Kitos OS: Consult your operating system's documentation for connecting to mobile broadband networks.

The module supports high-speed data transfer with download rates up to 450 Mbps (LTE FDD) and upload rates up to 50 Mbps (LTE FDD), depending on network conditions and operator services. It supports various network standards including LTE-TDD, LTE-FDD, and WCDMA across multiple frequency bands.

4. Priežiūra

The Bewinner 4G Cat 9 LTE Wireless WAN Card is a robust electronic component designed for long-term use. Minimal maintenance is required.

• Laikyti sausai: Avoid exposing the module to moisture or extreme humidity.
• Švara: Ensure the laptop's internal environment, where the module is installed, remains free from dust and debris.
• Firmware/Drivers: Periodically check for updated drivers or firmware from your laptop manufacturer or Bewinner to ensure optimal performance and compatibility.
• Fizinis valdymas: When handling the module, avoid touching the gold contacts directly. Use anti-static precautions.

5. Problemų sprendimas

If you encounter issues with your Bewinner 4G Cat 9 LTE Wireless WAN Card, consider the following troubleshooting steps:

• Modulis neaptiktas:
  • Įsitikinkite, kad modulis tinkamai įdėtas į M.2 lizdą.
  • Verify that the securing screw is tightened.
  • Check your laptop's BIOS/UEFI settings to ensure the WWAN slot is enabled.
• Nėra tinklo ryšio:
  • Confirm that a valid and activated SIM card is inserted correctly.
  • Check if the antenna cables are securely connected to the module.
  • Ensure you have installed the correct drivers for the WWAN module.
  • Verify that your mobile network operator's service is active in your area.
  • Iš naujo paleiskite nešiojamąjį kompiuterį.
• Lėti greičiai:
  • Network performance can vary based on location, signal strength, and network congestion.
  • Ensure your mobile data plan supports the desired speeds.
  • Patikrinkite, ar yra tvarkyklių atnaujinimų.
• Vairuotojo problemos:
  • Reinstall the drivers for the WWAN module.
  • Check the Device Manager (Windows) for any error indicators related to the module.

If problems persist, contact Bewinner customer support or your laptop manufacturer for further assistance.

6. Specifikacijos

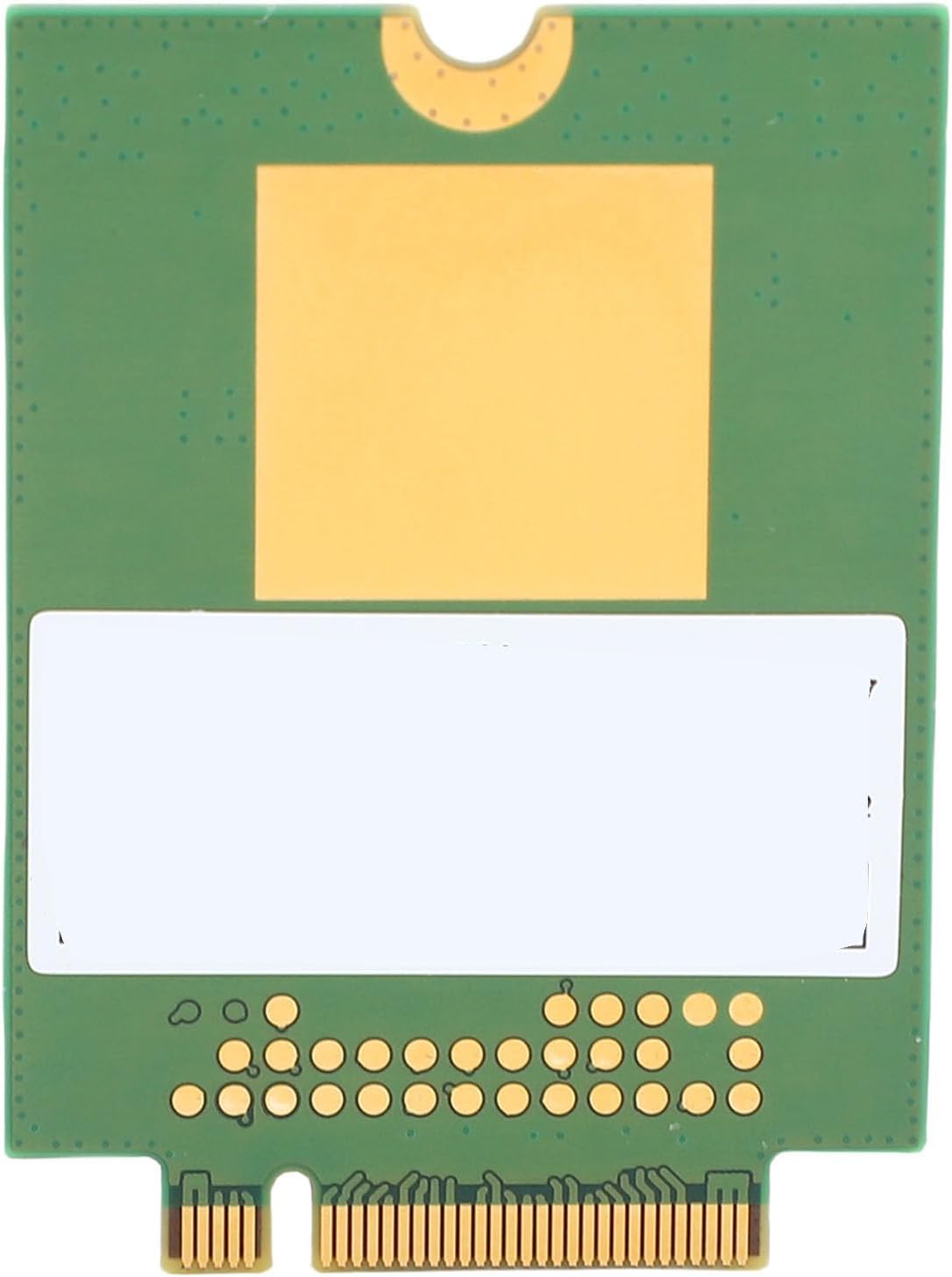

6.1 paveikslas: Nugara view of the Bewinner 4G Cat 9 LTE Wireless WAN Card, showing the PCB and M.2 connector pins.

7. Palaikymas ir garantija

For technical support, warranty information, or further inquiries regarding your Bewinner 4G Cat 9 LTE Wireless WAN Card, please refer to the official Bewinner websvetainėje arba susisiekite tiesiogiai su jų klientų aptarnavimo tarnyba. Išsaugokite pirkimo kvitą garantiniams reikalavimams.

Gamintojas: Bewinner
Prekės modelio numeris: Bewinner651scqued3
ASIN: B0FSYW4686
