Galvanox Magnetic Wireless Charger for Samsung with PPS Adapter (10FT)

Įvadas

This instruction manual provides detailed guidance for the safe and efficient use of your Galvanox Magnetic Wireless Charger. This product is designed to provide fast and reliable wireless charging for compatible Samsung Galaxy devices, featuring a magnetic connection, a 10-foot braided cable, and a 25W PPS power adapter for optimized performance.

Saugos informacija

Prieš naudodami šį gaminį, perskaitykite ir supraskite visas saugos instrukcijas. Nesilaikant šių instrukcijų, gali kilti elektros smūgis, gaisras arba sunkūs sužalojimai.

Saugokite įkroviklį nuo vandens ar per didelės drėgmės.
Neardykite, nemodifikuokite ir nebandykite taisyti įkroviklio.
Avoid extreme temperatures. Do not use or store in very hot or cold environments.
Laikyti vaikams nepasiekiamoje vietoje.
Ensure the power adapter is fully inserted into a wall outlet.
If the charger or adapter becomes excessively hot during use, disconnect it immediately and contact support.
Use only the provided power adapter and cable with this charger.

Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:

1 x Galvanox Magnetic Wireless Charging Pod with 10FT USB-C Cable
1 x 25W PPS Power Adapter

Galvanox Magnetic Wireless Charger components: a black magnetic charging pad with a long braided cable, and a separate black 25W PPS power adapter.

Image: The Galvanox Magnetic Wireless Charger components, including the charging pad, braided cable, and 25W PPS power adapter.

Sąrankos instrukcijos

Prijunkite maitinimo adapterį: Insert the 25W PPS power adapter into a standard wall outlet.
Prijunkite įkrovimo kabelį: Plug the USB-C connector of the magnetic wireless charging cable into the USB-C port on the 25W PPS power adapter.
Paruoškite savo įrenginį: For optimal magnetic attachment and charging efficiency, ensure your Samsung Galaxy device is equipped with a MagSafe-compatible case.
Padėkite įkroviklį: Place the magnetic charging pod onto the back of your compatible Samsung Galaxy device. The built-in magnets will align the charger automatically for a secure connection.

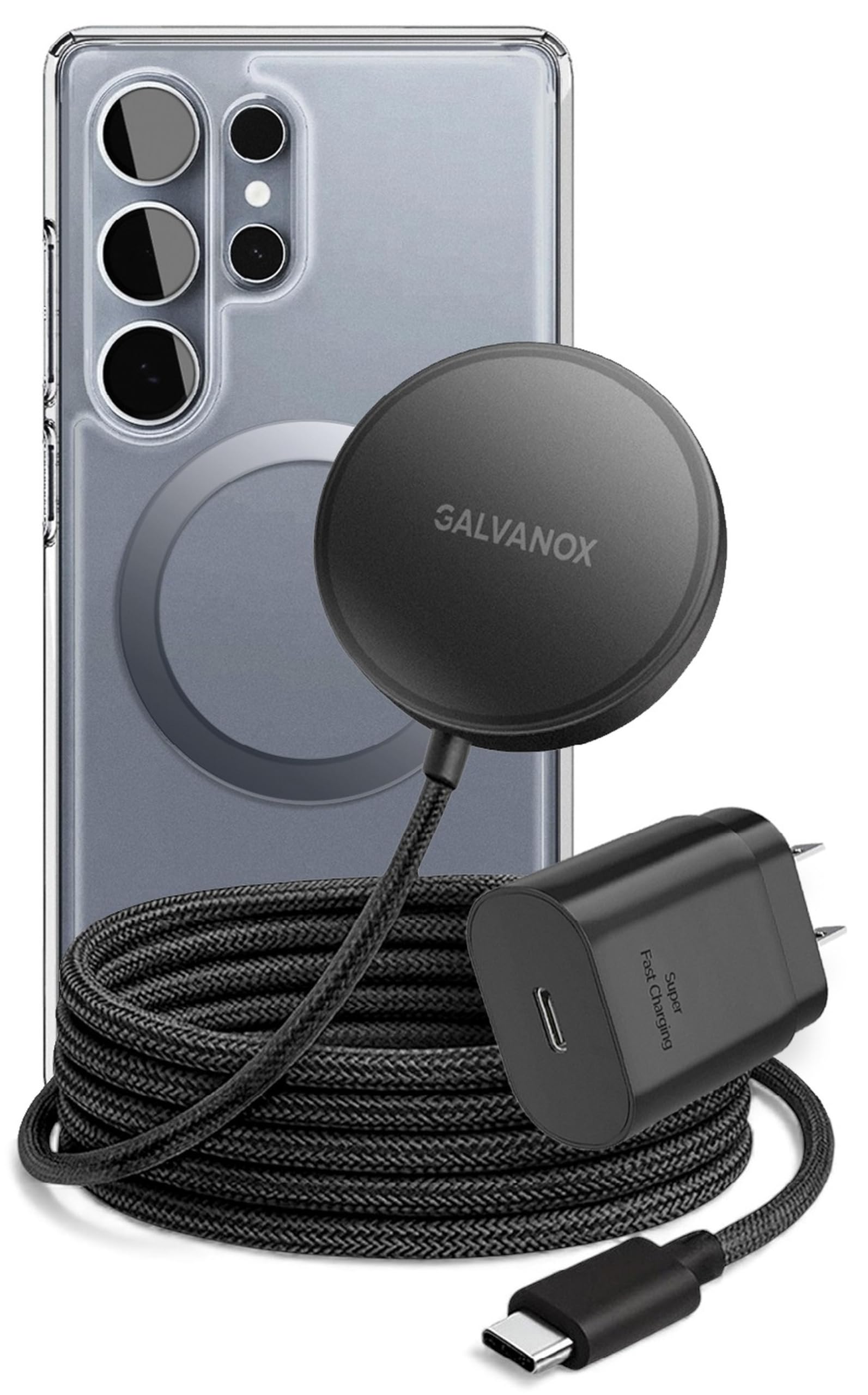

A Samsung Galaxy phone with a clear case, showing the Galvanox magnetic wireless charger attached to its back, demonstrating the magnetic alignment.

Image: A Samsung Galaxy phone with the Galvanox magnetic wireless charger magnetically attached to its back.

Naudojimo instrukcijos

Once set up, using your Galvanox Magnetic Wireless Charger is straightforward:

Magnetinė jungtis: The charger utilizes strong N52 magnets to ensure a precise and secure connection to your Samsung Galaxy device (magnetic case required). This alignment optimizes charging efficiency.
Greitas belaidis įkrovimas: The charger delivers up to 15W of power for fast wireless charging. Your device's screen will indicate that it is charging wirelessly.
PPS Adapter Benefits: The included 25W PPS (Programmable Power Supply) adapter intelligently adjusts voltage and current in real-time, minimizing heat buildup and promoting long-term battery health for your device.
Flexible Reach: The 10-foot braided cable provides ample length, allowing you to comfortably use your device while it charges.

Graphic showing '15W Fast Wireless Charging' with a stylized magnetic charging pad and blue charging animation.

Image: Illustration highlighting 15W fast wireless charging capability.

Close-up of the Galvanox magnetic charging pad showing internal N52 magnets arranged in a circle, with text 'Secure Magnetic Connection'.

Vaizdas: Išsamus view of the magnetic charging pad illustrating the secure magnetic connection with N52 magnets.

A Samsung phone on a desk, connected to the Galvanox charger, displaying 'Fast wireless charging: 75% 22 m until full'.

Image: A Samsung phone screen showing fast wireless charging in progress.

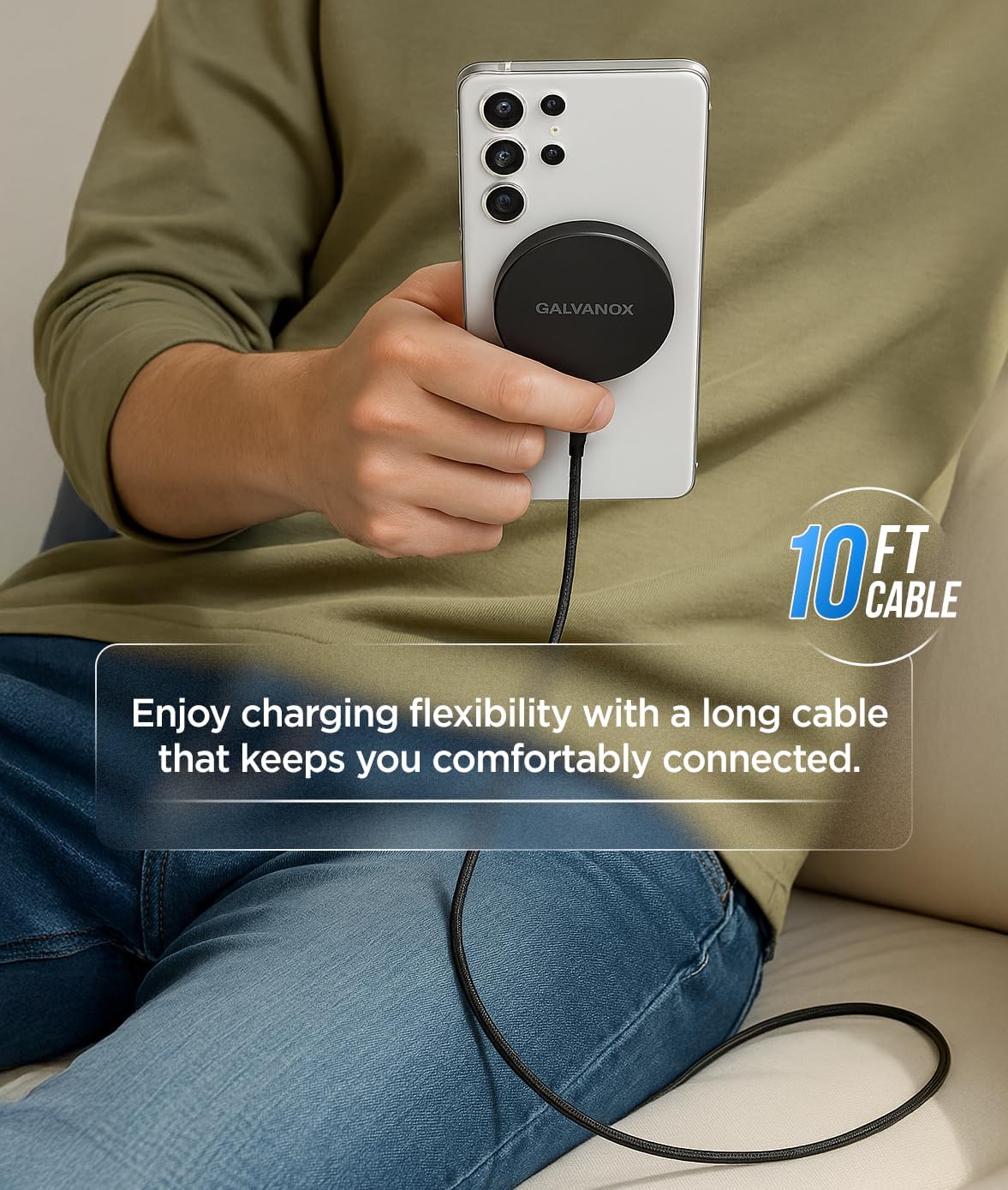

A person holding a white Samsung phone with the Galvanox charger attached, demonstrating the 10-foot cable's length and flexibility.

Image: A user demonstrating the flexibility and reach of the 10-foot charging cable while using their phone.

Priežiūra

Proper care ensures the longevity and optimal performance of your charger:

Valymas: Disconnect the charger from the power source before cleaning. Use a soft, dry, lint-free cloth to wipe the charging pad and cable. Do not use liquid cleaners or aerosols.
Saugykla: Kai nenaudojate, laikykite įkroviklį vėsioje, sausoje vietoje, apsaugotoje nuo tiesioginių saulės spindulių ir ekstremalių temperatūrų.
Kabelio priežiūra: Avoid sharp bends or kinks in the cable. Do not pull the cable forcefully to disconnect it; always grasp the plug.

Trikčių šalinimas

Jei kyla problemų dėl įkroviklio, žr. šias dažniausiai pasitaikančias problemas ir sprendimus:

Problema	Galima priežastis / sprendimas
Įrenginys neįkraunamas	Įsitikinkite, kad maitinimo adapteris yra tvirtai prijungtas prie veikiančio sieninio lizdo. Verify the USB-C cable is firmly connected to both the adapter and the charging pad. Check if your phone case is magnetic-compatible. Thick or non-magnetic cases may interfere. Ensure the charging pad is correctly aligned on the back of your device. Išbandykite kitą sieninį lizdą.
Lėtas įkrovimas	Įsitikinkite, kad jūsų įrenginys palaiko 15 W belaidį įkrovimą. Ensure the charging pad is perfectly aligned with your device's wireless charging coil. Uždarykite nereikalingas fonines programas telefone. Avoid using your phone for intensive tasks while charging.
Charger or phone gets warm	Some warmth during wireless charging is normal. The PPS adapter is designed to manage heat. If the device or charger becomes excessively hot, disconnect it immediately. Įsitikinkite, kad tarp įkroviklio ir telefono nėra jokių pašalinių objektų. Remove your phone case temporarily to see if it improves heat dissipation.
Magnetic connection is weak	Ensure your phone case is specifically designed to be MagSafe-compatible or has integrated magnets. Clean the surfaces of both the charger and your phone/case to remove any debris.

Close-up of the USB-C connector with an internal chip labeled 'SMART PROTECTION', indicating built-in safety features.

Image: The USB-C connector highlighting smart protection features to prevent overcharge and overheating.

Specifikacijos

Funkcija	Detalė
Modelio numeris	MSCP10PPS
Prekės ženklas	GALVANOKSAS
Belaidžio įkrovimo išvestis	Up to 15W (for compatible Samsung Galaxy devices)
Maitinimo adapterio išvestis	25W PPS (Programmable Power Supply)
Kabelio ilgis	10 pėdos (maždaug 3 metrai)
Kabelio tipas	Braided USB-C
Magnetinis suderinamumas	MagSafe-compatible (requires magnetic case for optimal use)
Įtraukti komponentai	1 Magnetic Wireless Charging Pod with USB-C Cable, 1 PPS Power Adapter
Prekės svoris	4.2 uncijos (apie 119 gramų)
Maitinimo kištuko tipas	A tipo – 2 kontaktų (Šiaurės Amerikos)

Garantija ir palaikymas

For warranty information or technical support, please contact GALVANOX directly through their official website or the retailer where the product was purchased. Please have your model number (MSCP10PPS) and proof of purchase available when contacting support.

Pastaba: konkrečios garantijos sąlygos gali skirtis priklausomai nuo regiono ir mažmenininko.

GALVANOX MSCP10PPS
