ESKUTE V100 elektrinio dviračio naudotojo vadovas

1. Įvadas

Thank you for choosing the ESKUTE V100 Electric Bike. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your electric bike. Please read this manual thoroughly before your first ride and retain it for future reference.

Image: The ESKUTE V100 Electric Bike, showcasing its design and all-terrain capabilities. Multiple color options are displayed.

2. Saugos informacija

Jūsų saugumas yra svarbiausias. Važiuodami visada dėvėkite šalmą ir tinkamą apsauginę įrangą. Laikykitės visų vietinių kelių eismo taisyklių ir reglamentų. Reguliarus patikrinimas ir priežiūra yra labai svarbūs saugiam vairavimui.

2.1 Important Safety Tips

• Brake Lever Activation: For your safety, the motor will only engage when you gently squeeze the brake lever once before starting. This safety feature ensures the system is activated correctly and prevents accidental acceleration.
• Patikrinimas prieš važiavimą: Before each ride, inspect tires, brakes, battery level, and ensure all components are securely fastened.
• Oro sąlygos: Exercise caution when riding in wet conditions, snow, or on uneven terrain. The fat tires and dual suspension enhance stability, but vigilance is always required.
• Age and Height: This bike is designed for users with a minimum height of 5.1 feet. Ensure the rider meets the recommended age and height requirements for safe handling.
• Svorio limitas: Neviršykite maksimalios 360 svarų apkrovos.

3. Pakuotės turinys

Upon unpacking your ESKUTE V100 Electric Bike, please verify that all the following components are included:

• ESKUTE V100 Electric Bike (main unit)
• Įkroviklis
• Mudguard (Fenders)
• Reflektoriai
• Įrankių rinkinys
• Vartotojo vadovas (šis dokumentas)

If any items are missing or damaged, please contact ESKUTE customer support immediately.

4. Sąranka ir surinkimas

The ESKUTE V100 Electric Bike requires some assembly. Follow these general steps. For detailed visual instructions, refer to any included assembly guides or videos from the manufacturer.

1. Išpakavimas: Atsargiai išimkite visus komponentus iš pakuotės. Išsaugokite pakavimo medžiagas galimam būsimam transportavimui ar grąžinimui.
2. Vairo montavimas: Pritvirtinkite vairą prie vairo iškyšos, užtikrindami, kad jis būtų centruotas ir tvirtai priveržtas.
3. Pedalų montavimas: Install the pedals. Note that pedals are typically marked 'L' for left and 'R' for right, and they thread in opposite directions.
4. Priekinių ratų montavimas: Secure the front wheel, ensuring the brake rotor is correctly aligned with the caliper.
5. Priedo priedas: Install the mudguards and reflectors as per the instructions.
6. Pradinis akumuliatoriaus įkrovimas: Before your first ride, fully charge the battery until the charger indicator light turns green. This ensures optimal battery performance and longevity.
7. Apžiūra prieš važiavimą: Double-check all bolts and quick releases for tightness. Ensure brakes are functioning correctly and tires are inflated to the recommended pressure.

5. Naudojimo instrukcijos

5.1 Įjungimas / išjungimas

• To power on the bike, press and hold the power button on the intelligent center instrument.
• Norėdami išjungti, dar kartą paspauskite ir palaikykite maitinimo mygtuką.

5.2 Važiavimo režimai

The ESKUTE V100 offers multiple riding modes:

• Pedalų pagalbinė sistema (PAS): Provides electric assistance as you pedal. Adjust the assist level using the controls on the display. The 48V 13Ah battery can provide up to 60 miles of range in PAS mode.
• Droselio režimas: Allows you to propel the bike using only the throttle, without pedaling. Remember the safety tip: gently squeeze the brake lever once before starting to engage the motor.
• Rankinis režimas: Važiuokite dviračiu kaip įprastu dviračiu be jokios elektros pagalbos.

5.3 Pavarų perjungimas

Your ESKUTE V100 is equipped with a 7-speed gear system. Use the trigger shifter to change gears, allowing you to adapt to various terrains and inclines efficiently.

5.4 Intelligent Center Instrument

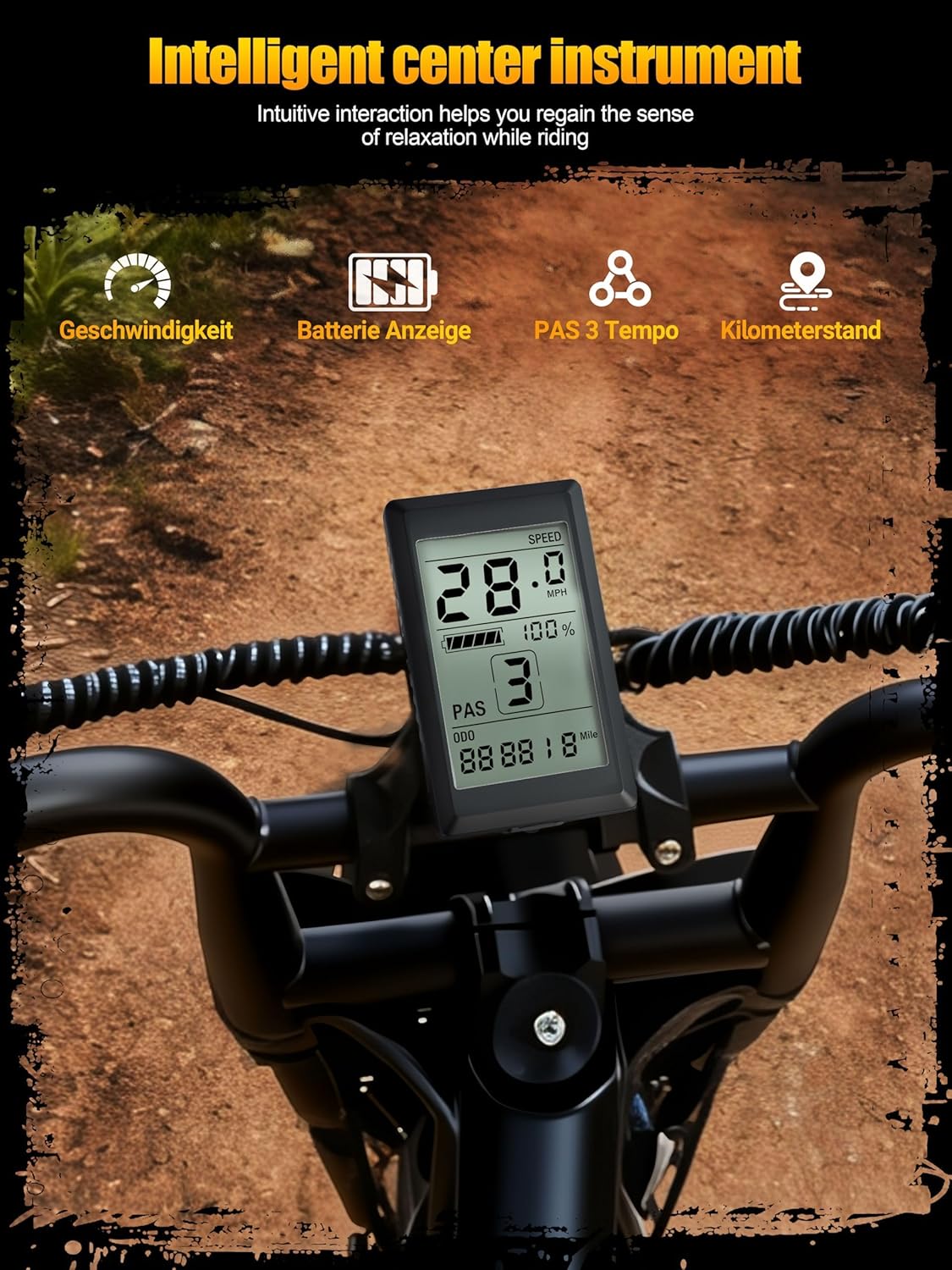

Image: The intelligent center instrument (digital display) of the ESKUTE V100, providing real-time information such as speed, battery charge, and pedal assist level.

The digital display provides crucial information during your ride, including:

• Dabartinis greitis
• Baterijos lygio indikatorius
• Pedalų pagalbos lygis (PAS)
• Odometer/Trip Distance

Refer to the display's specific manual for detailed navigation and settings adjustments.

5.5 Variklis ir našumas

Image: Illustration of the ESKUTE V100's 1500W peak brushless motor, highlighting its power, torque (85Nm), and ability to handle inclines up to 35 degrees.

The ESKUTE V100 is equipped with a 1500W peak brushless motor, providing a top speed of 28 MPH. This motor delivers strong performance for various riding conditions, including uphill climbs.

5.6 Akumuliatoriaus valdymas

Image: The 48V 13Ah battery of the ESKUTE V100, featuring safety certifications (TÜV Rheinland, BMS Intelligent Safety), a maximum range of 60 miles, and IP54 waterproof rating.

The 48V 13Ah (624 Wh) battery provides a substantial range. Always charge the battery in a dry, well-ventilated area. Use only the provided charger. Avoid fully depleting the battery to prolong its lifespan.

5.7 Visureigio savybės

Image: The ESKUTE V100 equipped with 4.0 inch fat tires and dual front suspensions, designed for comfort and stability across diverse terrains including gravel, snow, soil, and city roads.

With 16" x 4.0" fat tires and a dual suspension system (front fork + rear shock), the V100 is designed to provide comfort and stability on various surfaces, from city roads to dirt paths.

6. Priežiūra

Regular maintenance ensures the longevity and safe operation of your ESKUTE V100 Electric Bike.

• Valymas: Reguliariai valykite dviratį naudodami reklamąamp Neplaukite aukšto slėgio srove tiesiai ant elektrinių komponentų.
• Padangų slėgis: Check tire pressure before each ride. Maintain the recommended PSI for optimal performance and safety.
• Stabdžiai: Inspect brake pads and rotors for wear. Ensure brake levers are responsive and provide adequate stopping power. Adjust or replace components as needed.
• Grandinės tepimas: Kad pavarų perjungimas būtų sklandus ir nesusidėvėtų, grandinė turi būti švari ir sutepta.
• Akumuliatoriaus priežiūra: Bateriją laikykite vėsioje, sausoje vietoje. Jei sandėliuojate ilgesnį laiką, įkraukite ją iki 50–70 % kas 1–2 mėnesius.
• Tvirtinimo detalės: Periodiškai patikrinkite visų varžtų, veržlių ir greito atjungimo mechanizmų tvirtumą.

7. Problemų sprendimas

This section addresses common issues you might encounter with your ESKUTE V100 Electric Bike.

For issues not listed here or if solutions do not resolve the problem, please contact ESKUTE customer support.

8. Specifikacijos

Image: The ESKUTE V100 Electric Bike with key dimensions (e.g., wheel height, seat height, overall length) and weight (70.5 lbs) indicated, alongside suggested user height (5'1"-6'3") and maximum load (360 lbs).

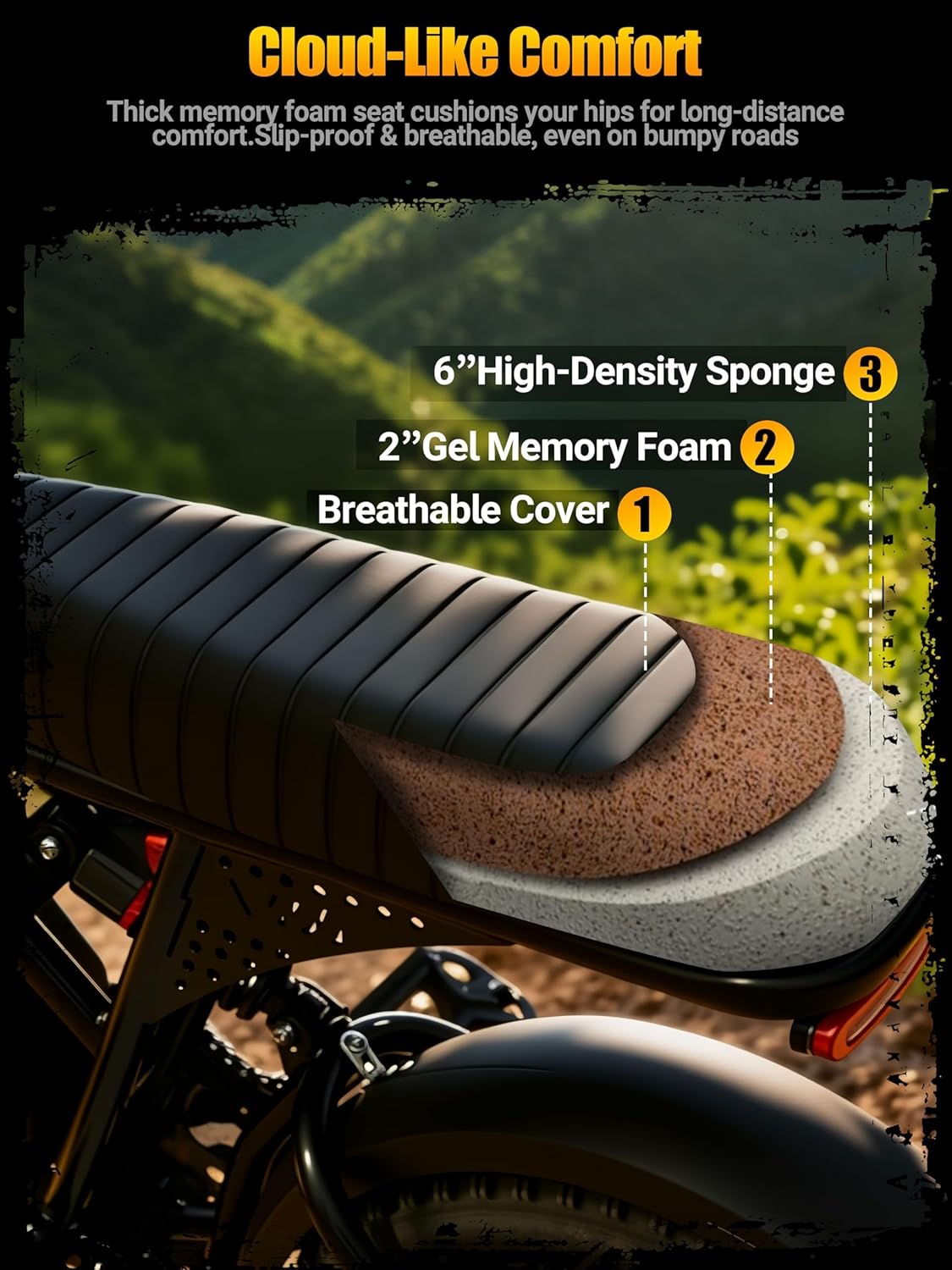

Vaizdas: Išsamus view of the ESKUTE V100's comfortable seat construction, featuring a breathable cover, 2-inch gel memory foam, and 6-inch high-density sponge for enhanced rider comfort.

9. Garantija ir palaikymas

9.1 Informacija apie garantiją

The ESKUTE V100 Electric Bike comes with a 1 metų ribota garantija. This warranty covers manufacturing defects in materials and workmanship. Please retain your proof of purchase for warranty claims. The warranty does not cover damage due to misuse, accidents, normal wear and tear, or unauthorized modifications.

9.2 Pagalba klientams

For technical assistance, warranty claims, or any questions regarding your ESKUTE V100 Electric Bike, please contact ESKUTE customer service. Refer to the official ESKUTE webNaujausią kontaktinę informaciją rasite svetainėje arba pirkimo dokumentuose.

When contacting support, please have your model name (V100) and purchase date readily available.
