SHA CERLIN Queen Size Lift Up Storage Bed Frame - Instruction Manual

1. Produktas baigtasview

The SHA CERLIN Queen Size Lift Up Storage Bed Frame is designed to provide both comfort and functionality. It features a velvet upholstered headboard with integrated LED lighting, a convenient charging station, and a spacious under-bed storage compartment accessible via a hydraulic lift mechanism. This bed frame eliminates the need for a box spring and is engineered for quiet operation.

1 pav.: Gaminio matmenys ir talpos

2. Saugos informacija

• Neviršykite maksimalaus rekomenduojamo lovos rėmo svorio – 800 svarų.
• Be cautious of pinch points when operating the lift-up mechanism. Ensure hands and objects are clear before lifting or lowering.
• Always follow the assembly instructions carefully to prevent instability and ensure proper function.
• Keep the velvet upholstery away from open flames and high heat sources to prevent fire hazards.
• Ensure all electrical connections for the LED lights and charging station are secure and conform to local electrical codes.

3. Pakuotės turinys

Prieš pradėdami surinkimą, patikrinkite, ar yra visi komponentai ir ar jie nepažeisti. Pakuotėje yra:

• Lovos rėmo komponentai
• Galva
• Lift Bars (Hydraulic mechanism)
• Lentelės
• Surinkimo įranga ir įrankiai
• Naudojimo instrukcija

Pastaba: Čiužinys į komplektą neįeina.

4. Surinkimo instrukcijos

The SHA CERLIN bed frame is designed for fast and hassle-free setup. Detailed instructions and labeled parts are included to guide you step by step. No extra tools are required beyond what is provided.

1. Išpakuokite visus komponentus ir padėkite juos ant švaraus, minkšto paviršiaus, kad nesusibraižytumėte.
2. Identify all parts using the provided parts list in the separate assembly guide.
3. Follow the numbered steps in the assembly guide carefully. Ensure all bolts and screws are tightened securely.
4. Pay close attention to the installation of the lifting mechanism and bed slats for proper functionality and stability.

Figure 2: Key Assembly Components

5. Naudojimo instrukcijos

5.1. Lift-Up Storage Mechanism

Lovos rėmas turi hidraulinį pakėlimo mechanizmą, kad būtų lengva pasiekti po lova esančią daiktadėžę.

• Pakelti: Stand at the foot of the bed. Grasp the frame firmly and lift upwards. The hydraulic pistons will assist in raising the mattress platform smoothly.
• Nuleisti: Gently push the mattress platform downwards. The hydraulic pistons will control the descent, preventing it from dropping too quickly.

Atsargiai: Ensure no objects or body parts are in the path of the lifting mechanism when operating to avoid injury. Do not overload the storage area beyond the recommended capacity.

Figure 3: Under-Bed Storage Comparison

Figure 4: Under-Bed Storage in Use

5.2. LED Headboard Lighting

The headboard features integrated LED lighting with multiple modes and color options. Control is available via a remote control or a mobile application.

• Nuotolinio valdymo pultas: Use the provided remote to power on/off, change colors, adjust brightness, and select various lighting modes (e.g., animated flashing, music sync).
• Programėlė mobiliesiems: Download the designated mobile application (refer to the separate LED light manual for QR code or app store details) to access advanced controls and customization options.

Figure 5: LED Headboard Lighting Controls

Figure 6: Headboard with Blue LED Illumination

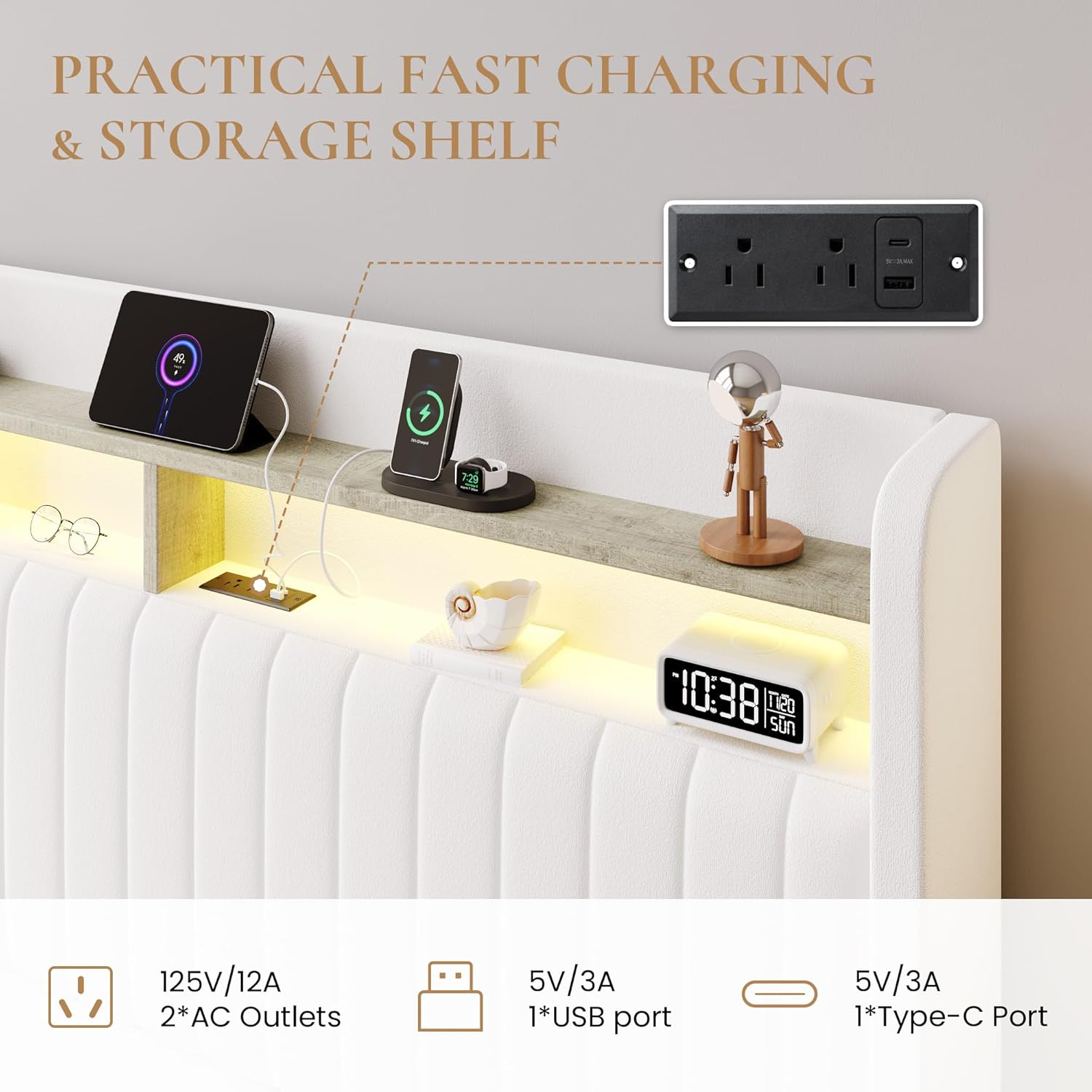

5.3. Įkrovimo stotelė

The 2-tier shelves headboard includes a built-in charging station for your electronic devices.

• USB prievadas: One 5V/3A USB port is available for charging compatible devices.
• C tipo prievadas: Suderinamiems įrenginiams įkrauti yra vienas 5 V / 3 A C tipo prievadas.
• AC lizdai: Two 125V/12A AC outlets are provided for standard electrical plugs.

Pastaba: Įsitikinkite, kad įrenginiai suderinami su pateiktu garsumutage ir srovė. Neperkraukite įkrovimo stotelės.

Figure 7: Headboard Charging Station

5.4. Produkto vaizdo įrašasview

Peržiūrėkite šį vaizdo įrašą, kad gautumėte vaizdinę apžvalgąview of the SHA CERLIN Lift Up LED Storage Bed Frame's features and functionality.

6. Priežiūra

6.1. Cleaning the Velvet Upholstery

• Reguliariai siurbkite aksominį audinį minkštu šepetėliu, kad pašalintumėte dulkes ir šiukšles.
• For spills, blot immediately with a clean, dry cloth. Avoid rubbing, which can damage the pile.
• For stubborn stains, use a mild upholstery cleaner specifically designed for velvet. Test on an inconspicuous area first.
• Nenaudokite stiprių chemikalų ar abrazyvinių valiklių.

6.2. Rėmo ir mechanizmo priežiūra

• Periodically check all bolts and screws to ensure they remain tight. Retighten as necessary to maintain stability.
• Inspect the hydraulic lift mechanism for any signs of wear or damage. If issues are detected, contact customer support.
• Wipe down metal and wood surfaces with a soft, damp audiniu. Venkite per didelės drėgmės.

7. Problemų sprendimas

7.1. Neveikiančios LED lemputės

• Patikrinkite galią: Ensure the LED light strip is properly plugged into a working power outlet.
• Nuotolinio valdymo pulto / programėlės baterija: Replace batteries in the remote control if applicable. Ensure the mobile app is connected via Bluetooth/Wi-Fi.
• Jungtys: Verify all connections between the LED strip, controller, and power adapter are secure.

7.2. Hydraulic Lift Mechanism Issues

• Stiffness/Difficulty Lifting: Ensure the mattress is correctly placed and not obstructing the mechanism. Check for any foreign objects in the way.
• Netolygus kėlimas: Inspect both hydraulic pistons for proper installation and function. If one appears damaged, contact customer support.
• Cypimo triukšmas: Apply a small amount of silicone-based lubricant to the pivot points of the mechanism. Avoid oil-based lubricants on wood or fabric.

7.3. Charging Station Not Functioning

• Maitinimo jungtis: Ensure the charging station's power cable is securely plugged into a live wall outlet.
• Įrenginio suderinamumas: Verify your device is compatible with the USB/Type-C output specifications (5V/3A).
• Grandinės pertraukiklis: Check if the circuit breaker for the outlet has tripped.

8. Specifikacijos

9. Garantija ir palaikymas

For warranty information, please refer to the documentation included with your purchase or contact SHA CERLIN customer service directly. If you encounter any issues or have questions regarding assembly, operation, or maintenance, please reach out to our support team for assistance.

Contact information can typically be found on the product packaging or the official SHA CERLIN websvetainę.
