Zoom PodTrak P4next Podcast Recorder User Manual

1. Įvadas ir pabaigaview

The Zoom PodTrak P4next is a portable podcast recorder designed for high-quality audio capture and production. This device offers a comprehensive solution for podcasters, featuring multiple inputs, advanced audio processing, and flexible recording options. Its compact design and battery power capability make it suitable for both studio and on-the-go recording environments.

Pagrindinės funkcijos:

• Aukščiausia garso kokybė: 4 XLR inputs with -125 dBu EIN for professional-grade recordings.
• Patobulintas perkeliamumas: Lightweight (10.58 oz / 300g) and compact (4.95 x 4.72 x 1.57 inches) for mobile use.
• Pailgintas akumuliatoriaus veikimo laikas: Up to 8.5 hours of continuous recording with lithium batteries.
• Tvirtas patvarumas: Sturdy construction for demanding environments.
• Intuitive Ease of Use: Clear 128 x 64 OLED display and user-friendly controls.
• Integruoti efektai: AI Noise Reduction, Tone, and Compression.
• Universalus ryšys: Phone input for call-in guests, USB audio interface mode.
• Garso pagalvėlės: Customizable sound pads for instant playback.

2. Sąranka

2.1 Įrenginio maitinimas

The PodTrak P4next can be powered in multiple ways:

• AA baterijos: Insert 2 AA batteries into the battery compartment located on the underside of the device.
• USB-C maitinimas: Connect a USB-C cable to the DC 5V port on the side of the unit and to a compatible USB power adapter or power bank.

2.1 pav.: galinis view of the PodTrak P4next, illustrating the battery compartment for 2 AA batteries.

2.2 pav.: šonas view of the PodTrak P4next, highlighting the microSD card slot and USB-C power input.

2.2 Mikrofonų prijungimas

The PodTrak P4next features 4 XLR inputs for connecting microphones. These inputs provide phantom power for condenser microphones.

• Connect your XLR microphones to the corresponding input jacks (1-4) on the top of the device.
• Ensure phantom power is enabled for condenser microphones via the dedicated switches if required.

2.3 pav.: priekis view of the PodTrak P4next, displaying the four XLR microphone inputs at the top.

2.3 Ausinių prijungimas

Four independent headphone outputs are available for monitoring.

• Plug your headphones into the 3.5mm jacks (1-4) located on the front edge of the device.
• Each output has an individual volume control knob.

2.4 pav.: šonas view of the PodTrak P4next, illustrating the four headphone output jacks and their respective volume controls.

2.4 SD kortelės įdėjimas

The PodTrak P4next records directly to an SD card.

• Open the microSD card slot cover on the side of the device.
• Insert a microSD card (up to 1TB supported) until it clicks into place.

2.5 pav.: šonas view of the PodTrak P4next, indicating the microSD card slot for recording media.

2.5 Connecting to Phone/Computer

The device supports external connections for various recording scenarios.

• Telefono įvestis: Use a TRRS cable to connect your smartphone to the dedicated phone input for recording call-in guests.
• USB garso sąsaja: Connect the PodTrak P4next to a computer via USB-C to use it as an audio interface for recording directly to your digital audio workstation (DAW).

Figure 2.6: The PodTrak P4next connected to a smartphone, demonstrating its capability to integrate phone calls into your podcast.

3. Operating the PodTrak P4next

3.1 Pagrindinis įrašymas

Norėdami pradėti įrašymą:

1. Ensure microphones and headphones are connected and powered.
2. Adjust the gain knobs for each microphone input to achieve optimal levels, avoiding clipping.
3. Paspauskite raudoną ĮRAŠAS button to start recording. The button will illuminate.
4. Paspauskite ĮRAŠAS mygtuką dar kartą, kad sustabdytumėte įrašymą.

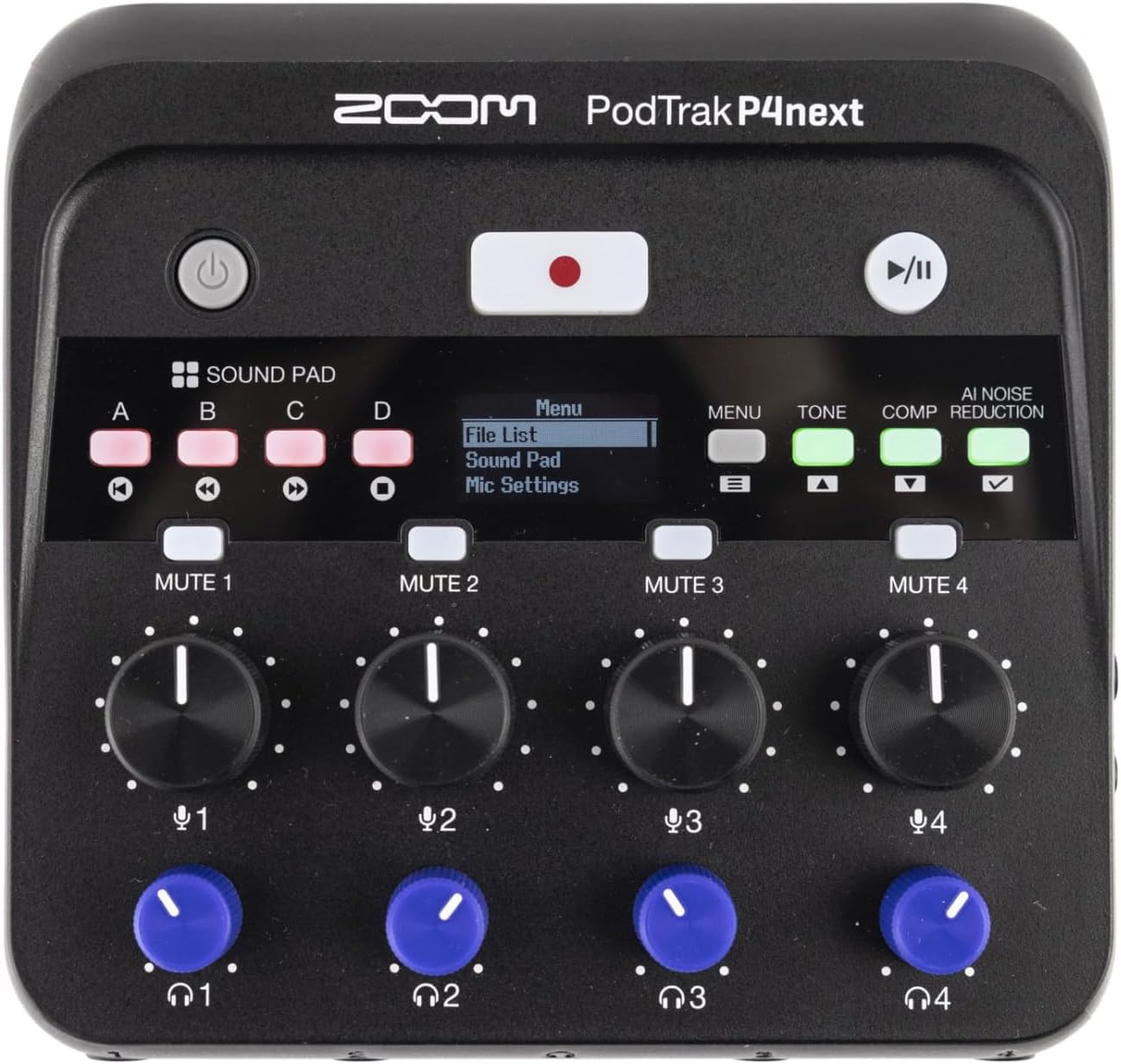

3.1 pav.: Iš ​​viršaus į apačią view of the PodTrak P4next, highlighting the main controls including the record button and input gain knobs.

3.2 Garso pagalvėlės

The four sound pads (A, B, C, D) can be used to trigger pre-recorded audio clips or sound effects during your podcast.

• Press a sound pad button (A, B, C, or D) to play the assigned sound.
• Adjust the volume of the sound pads using the dedicated knob.

3.3 Nutildymo mygtukai

Each microphone input has a dedicated mute button (MUTE 1-4) to quickly silence a participant.

• Paspauskite Nutildyti button for the desired channel to mute it. The button will illuminate to indicate it is muted.
• Paspauskite dar kartą, kad įjungtumėte garsą.

3.4 Audio Effects (AI Noise Reduction, Tone, Comp)

Enhance your audio with built-in effects:

• AI triukšmo mažinimas: Activates intelligent noise cancellation to minimize background distractions.
• Tonas: Adjusts the tonal characteristics of the audio.
• Comp (Compression): Applies compression to even out audio levels.
• Press the respective buttons (AI NOISE REDUCTION, TONE, COMP) to toggle these effects on or off.

3.2 pav. Iš arti view of the PodTrak P4next's control panel, highlighting the AI Noise Reduction, Tone, and Compression effect buttons.

3.5 Recording Phone Calls and USB Audio

The PodTrak P4next allows seamless integration of phone calls and USB audio.

• Connect your phone to the dedicated input using a TRRS cable. The device automatically creates a mix-minus feed to prevent echo for the caller.
• When connected as a USB audio interface, audio from your computer can be routed through the P4next and recorded alongside your microphones.

4. Priežiūra

Proper maintenance ensures the longevity and optimal performance of your PodTrak P4next.

• Valymas: Įrenginio išorę valykite minkšta, sausa šluoste. Venkite abrazyvinių valiklių ar tirpiklių.
• Saugykla: Laikykite įrenginį vėsioje, sausoje vietoje, toliau nuo tiesioginių saulės spindulių ir ekstremalių temperatūrų. Jei ilgesnį laiką laikysite, išimkite baterijas, kad išvengtumėte ištekėjimo.
• Firmware atnaujinimai: Reguliariai tikrinkite oficialią „Zoom“ versiją websvetainę, kurioje rasite programinės įrangos atnaujinimus, kad jūsų įrenginyje būtų naujausios funkcijos ir ištaisytos klaidos.

5. Problemų sprendimas

If you encounter issues with your PodTrak P4next, refer to the following common solutions:

• Nėra galios: Ensure batteries are correctly inserted and charged, or that the USB-C power source is functioning.
• Nėra garso įvesties: Check microphone connections, ensure phantom power is on for condenser mics, and verify gain levels are appropriately set.
• Nėra ausinių garso: Confirm headphones are plugged in correctly and individual headphone volume knobs are turned up.
• Įrašymo problemos: Check if the SD card is properly inserted and has sufficient free space. Ensure the card is formatted correctly (FAT32).
• Echo on Phone Calls: The P4next features automatic mix-minus. Ensure your phone is connected via a TRRS cable to the dedicated phone input.

6. Specifikacijos

7. Oficialus produkto vaizdo įrašas

8. Garantija ir palaikymas

For warranty information, technical support, and additional resources, please visit the official Zoom websvetainėje arba susisiekite su jų klientų aptarnavimo skyriumi. Išsaugokite pirkimo įrodymą garantiniams reikalavimams.

• Palaikymas internetu: Visit the Zoom Store on Amazon
• Produkto registracija: Užregistruokite savo produktą internetu, kad gautumėte atnaujinimus ir pagalbą.
