HEIMAN Smart Carbon Monoxide Detector and Motion Sensor User Manual

1. Produktas baigtasview

The HEIMAN Smart Carbon Monoxide Detector and Motion Sensor is a dual-function device designed to enhance home safety. It provides real-time monitoring for carbon monoxide (CO) levels and detects motion within its coverage area, sending instant notifications to your smartphone via a Wi-Fi connection.

Pagrindinės funkcijos:

• Triple-Certified Safety: ETL Listed, UL2034, and FCC certifications ensure compliance with U.S. safety standards.
• Long-Life Sensor and Battery: Features a CO sensor with a lifespan of up to 10 years and a battery designed to last for 3 years, reducing the need for frequent replacements.
• Integruotas „Wi-Fi“ ryšys: Connects directly to your 2.4 GHz Wi-Fi network for smart home integration without additional hubs or gateways.
• Momentiniai mobiliųjų įrenginių įspėjimai: Utilizes PIR infrared technology for accurate motion detection and sends real-time alerts to your mobile device.
• Programų integravimas: Compatible with popular smart home apps like Tuya Smart and Smart Life for remote monitoring and control.

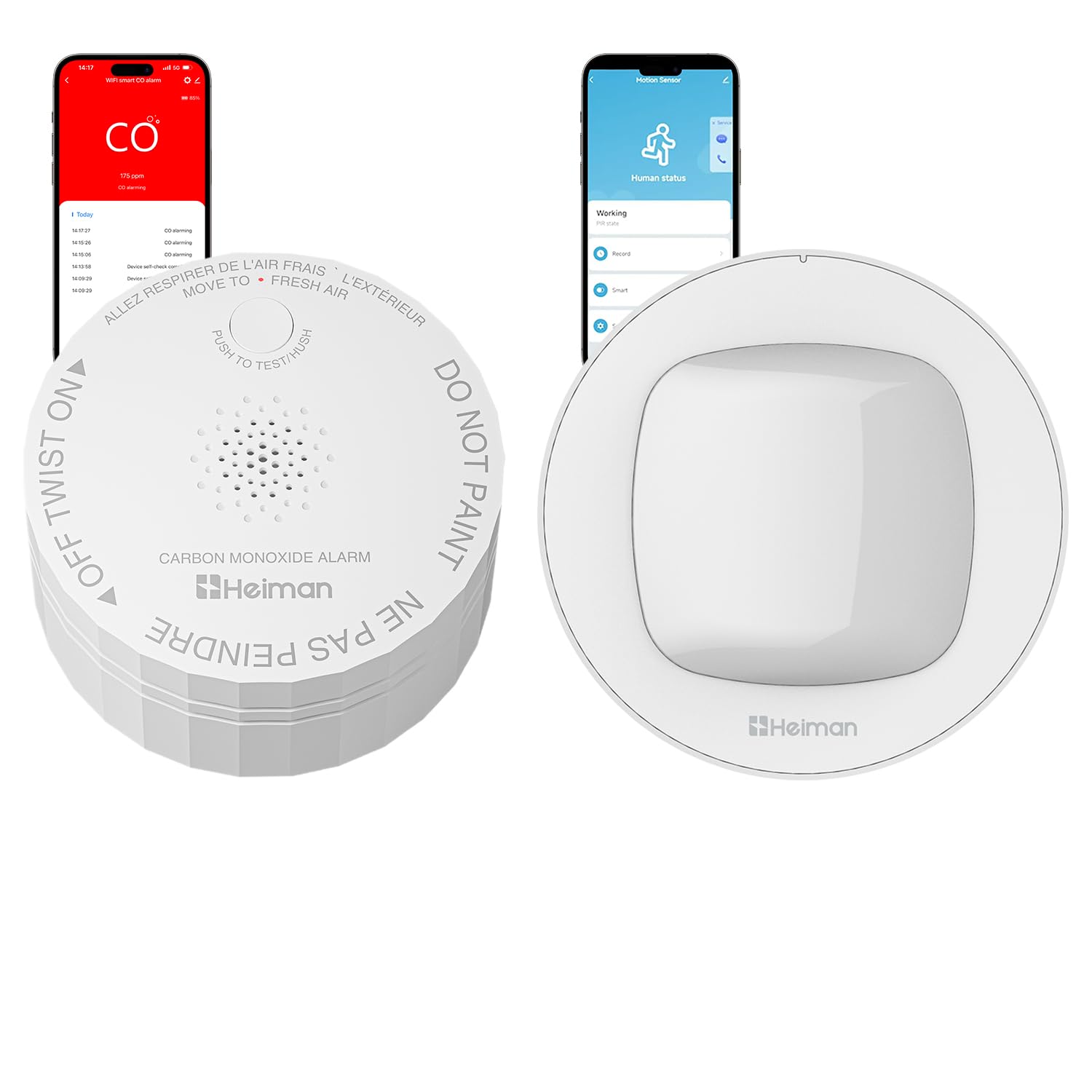

Image 1.1: HEIMAN Smart Carbon Monoxide Detector and Motion Sensor. The image shows the white, circular CO detector with a speaker grille and a 'PUSH TO TEST/HUSH' button, alongside a smartphone displaying a 'CO alarming' notification with a CO concentration of 175 ppm.

2. Saugos informacija ir sertifikatai

This device is designed with safety as a priority and complies with stringent U.S. safety standards. It is crucial to understand the certifications and follow all safety guidelines during installation and operation.

• ETL sąraše: Indicates that the product has been tested and meets applicable safety standards.
• UL2034 4th Ed.: Certified to the U.S. exclusive standard for single and multiple station carbon monoxide alarms.
• FCC sertifikuota: Complies with FCC regulations for electronic devices, ensuring it does not cause harmful interference.

Always ensure the device is installed according to the instructions provided to maintain its safety and effectiveness.

Image 2.1: Certifications for the HEIMAN Smart Carbon Monoxide Detector. The image highlights 'Certified to UL2034 4th Ed. Trusted U.S. Safety Compliance' and displays logos for Red Dot Award, California State Fire Marshal (CSFM), ETL Intertek, and FCC Certification.

3. Diegimas ir sąranka

3.1 Išpakavimas ir pirminė apžiūra

1. Carefully open the packaging and remove the device and all accessories.
2. Inspect the device for any signs of damage. If damaged, do not proceed with installation and contact customer support.
3. Confirm all components listed in the packing list are present.

3.2 Įrenginio montavimas

The device can be mounted on a wall or ceiling. For optimal performance, consider the following:

• Anglies monoksido detektorius: Install at least 5 feet (1.5 meters) from any fuel-burning appliance to avoid false alarms. Mount on a wall at least 6 inches (15 cm) from the ceiling or on the ceiling at least 12 inches (30 cm) from any wall. Avoid dead air spaces, such as peaks of vaulted ceilings or corners.
• Judesio jutiklis: Position the motion sensor in an area where it can cover the desired detection zone without obstructions. Avoid placing it directly facing windows or heat sources that might cause false triggers.

Image 3.1: HEIMAN Motion Sensor mounted on a wall. The image shows the compact, white motion sensor affixed to a wall, indicating its discreet design.

3.3 Prisijungimas prie „Wi-Fi“ ir programėlės

This device connects directly to your home's 2.4 GHz Wi-Fi network. No additional hub is required.

1. Atsisiųskite Tuya Smart or Protingas gyvenimas programėlę iš savo išmaniojo telefono programėlių parduotuvės („iOS“ arba „Android“).
2. Užsiregistruokite arba prisijunkite prie savo paskyros programėlėje.
3. Įsitikinkite, kad jūsų išmanusis telefonas yra prijungtas prie 2.4 GHz Wi-Fi tinklo.
4. Follow the in-app instructions to add a new device. Select the appropriate device type (e.g., 'Sensor' or 'Security Sensor').
5. Power on the HEIMAN device. The indicator light will typically flash to indicate pairing mode.
6. Enter your Wi-Fi network password in the app when prompted.
7. Once connected, the device will appear in your app, and the indicator light will stop flashing or turn solid.

Image 3.2: HEIMAN Motion Sensor with Tuya Smart and Smart Life app logos. The image emphasizes that no hub is required and highlights compatibility with 2.4GHz Wi-Fi networks and the Tuya Smart and Smart Life applications.

Image 3.3: Person checking smartphone for 24/7 WiFi Monitoring alerts. The image shows a person looking at a smartphone displaying a 'device self-check completed' notification from the smart alarm system, illustrating continuous monitoring capabilities.

4. Operacija

4.1 Anglies monoksido aptikimas

The CO detector continuously monitors the air for carbon monoxide. Upon detecting dangerous levels of CO, the device will emit a loud alarm and send an immediate notification to your connected smartphone.

• Signalizacijos indikacija: A loud audible alarm and a flashing LED indicator.
• Testavimo / nutildymo mygtukas: Press the 'TEST/HUSH' button to test the alarm function or to temporarily silence a nuisance alarm (e.g., during cooking, if applicable). Refer to the specific product guide for detailed hush duration.
• Action on Alarm: If the CO alarm sounds, immediately move to fresh air outdoors or open doors/windows. Do not re-enter the premises until the CO source has been identified and corrected, and the area has been ventilated.

4.1 paveikslas: Išsklaidytas view of HEIMAN Carbon Monoxide Detector showing Figaro Sensor. The image illustrates the internal components of the CO detector, highlighting the Figaro sensor for fast and accurate CO detection.

4.2 Judesio aptikimas

The integrated motion sensor uses PIR infrared technology to detect movement within its field of view. When motion is detected, the device will send an instant alert to your smartphone.

• Aptikimo diapazonas: Refer to the product's specific technical specifications for the exact detection range and angle.
• Įspėjimai realiuoju laiku: Receive notifications on your mobile device when motion is detected, allowing for remote monitoring.

Image 4.2: Person receiving real-time motion sensor alarm on smartphone. The image shows a hand holding a smartphone displaying a 'Motion Sensor' status, with concentric circles emanating from the sensor on the wall, symbolizing real-time detection and alerts.

4.3 App Notifications and Features

The companion app provides comprehensive control and monitoring capabilities:

• Įspėjimai realiuoju laiku: Receive push notifications for CO alarms, motion detection, and low battery warnings.
• Aliarmo įrašymas: The app may log alarm events for review.
• Įrenginio bendrinimas: Share access to the device with family members or trusted individuals through the app.
• Įrenginio būsena: View the current status of the detector and sensor, including battery level and connectivity.

5. Priežiūra

5.1 Akumuliatoriaus keitimas

The device is equipped with a battery designed to last for approximately 3 years. A low-battery warning function will alert you when replacement is needed.

1. When a low-battery warning is issued (audible chirp or app notification), prepare a replacement battery.
2. Carefully remove the device from its mounting bracket.
3. Open the battery compartment (refer to the device's physical markings for instructions).
4. Išimkite seną bateriją ir išmeskite ją pagal vietines taisykles.
5. Įdėkite naują bateriją, užtikrindami teisingą poliškumą.
6. Close the battery compartment and re-mount the device.
7. Perform a test using the 'TEST/HUSH' button to confirm proper operation.

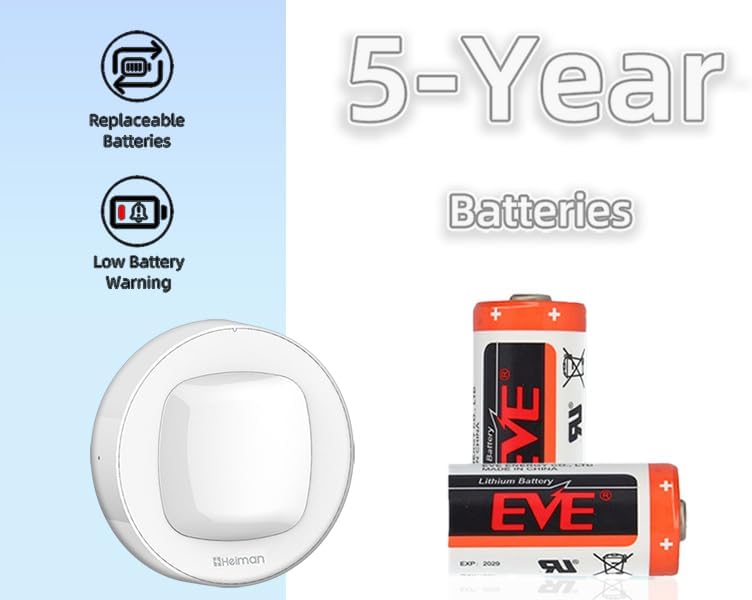

Image 5.1: HEIMAN Motion Sensor with replaceable batteries and low battery warning. The image shows the motion sensor alongside illustrations indicating replaceable batteries, a low battery warning icon, and '5-Year Batteries' with examples of EVE lithium batteries.

5.2 Jutiklio tarnavimo laikas

The carbon monoxide sensor has a lifespan of up to 10 years. After this period, the entire CO detector unit should be replaced to ensure continued accuracy and safety, even if the battery is still functional.

5.3 Reguliarus testavimas

It is recommended to test the CO alarm function weekly or monthly by pressing the 'TEST/HUSH' button. This verifies that the alarm's electronics, battery, and horn are working correctly.

6. Problemų sprendimas

If you encounter issues with your HEIMAN Smart Carbon Monoxide Detector and Motion Sensor, refer to the following common problems and solutions:

• Įrenginys neprisijungia prie „Wi-Fi“:
  • Įsitikinkite, kad jūsų „Wi-Fi“ tinklas yra 2.4 GHz dažnio. Įrenginys nepalaiko 5 GHz tinklų.
  • Check that your Wi-Fi password is entered correctly in the app.
  • Perkelkite įrenginį arčiau „Wi-Fi“ maršrutizatoriaus, kad pagerintumėte signalo stiprumą.
  • Iš naujo paleiskite maršrutizatorių ir bandykite dar kartą susiejimo procesą.
• Nėra programėlės pranešimų:
  • Verify that app notifications are enabled in your smartphone's settings for the Tuya Smart or Smart Life app.
  • Ensure the device is properly connected to Wi-Fi and shows as 'online' in the app.
  • Check the app's settings for specific notification preferences.
• False motion alarms:
  • Adjust the sensitivity settings for the motion sensor in the app, if available.
  • Ensure the sensor is not placed near heat sources (e.g., vents, direct sunlight) or areas with frequent drafts that could trigger it.
  • Avoid placing the sensor where pets can easily trigger it.
• Low battery warning persists after replacement:
  • Ensure the new battery is inserted correctly with the correct polarity.
  • Verify that the battery is fresh and fully charged.
  • Perform a test cycle to reset the device's battery status.
• CO alarm sounds without apparent CO:
  • Kruopščiai išvėdinkite patalpą.
  • Ensure there are no hidden sources of CO (e.g., faulty appliances, vehicle exhaust).
  • If false alarms persist, the sensor may be nearing its end of life or require professional inspection.

If these steps do not resolve the issue, please contact HEIMAN customer support for further assistance.

7. Specifikacijos

• Produkto tipas: Smart Carbon Monoxide Detector and Motion Sensor
• Sertifikatai: ETL Listed, UL2034 4th Ed., FCC
• CO Sensor Lifespan: Iki 10 metų
• Baterijos veikimo trukmė: Iki 3 metų (keičiama)
• Belaidis ryšys: 2.4 GHz „Wi-Fi“ (IEEE 802.11b/g/n)
• Programų suderinamumas: Tuya Smart, protingas gyvenimas
• Judesio aptikimo technologija: PIR infraraudonųjų spindulių
• ASIN: B0G2Q1KGSV
• Pirmą kartą pasiekiama data: 30 m. rugsėjo 2023 d
