Autel MaxiSys MS909S2 Diagnostic Scanner User Manual

1. Įvadas

The Autel MaxiSys MS909S2 is an advanced diagnostic scanner designed for professional automotive technicians. It provides comprehensive vehicle diagnostics, service functions, and programming capabilities. This manual outlines the setup, operation, maintenance, and specifications of the MS909S2 to ensure proper and efficient use.

1.1 vaizdas: Baigtaview of the Autel MaxiSys MS909S2 Diagnostic Scanner highlighting its key features and components.

2. Sąranka

2.1 Išpakavimas ir pradinė apžiūra

Carefully unpack all components from the packaging. Verify that all items listed in the 'What's in the Box' section are present and undamaged. If any items are missing or damaged, contact Autel support immediately.

2.2 Įrenginio įkrovimas

Before first use, fully charge the MS909S2 tablet. Connect the power adapter to the tablet's charging port and plug it into a power outlet. The charging indicator will show the charging status. A full charge ensures optimal performance during diagnostic sessions.

2.3 Connecting the VCI 2 Vehicle Communication Interface

The VCI 2 is essential for communication between the MS909S2 tablet and the vehicle. It can connect via USB, Wi-Fi (5G), or Bluetooth.

1. Maitinimas: Ensure the VCI 2 is powered on. It typically draws power from the vehicle's OBDII port.
2. Transporto priemonės jungtis: Plug the VCI 2 into the vehicle's OBDII port, usually located under the dashboard.
3. Tablet Connection:
   • Bluetooth: On the MS909S2 tablet, navigate to the VCI Manager and select Bluetooth for wireless connection.
   • „Wi-Fi“: Configure the VCI 2 and tablet to connect to the same Wi-Fi network.
   • USB: Connect the VCI 2 to the tablet using the provided USB cable for a direct, stable connection.

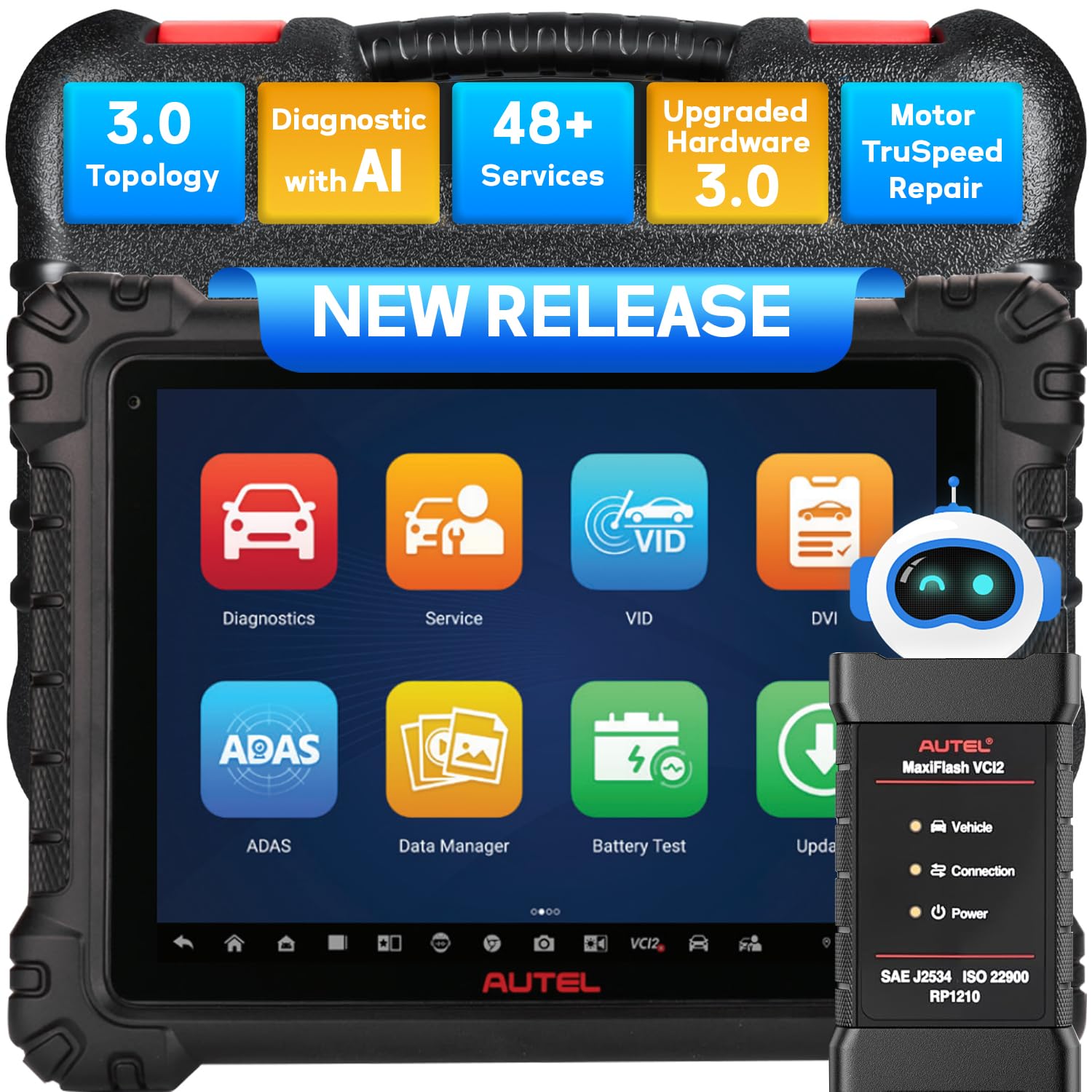

Image 2.1: The Autel MaxiSys MS909S2 tablet and its VCI 2 module, illustrating the connection to a vehicle.

3. Naudojimo instrukcijos

The Autel MaxiSys MS909S2 offers a wide range of diagnostic and service functions. This section details the primary operational aspects.

3.1 Sistemos navigacija

The MS909S2 runs on Android 13.0 with an intuitive touchscreen interface. Navigate through menus by tapping icons and swiping. The main screen provides access to key functions like Diagnostics, Service, VCI Manager, and Updates.

3.2 Vehicle Diagnostics

This function allows for comprehensive scanning of vehicle systems to identify and resolve issues.

• Skaityti / išvalyti gedimų kodus: Retrieve Diagnostic Trouble Codes (DTCs) from all available modules and clear them after repairs.
• View Tiesioginiai duomenys: Monitor real-time data streams from various sensors and components.
• Fiksuoto kadro duomenys: View a snapshot of sensor values at the moment a DTC was set.
• Aktyvus testas (dvipusis valdymas): Perform specific tests on vehicle components to verify their functionality.

Image 3.1: The MS909S2 interface showing core diagnostic capabilities and supported communication protocols.

3.3 Topology Mapping 3.0

Topology Mapping 3.0 provides an OE-style visualization of the vehicle's ECU network. It displays the communication status of each module with color-coding (green for no fault, red for fault, gray for no response). This feature helps quickly identify communication issues and faulty modules.

Image 3.2: Topology 3.0 interface showing the vehicle's network structure and module status.

3.4 Data-Driven Diagnostics with Enhanced PID Analysis

This function enhances data stream analysis for more accurate fault tracing.

• Duomenų vizualizacija: Graph multiple parameters simultaneously to observe relationships and anomalies.
• Tiesioginių duomenų sintezė: Record and compare value changes across different systems.
• Multi-PID Grouping: Analyze related parameters together for specific troubleshooting, such as engine performance or emissions.
• Nuoroda Samplingas: Record and compare selected PIDs for pre- and post-repair analysis.

Image 3.3: Data-Driven Diagnostics interface with enhanced PID analysis and split-screen view.

3.5 Hands-Free Virtual Assistant "MAX"

The integrated virtual assistant, MAX, allows for voice-controlled navigation and execution of tasks. Simply say "Hey MAX" to initiate commands such as opening service menus, starting system scans, or running active tests.

Image 3.4: The MAX virtual assistant feature on the MS909S2.

3.6 Enhanced Split-Screen Diagnostics

This feature allows running two applications simultaneously for efficient cross-referencing. Examples apima viewing Topology alongside Component Location, or performing a Fault Scan while pinging the network.

3.7 Advanced Digital Vehicle Inspection (DVI)

The DVI function provides a multi-point visual inspection of the vehicle. It includes AI-powered image analysis to detect dents and scratches. It can be paired with optional tools like Autel TBE200 (tire tread) and ITS600 (TPMS) for detailed reports.

3.8 J2534 ECU Programming & Coding

The MS909S2 supports J2534 ECU programming and coding, allowing for flashing new software to ECUs, adapting components, and customizing vehicle settings. This requires a stable internet connection and adherence to manufacturer-specific procedures.

3.9 Service Functions (48+)

The device includes over 48 common maintenance and service functions, such as:

• Alyvos atstatymas
• SAS (vairo kampo jutiklio) atstatymas
• EPB (elektroninio stovėjimo stabdžio) atstatymas
• TPMS (padangų slėgio stebėjimo sistemos) atstatymas
• BMS (akumuliatorių valdymo sistemos) atstatymas
• Droselio pritaikymas
• Injektoriaus kodavimas
• Stabdžių nuorinimas
• Pavarų mokymasis
• Pakabos atstatymas
• Ir daug daugiau.

Image 3.5: A selection of the 48+ service functions available on the MS909S2.

3.10 Motor TruSpeed Repair

This feature assists in vehicle repair by providing:

• Component Measurement
• DTC analizė
• Remonto patarimai
• Technical Service Bulletins (TSB)
• Repair Assist
• Atitinkami atvejai

3.11 Other Advanced Functions

• Cloud Report: Generate and store diagnostic reports in the cloud for easy access and sharing.
• Spausdinimas per „Wi-Fi“: Print diagnostic reports directly from the device to a Wi-Fi enabled printer.
• Pre & Post Scan: Perform scans before and after repairs to document vehicle status.
• Battery Test (with BT506): Integrate with the Autel BT506 battery tester for comprehensive battery health analysis.
• Endoscope (with MV108/MV105): Connect an Autel endoscope for visual inspection of hard-to-reach areas.
• Nuotolinis ekspertas: Access remote technical support and assistance.
• AutoAuth for FCA: Provides secure gateway access for 2018 and newer FCA vehicles.
• VAG Guide: Guided functions for Volkswagen Audi Group vehicles.

Image 3.6: Icons representing additional advanced functions of the MS909S2.

4. Priežiūra

4.1 Programinės įrangos naujiniai

Regularly update the MS909S2 software to ensure access to the latest vehicle coverage, bug fixes, and new features. Connect the tablet to a stable internet connection and navigate to the 'Update' section on the main menu. Follow the on-screen instructions to download and install updates.

4.2 Valymas ir laikymas

• Planšetinio kompiuterio ekraną valykite minkštu, nepūkuotu skudurėliu. Venkite abrazyvinių valiklių.
• Keep the device and VCI 2 free from dust, dirt, and moisture.
• Store the MS909S2 in its protective case in a dry, cool environment when not in use.
• Venkite ilgą laiką laikyti prietaisą tiesioginiuose saulės spinduliuose arba itin aukštose temperatūrose.

4.3 Akumuliatoriaus priežiūra

Norėdami pailginti akumuliatoriaus veikimo laiką, venkite dažnai visiškai iškrauti įrenginį. Jei ilgesnį laiką nenaudosite įrenginio, įsitikinkite, kad akumuliatorius įkrautas maždaug iki 50–70 %.

5. Problemų sprendimas

5.1 Įrenginys neįsijungia

• Įsitikinkite, kad akumuliatorius įkrautas. Prijunkite maitinimo adapterį ir bandykite dar kartą.
• Norėdami atlikti griežtą atkūrimą, 10–15 sekundžių palaikykite nuspaudę maitinimo mygtuką.

5.2 VCI 2 Connection Issues

• Verify the VCI 2 is securely plugged into the vehicle's OBDII port and receiving power (indicated by LED lights).
• Check the connection status in the VCI Manager on the tablet. Try reconnecting via Bluetooth, Wi-Fi, or USB.
• Ensure the vehicle's ignition is on (Key On, Engine Off).
• Confirm that the VCI 2 firmware is up to date.

5.3 Programinės įrangos užstrigimas arba lėtas veikimas

• Uždarykite nereikalingas programas, veikiančias fone.
• Clear cache data from the device settings.
• Perform a software update to ensure the latest optimizations.
• If issues persist, consider a factory reset (back up important data first).

5.4 Diagnostic Communication Errors

• Patikrinkite, ar įjungtas automobilio uždegimas.
• Ensure the correct vehicle make, model, and year are selected in the software.
• Check for any physical damage to the OBDII cable or VCI 2.
• Try connecting to a different vehicle to rule out vehicle-specific issues.

6. Specifikacijos

Image 6.1: Detailed comparison of MS909S2 specifications against the previous MS909 model.

7. Garantija ir palaikymas

7.1 Informacija apie garantiją

The Autel MaxiSys MS909S2 typically comes with a manufacturer's warranty covering defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official Autel website for specific warranty terms and duration. Keep your proof of purchase for warranty claims.

7.2 Techninė pagalba

For technical assistance, software issues, or operational questions, please contact Autel customer support. Support contact information can usually be found on the official Autel website or within the device's 'About' section. Online resources, FAQs, and forums may also be available.
