KATOOL 12000lbs 4.0HP Single Point Release 2 Post Car Lift M120SD User Manual

1. Įvadas

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your KATOOL M120SD 12000lbs 4.0HP Single Point Release 2 Post Car Lift. Please read this manual thoroughly before installation and use to ensure proper function and to prevent injury or damage. Keep this manual for future reference.

The KATOOL M120SD is designed for professional and serious home mechanics, offering a robust 12,000-lb lifting capacity for a wide range of vehicles. Its high-efficiency 4.0HP motor ensures fast and consistent operation, while the single-point locking system enhances safety and streamlines the lifting process.

2. Saugos informacija

Your safety is paramount. Always adhere to all safety warnings and instructions provided. Failure to do so can result in serious injury or death.

• Ensure the lift is installed on a level, solid concrete foundation capable of supporting the lift's weight and maximum load.
• Never exceed the maximum lifting capacity of 12,000 lbs (5500 kg).
• Always engage the safety locks before working under a raised vehicle.
• Ensure all personnel are clear of the lift before raising or lowering a vehicle.
• Use appropriate lifting points on the vehicle as specified by the vehicle manufacturer.
• Regularly inspect all cables, chains, and hydraulic components for wear or damage.
• Laikykite darbo vietą švarią ir be kliūčių.

Image: KATOOL 2 Post Car Lift highlighting its 12000 lbs capacity and single point lock release for enhanced security.

Image: Close-up of the thickened and sturdy lift components, including reinforced wire ropes, indicating strong lifting force and anti-falling parts.

3. Produktas baigtasview

The KATOOL M120SD 2 Post Car Lift is engineered for durability and performance, featuring:

• Industrial-Grade Strength: 12,000-lb heavy-duty lifting capacity for a wide range of vehicles.
• Galingas 4.0 AG variklis: Ensures fast, smooth, and consistent lifting operations.
• Single-Point Locking System: Easily engage and disengage all mechanical locks from one convenient location, enhancing safety and efficiency.
• Optimal Working Access: A maximum lifting height of 70.87 inches (1800mm) provides ample space for comfortable under-vehicle work.
• Low-Vehicle Compatibility: Exceptionally low 4.25-inch minimum height of the swing arms accommodates low-profile vehicles without damage.
• Adjustable Lift Arms and Pads: Versatile for various vehicle types and lifting points.

Image: The KATOOL M120SD 2 Post Car Lift with a vehicle raised, demonstrating its operational capacity.

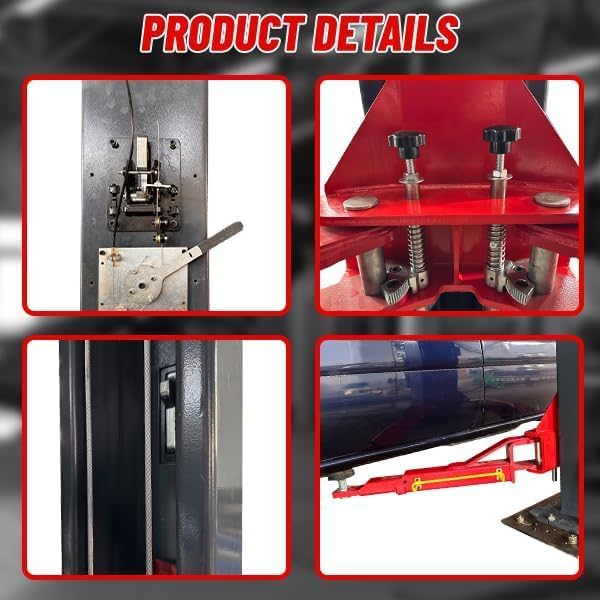

Image: Close-up of the single point lock release mechanism, showing the lever and cable system for engaging and disengaging locks.

Image: Close-up of the adjustable lift arm and pad positioned under a vehicle's chassis, illustrating low-vehicle compatibility.

4. Sąranka

Proper setup is crucial for the safe and effective operation of your KATOOL M120SD car lift. Professional installation is highly recommended.

4.1 Unloading and Site Preparation

• Buyer is responsible for unloading the lift. A forklift is required for safe handling.
• Ensure the installation site has a suitable concrete foundation (minimum 4 inches thick, 3000 PSI, and properly cured).
• Verify adequate overhead clearance for the lift's maximum height and the vehicles to be serviced.

4.2 Surinkimas ir montavimas

1. Column Placement: Position the two columns according to the provided dimensions, ensuring they are plumb and level.
2. Overhead Beam Installation: Securely attach the overhead beam connecting the two columns.
3. Hidraulinis maitinimo blokas: Mount the hydraulic power unit to one of the columns. Connect the hydraulic lines, ensuring all fittings are tight and leak-free.
4. Cable and Chain Installation: Carefully route the lifting cables and chains through the columns and over the pulleys as per the diagram. Ensure proper tensioning.
5. Saugos kabelio montavimas: Install the safety cables, ensuring they are correctly routed and connected to the single-point release mechanism.
6. Rankenos surinkimas: Attach the adjustable lift arms to the carriages. Ensure the arm restraints function correctly.
7. Elektros jungtis: Connect the 4.0HP motor to a dedicated 220V power supply, following all local electrical codes.
8. Pradinis bandymas: Perform several test cycles without a vehicle to ensure smooth operation and proper engagement of safety locks.

Image: Technical drawing illustrating the overall dimensions of the KATOOL 2 Post Car Lift, including width and height measurements.

5. Naudojimo instrukcijos

Follow these steps for safe and effective operation of your KATOOL M120SD car lift:

5.1 Preparing the Vehicle

• Position the vehicle centrally between the lift columns.
• Ensure the vehicle's parking brake is engaged and the transmission is in park (automatic) or gear (manual).
• Adjust the lift arms to reach the vehicle's designated lifting points. Use the adjustable lift pads to ensure secure contact.

5.2 Raising the Vehicle

1. Press and hold the 'UP' button on the hydraulic power unit.
2. Raise the vehicle slowly until the lift pads make firm contact with the vehicle's lifting points.
3. Check the stability of the vehicle on the lift arms. Adjust if necessary.
4. Continue raising the vehicle to the desired working height.
5. Once at the desired height, lower the lift slightly until the safety locks engage. Listen for the audible click of the locks.
6. Release the 'UP' button. The vehicle is now resting on the safety locks.

5.3 Transporto priemonės nuleidimas

1. Ensure the area beneath the vehicle is clear of tools and personnel.
2. Slightly raise the lift by pressing the 'UP' button to disengage the safety locks.
3. Pull the single-point lock release lever to disengage all safety locks.
4. Press and hold the 'DOWN' lever to slowly lower the vehicle.
5. Guide the lift arms away from the vehicle once it is fully on the ground.

6. Priežiūra

Regular maintenance ensures the longevity and safe operation of your KATOOL M120SD car lift.

• Kasdien: Inspect cables, chains, and hydraulic hoses for any signs of wear, fraying, or leaks. Check for proper functioning of safety locks.
• Kas savaitę: Lubricate all moving parts, including pulleys, chains, and arm pivot points, with appropriate grease or oil. Check hydraulic fluid level and top up if necessary.
• Kas mėnesį: Inspect anchor bolts for tightness. Check for proper synchronization of lifting carriages. Clean the lift columns and arms.
• Kasmet: Have a qualified technician perform a comprehensive inspection of the entire lift system, including structural integrity, hydraulic system, and electrical components.

7. Problemų sprendimas

This section addresses common issues you might encounter with your car lift.

8. Specifikacijos

9. Garantija ir palaikymas

For warranty information, please refer to the documentation included with your product at the time of purchase. For technical support, parts, or service inquiries, please contact KATOOL customer service through the retailer where the product was purchased or visit the official KATOOL websvetainę.

In case of item damage upon delivery, please take photos and contact customer service immediately. Mark "damaged" on the receipt before accepting delivery.
