Įvadas
Thank you for choosing the EZAIoT WiFi Battery-Powered Smart Thermostat. This device is designed to provide intelligent and efficient control over your gas boiler heating system, offering convenience through app control and voice commands. Please read this manual carefully before installation and operation to ensure proper use and safety.
Saugos informacija
ĮSPĖJIMAS: This device is designed EXCLUSIVELY for LOW VOLTAGE systems (≤30V DC). Connecting to a 230V mains voltage will cause irreversible damage to the product and poses a severe safety hazard. Always verify your system's compatibility before installation.
This thermostat provides a clean NO/NC/COM dry contact output suitable for compatible gas, pellet, hybrid boilers, and heat pumps. Ensure all wiring is performed by a qualified professional if you are unsure.
Use only alkaline AA/LR6 or Ni-MH rechargeable batteries of good quality, strictly observing polarity (+/-). Do not mix old and new batteries or different types of batteries.

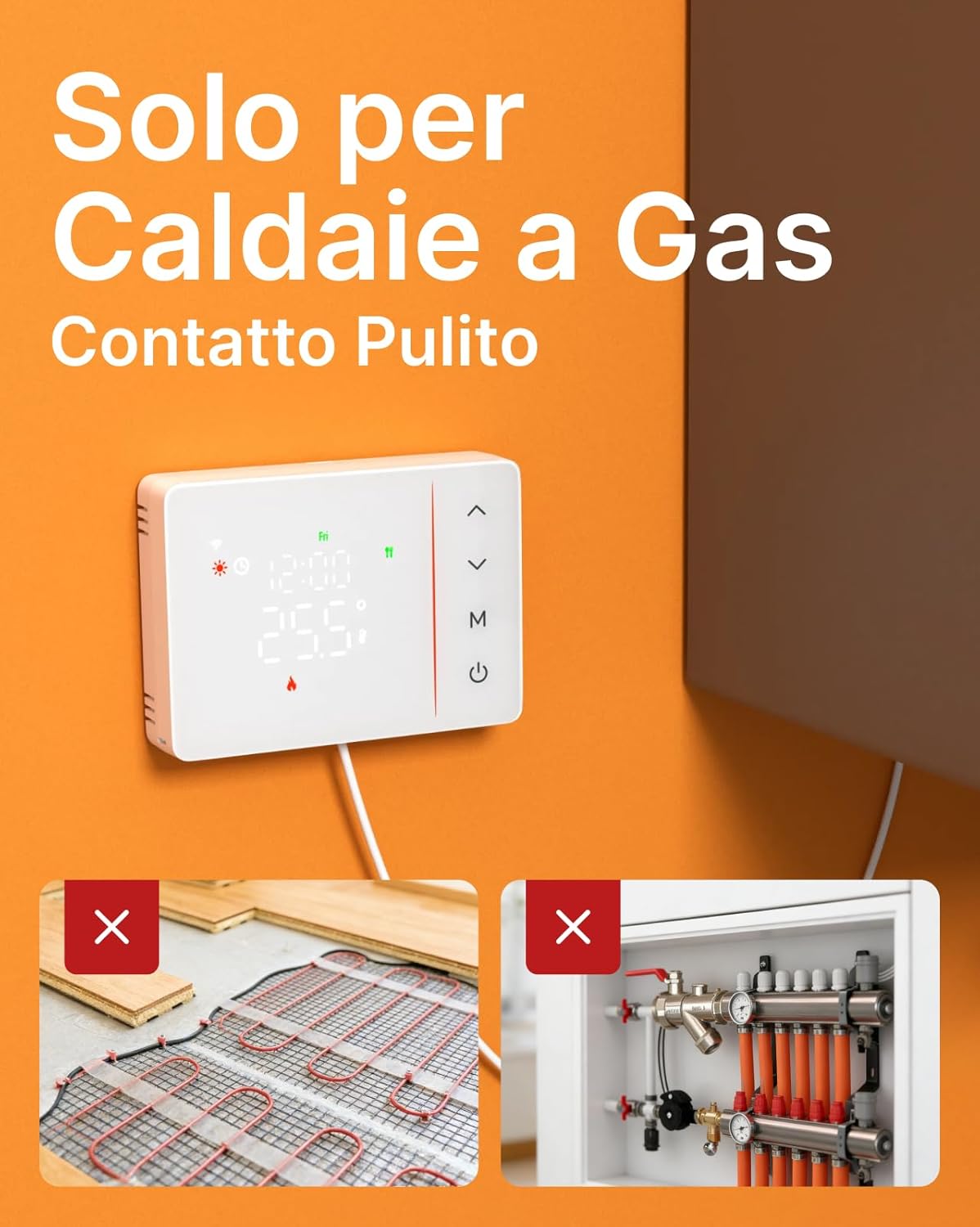

Image: The thermostat is designed for gas boilers and clean contact systems only. It is not compatible with underfloor heating or manifold systems, as indicated by the crossed-out images.
Produktas baigtasview
The EZAIoT Smart Thermostat features a clear digital display and intuitive controls for easy temperature management. It integrates seamlessly into standard 502/503 wall boxes.
Vaizdas: priekis view of the thermostat, displaying current temperature, time, and mode icons. Control buttons are located on the right side.
Vaizdas: Galinis view of the thermostat, illustrating the battery compartment for four AA batteries and the clean contact wiring terminals (NO/NC/COM). Dimensions for 502/503 box compatibility are also shown.
Sąranka
1. Montavimas
The thermostat is designed for DIY installation and is compatible with standard recessed wall boxes (503/502, with hole spacing of 60-85 mm). No drilling, complex wiring, or electrician intervention is typically required for mounting.
- 1 veiksmas: Nuimkite termostatą nuo pagrindo.
- 2 veiksmas: Fix the base to the wall box and connect the boiler wires to the clean contact terminals (NO/NC/COM). Ensure power is disconnected before wiring.
- 3 veiksmas: Insert 4 AA batteries into the thermostat, observing correct polarity (+/-).
- 4 veiksmas: Attach the thermostat unit to its base.
Image: Visual guide showing four steps for simple installation: removing the thermostat from its base, fixing the base and connecting wires, inserting batteries, and reattaching the thermostat.
2. Akumuliatoriaus įdėjimas
The thermostat requires 4 AA batteries (not included). Use only high-quality alkaline AA/LR6 or Ni-MH rechargeable batteries. An automatic alert will be sent to your smartphone when the battery charge drops below 20%.
3. Programėlės prijungimas („Tuya Smart“ / „Smart Life“)
The thermostat uses 2.4GHz/5GHz auto-switching dual-band WiFi for a stable connection. Download the Tuya Smart or Smart Life app (available in English) from your smartphone's app store. Follow the in-app instructions to connect your thermostat to your home WiFi network. This allows for remote control and real-time notifications on temperature, connection status, and battery level.
Naudojimo instrukcijos
1. Pagrindinė operacija
The thermostat features a professional sensor with 0.1°C step adjustment and adjustable hysteresis, minimizing temperature fluctuations and unnecessary boiler activations. You can manually adjust the temperature directly on the device or via the app.
Image: The thermostat mounted on a wall, showing a precise temperature reading of 25.5°C, indicating its accurate control capabilities.
2. Programming (7 Days x 6 Levels)
Customize your heating schedule with independent programming for each day of the week. You can set up to 6 different time periods and temperatures per day. This allows for tailored comfort and energy saving.

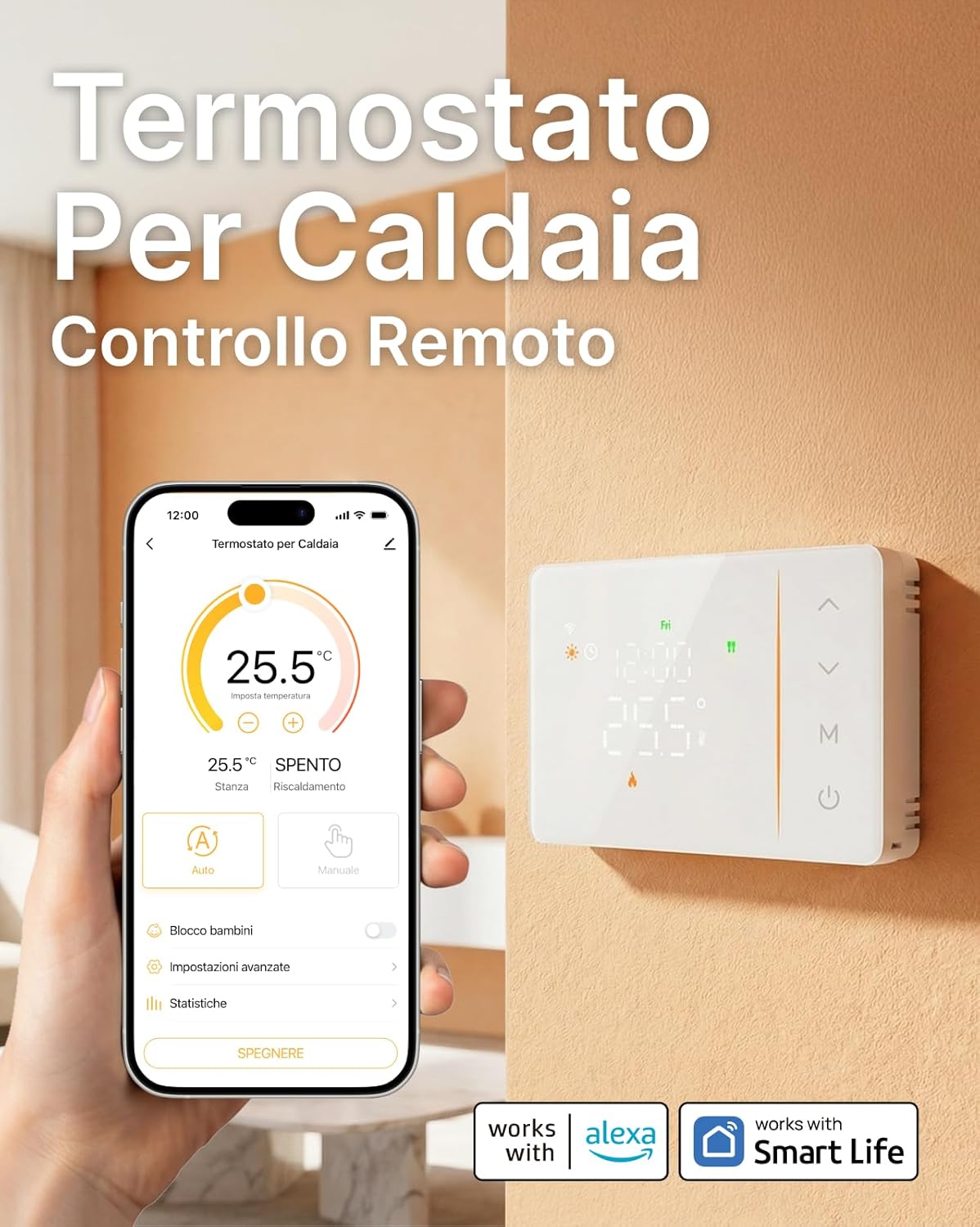

Image: A smartphone displaying the Tuya/Smart Life app interface for the thermostat, showing remote temperature control and scheduling options. The thermostat is visible on the wall in the background.
Image: The physical thermostat unit positioned beside a smartphone displaying its corresponding control application, highlighting the integration of physical and digital control.
3. Valdymas balsu
The thermostat is compatible with Amazon Alexa and Google Assistant. Link your device through the Tuya Smart or Smart Life app to enable voice commands for temperature adjustments and status checks.
4. Užraktas nuo vaikų
Activate the integrated Child Lock feature to disable physical controls on the device, preventing accidental changes by children.
5. Anti-Freeze Protection
The automatic Anti-Freeze function maintains a minimum temperature above 5°C to protect your heating system and pipes from freezing during extended absences. This feature ensures complete electrical isolation for maximum protection.
Priežiūra
The primary maintenance task is battery replacement. When the app notifies you of low battery (below 20%), replace all four AA batteries with new, high-quality alkaline or Ni-MH rechargeable batteries. Ensure correct polarity during installation.
Trikčių šalinimas
- Nėra ekrano / įrenginys neįsijungia: Check battery installation and ensure polarity is correct. Replace batteries if they are depleted.
- „Wi-Fi“ atjungimas: Ensure your home WiFi network (2.4GHz) is active and the signal strength is adequate. Restart your router and the thermostat if necessary. Re-pair the device with the Tuya Smart/Smart Life app.
- Neteisingas temperatūros rodmuo: Allow the thermostat to stabilize for a few hours after installation. Ensure it is not exposed to direct sunlight, drafts, or heat sources that could affect its sensor.
- Boiler Not Responding: Verify the wiring connections to the boiler (NO/NC/COM). Ensure the boiler is powered on and functioning correctly. Check the thermostat's mode (e.g., heating mode).
- Programos valdymo problemos: Įsitikinkite, kad jūsų išmanusis telefonas veikia su interneto ryšiu. Atnaujinkite „Tuya Smart“ / „Smart Life“ programėlę į naujausią versiją.
Specifikacijos
| Funkcija | Specifikacija |
|---|---|
| Prekės ženklas | EZAIoT |
| Modelis | V1BW |
| Spalva | Baltas |
| Medžiaga | Akrilnitrilo butadieno stirenas (ABS) |
| Maitinimo šaltinis | 4 x AA 1.5 V baterijos (į komplektą neįeina) |
| ttage Suderinamumas | Žemas tomastage ≤30V DC (Dry Contact) |
| Ryšys | WiFi 2.4GHz/5GHz (Auto-switch) |
| Programų valdymas | Tuya Smart / Smart Life |
| Balso asistentas | Alexa, „Google“ padėjėjas |
| Programavimas | 7 Days, up to 6 periods per day |
| Temperatūros tikslumas | 0.1°C |
| Ypatingos savybės | Programmable, Child Lock, Anti-Freeze |
| Matmenys | 13.6 x 9.8 x 3.4 cm |
| Svoris | 200 g |
Garantija ir palaikymas
For warranty information, please refer to the terms and conditions provided at the time of purchase or visit the official EZAIoT website. For technical support, product inquiries, or assistance with installation and operation, please contact:
- El. paštas: support@ezaiot.com
- ES atstovas: EUREPSTAR GMBH, Schlüterstr. 3, 85057 Ingolstadt, Germany
Please have your product model (V1BW) and purchase details ready when contacting support.
